Step 4: remove the existing ac current transducers – Rockwell Automation 20P PowerFlex DC Drive - Frame B AC Current Transducers User Manual
Page 10
10
PowerFlex® DC Drive - Frame B AC Current Transducers

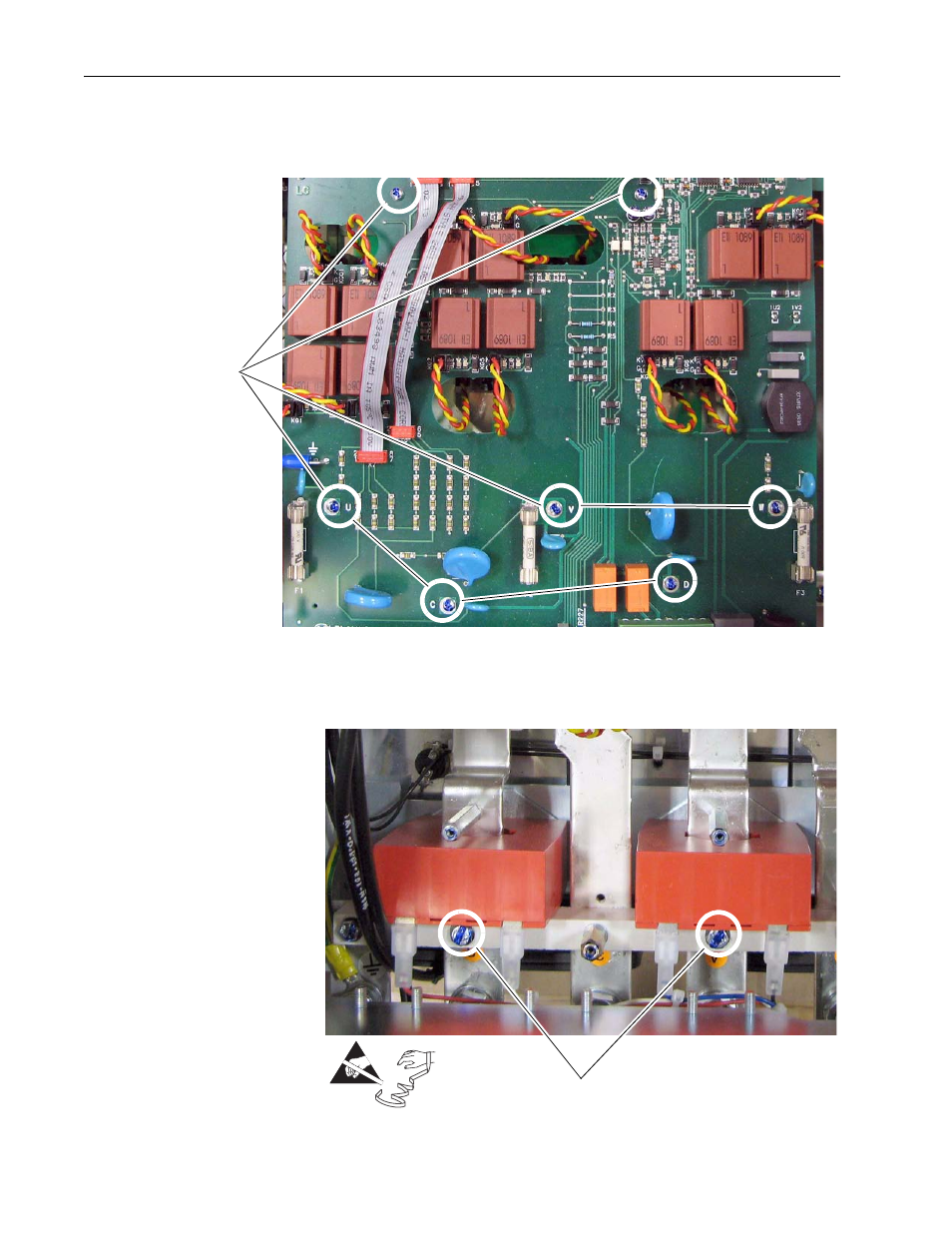

12. Remove the seven screws that secure the board to the stand-offs on the
drive chassis and remove the boards from the drive.
Step 4: Remove the
Existing AC Current
Transducers
1. Remove the bolts and washers that secure the U and V phase AC input
bus bars to the isolation bar.
Remove screws
Note: Regenerative
drive shown
=
Remove bolts and washers
Note: Regenerative
Drive Shown
