SRP-270

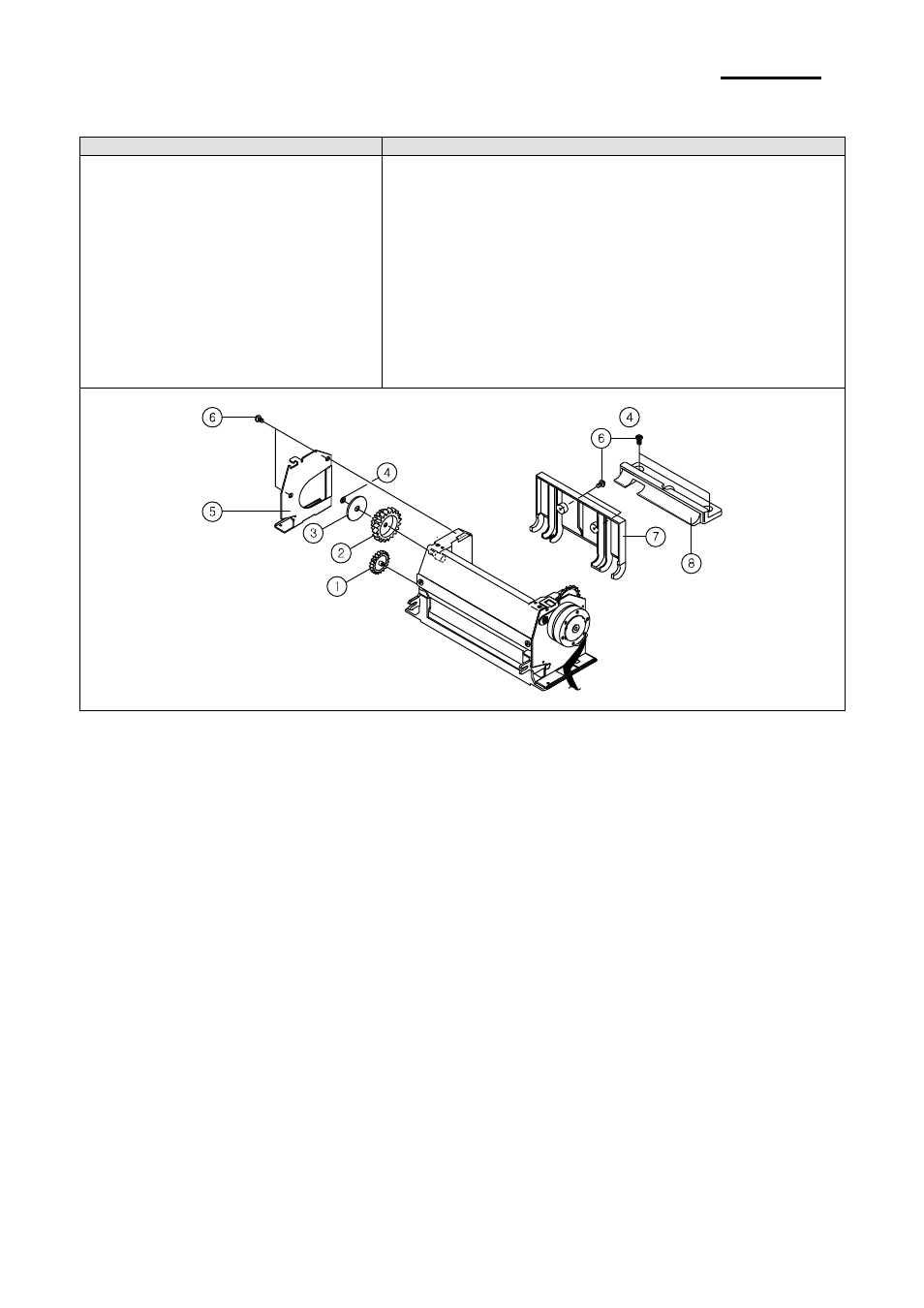

8-8-2-2 Base Paper Feed Assy - #2
Name of Parts
Method and Procedure
①
GEAR TAPE UP
②
GEAR TU PULLEY
③
WASHER BELT GUIDE
④
WASHER (2.6*5*0.5)
⑤
BRACKET PF L
⑥
SCREW TAPPING (M3*6, 6EA)
⑦
GUIDE PAPER A
⑧
GUIDE PAPER B
1. Make BASE PAPER FEED stand (left side), and then, insert
GEAR TAPE UP to fit SHFAT(D
①
-CUT) (long side is
downward). Next, grease SHFAT and teeth of GEAR with HG-
31S.
2. Set GEAR TU
②
PULLEY onto SHAFT and insert WASHER
③
BELT GUIDE. Next fix with WASHER.
④
3. Set BRACKET PF L onto BASE PAPE
⑤
R FEED boss, and
then, tighten two SCREW TAPPING.
⑥
4. Rotate BASE PAPER FEED and set GUIDE PAPER A to
⑦
the back face, and then, tighten two SCREW TAPPING step
⑥
by step.
5. Make BASE PAPER FEED stand and set GUIDE PAPER B
⑧
to it, and then, tighten two SCRE
⑥
W TAPPING step by step.
