3-6 Cash Drawer Specifications
3-6-1 Cash Drawer Cable
Ferrite Core : 1 turn (OP-18E : 18.2 x 12.5 x 25.5)

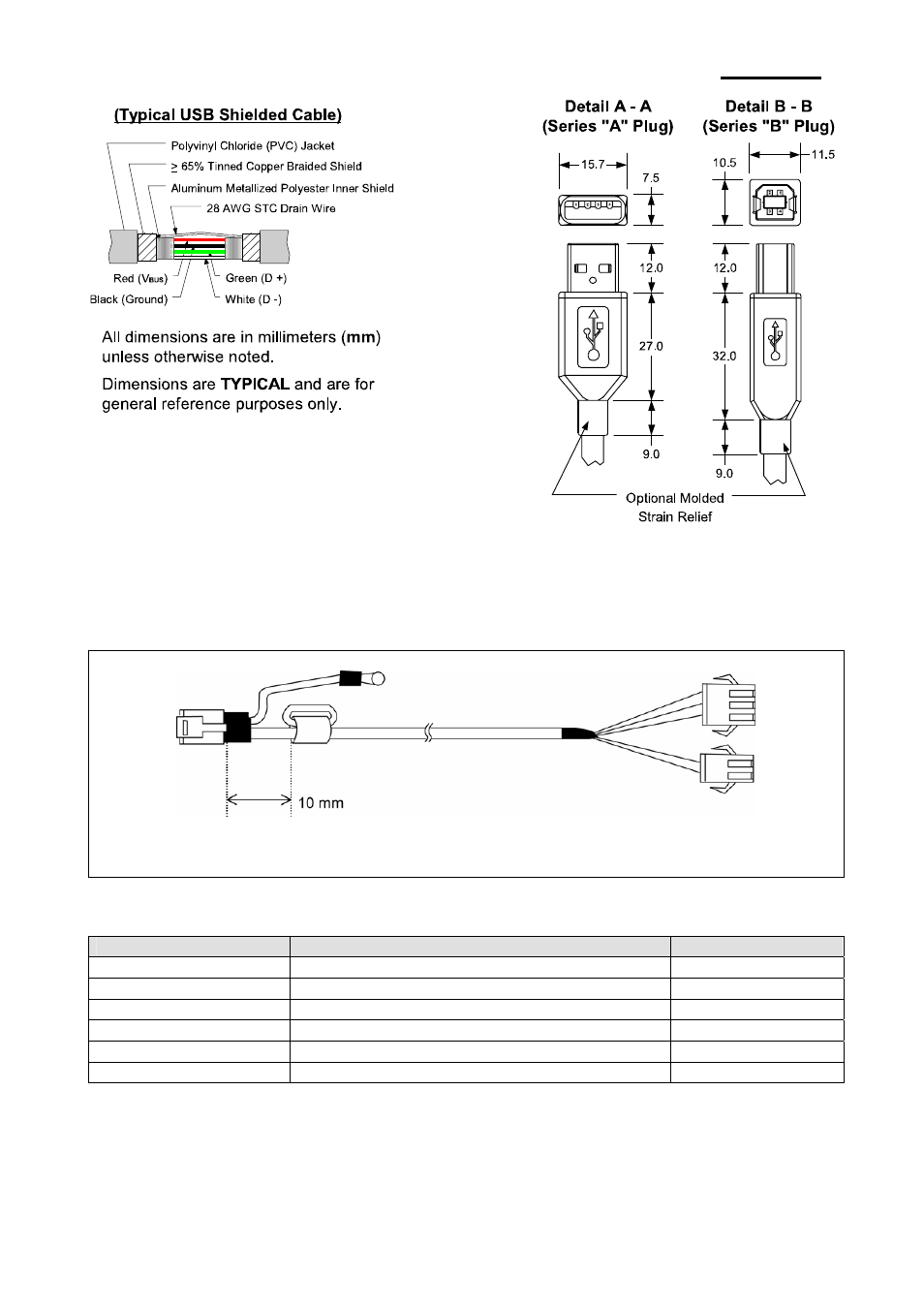

Figure 3-12 Cash Drawer Cable
3-6-2 Cable Connection
Pin No.
Description
Direction
1 Frame
GND
-
2
Cash Drawer Driver Signal #1
Output
3
Drawer Open / Close Signal
Input
4 +24V
-
5
Cash Drawer Driver Signal #2
Output
6 Signal
GND
-
Table 3-23 Cash Drawer Cable Connection
※
Note : +24V is always output through pin 4 during power on.
