8-1 sub-assemblies, Srp-270, Rev. 3.02 – BIXOLON IMPACT PRINTER SRP-270 User Manual
Page 75

Rev. 3.02
- 75 -
SRP-270

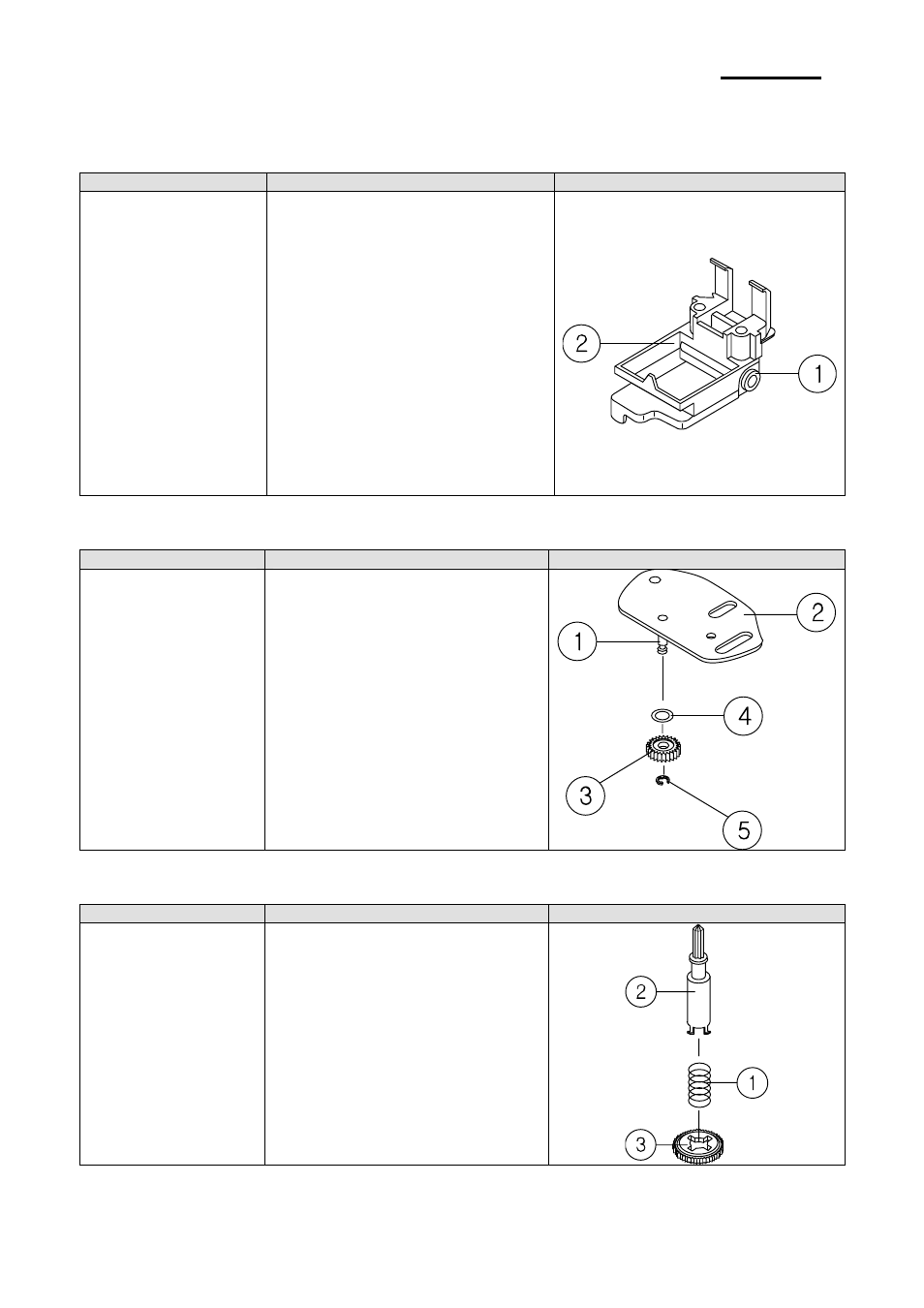

8-8-1 Sub-assemblies
8-8-1-1 Carriage Head Assy
Name of Parts
Method and Procedure
Drawings
BE
①
RIN G FE (2ea)
CARRIAGE HEAD
②
1. At first, set the BERIN G FE
①
to be inserted into the shaft of JIG.
* Notice: The direction of insert
is to locate frange downward.
2. And then, set a CARRIAGE HEAD
②
to be inserted into the shaft of JIG.
3. Next , set other BERIN G FE
①
to be
inserted into the shaft of JIG.
* Notice: The direction of insert is to
locate frange upward.
4. Lastly, insert two BERIN G FE
①
in
the CARRIAGE
HEAD
②
by pushing
the handler of Lever Press.
< Check Point>
Check improper insertion of BERIN
①
G FE and fraction of CARRIAGE
②
HEAD.
8-8-1-2 Lever Ribbon Feed Assy
Name of Parts
Method and Procedure
Drawings
SHAFT REDUCTION
①
“B”
LEVER RIBON FEED
②
GEAR REDUCTION
③
“B”
WAVE WASHER
④
E
⑤
-RING (ø2.5)
1. At first, Grease SHAFT on the
①
②
LEVER RIBBON FEED with HG-
31S.
2. And then, Assemble ④WAVE
WASHER and Grease WAVE
④
WASHER.
3. Last, assemble GEAR
③
REDUCTION “B” and E
⑤
-RING
(ø2.5).
8-8-1-3 Ribbon Feeder Assy
Name of Parts
Method and Procedure
Drawings
SPRING RIBBON
①
FEEDER
RIBBON FEEDER
②
GEAR R
③
IBBON
FEEDER
1. Grease SPRING RIBBON
①
FEEDER with HG-31S and insert
that into RIBBON FEEDER.
②
2. And then, insert GEAR RIBBON
③
FEEDER to fit the section of hook.
