23

throttle up

Increase speed and
altitude.

throttle down

Decrease speed and
altitude.

throttle fully down

Land.

yaw left

yaw right

Rotate
counterclockwise.

Rotate
clockwise.

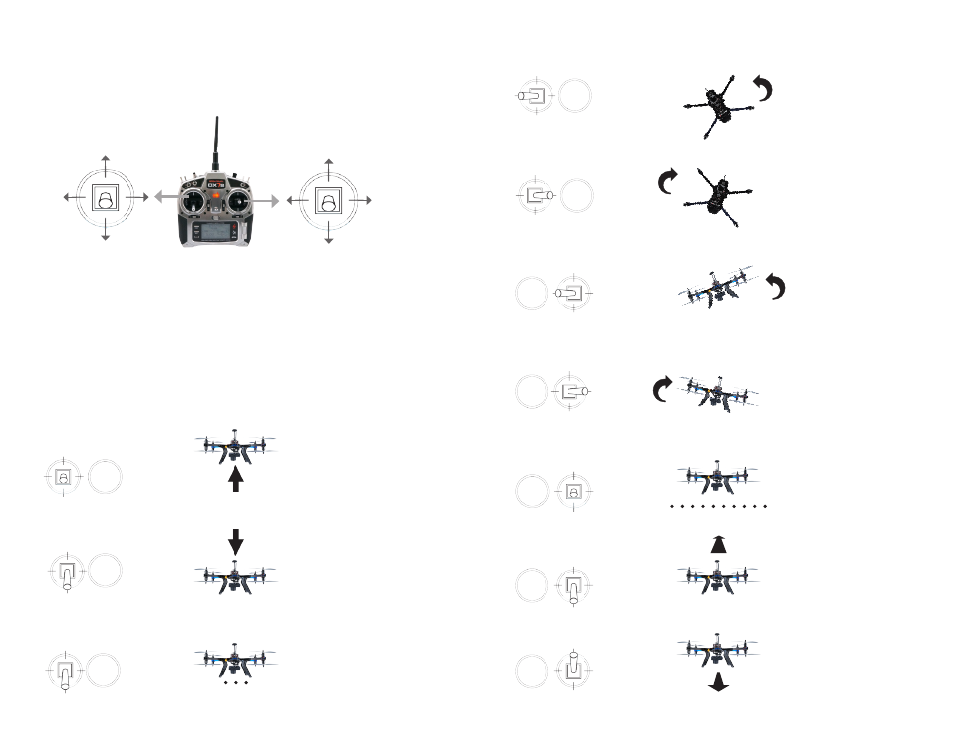

Fly the X8 manually using the RC controller.

yaw

throttle

Throttle:

Move the left stick forward and backward to control altitude and

acceleration.

Yaw:

Move the left stick horizontally to rotate and control orientation.

Navigate by orienting the X8 with the blue arms facing forward.

Pitch:

Move the right stick vertically to fly forward and backward.

Roll:

Move the right stick horizontally to fly to the left and to the right.

Controls

roll

pitch

roll and pitch center

Automatically level.

roll left

roll right

Fly to the left.

Fly to the right.

pitch up

pitch down

Fly forward.

Fly backward.
