22

Propellers
Remove the nuts and washers from the motors. Add SFP propellers and SF
propellers as marked below with the writing on the propellers facing towards
the sky. This will be a tight fit; apply pressure and twist the propeller onto the
shaft.

Place the washer over the propeller, and secure the
nut tightly on top using the propeller wrench.

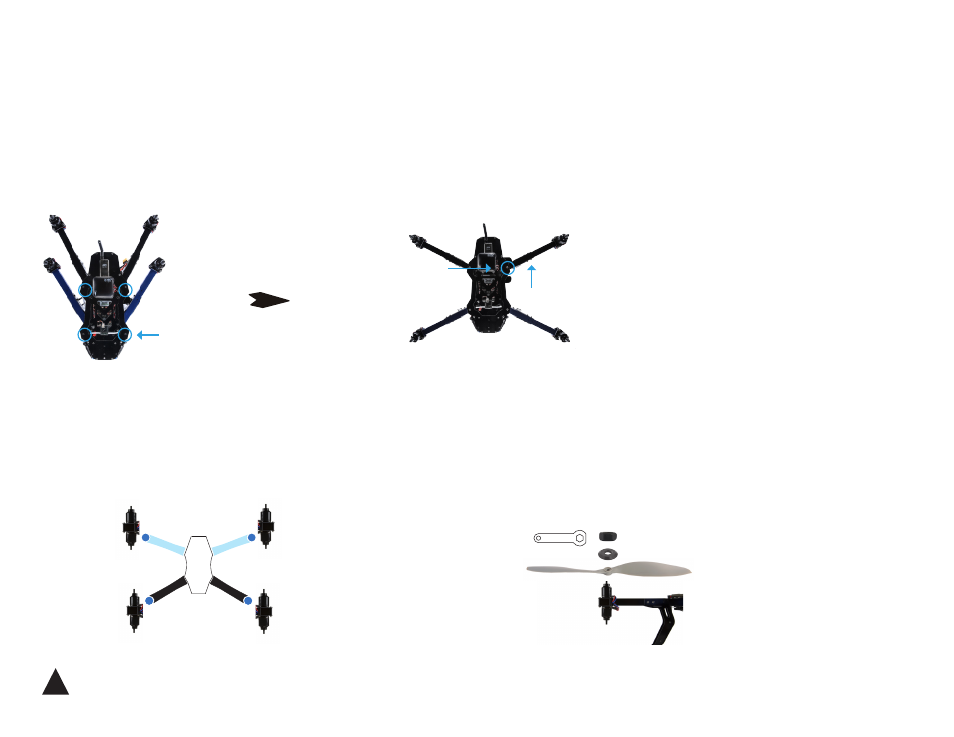

Arms
Remove the bolt and nut outside each arm. Rotate the arm into position, insert the
bolt through the plates and the arm, and secure the arm in place with the nut.

The X8 arrives in travel configuration. Complete these steps to prepare the copter for flight.

travel position

remove

secure with
bolt

flight position

slide each arm
into position

Ensure writing on all propellers faces the sky.

!

Assembly

Top motor: SF

Bottom motor: SFP

Bottom motor: SF

Top motor: SFP

Top motor: SF

Bottom motor: SFP

Bottom motor: SF

Top motor: SFP
