Wolo 345 Animal House - Manual

Model 345 ANIMAL HOUSE™
INSTALLATION INSTRUCTIONS
INSTALLATION AND OPERATING INSTRUCTIONS
Your purchase of a WOLO horn is a perfect choice to compliment your vehicle. Our horns are manufactured with the finest of
materials. Each horn is bench tested before it is packaged to assure workmanship and quality, so you will have many years of
reliable service.
IMPORTANT: THIS HORN SHOULD NEVER BE USED AS A REPLACEMENT FOR VEHICLE ORIGINAL EQUIPMENT
HORN. ADDITIONALLY IT IS NOT TO BE USED AS A WARNING DEVICE, MODEL 345 ANIMAL HOUSE IS FOR OFF THE
ROAD AND SHOW USE.
MOUNTING CONTROL BOX
1. Select a mounting location that allows easy access to the knobs and controls on the
face of the animal house control box.
2. Mount the angle brackets (supplied) to each side of the ANIMAL HOUSE control box.
See fig. (A).
3. Place the ANIMAL HOUSE control box in the selected mounting location. Using the
mounting brackets as a template mark
location for mounting holes to be
drilled.
4. Drill holes (2) on marked locations
using a 1/8 drill bit and mount control
box with self tapping screws provided.
See fig. (B).
MOUNTING SPEAKER
5. Select a convenient location in the engine compartment that is dry and safe from the engines exhaust manifold heat.
Always face the speaker in a downward position. This will help prevent water from entering into the speaker. Using the speak-
ers mounting bracket as a template, mark hole locations (3) and drill using a 1/8 inch drill bit. Secure speaker with self tapping
screws provided (3). Make sure that the speakers opening is not blocked by any compartments which could reduce its loud-
ness.
WIRING (Fig. C)
6. TWIN BLACK is connected to the speaker in the engine compartment. Route wires through fire wall to speaker. Connect
either wire to one of the speaker wires. Then connect remaining wire to other speaker wire.
7. RED WIRE is connected to the fuse-block or a under dash wire that has power (+) 12 volts when the ignition is on. A 3 amp
inline fuse must be used (included in kit).
8. SINGLE BLACK WIRE is grounded. Secure wire under a bolt in the dashboard area, make sure that the METAL surface
around the bolt is clean of rust and paint to make a good electrical connection.
TESTING AND OPERATION
9. Put the vehicles ignition on so to power your ANIMAL HOUSE HORN during testing.
10. Turn the ANIMAL HOUSE VOLUME knob to the right. The red LED power indicator will light to show that the horn is now
ON.

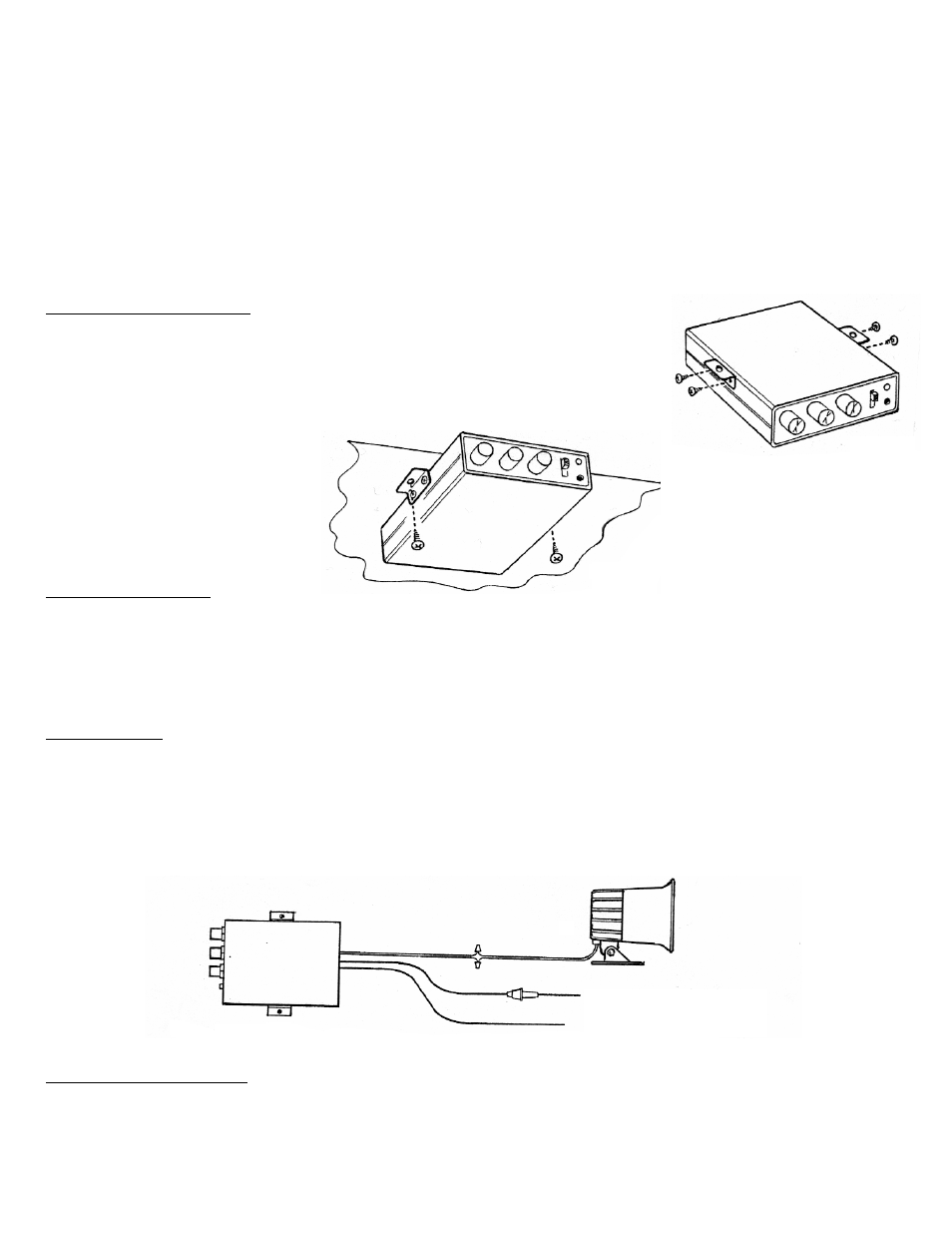

Fig. A
Fig. B
Fig. C
Red Wire +12-Volt
Black wire connect to ground
Fuse 3-amps
Twin black wire
