Wolo 841 Orient Epress - Manual

ANY EXPRESSED WARRANTY NOT PROVIDED HEREIN IS EXCLUDED AND DISCLAIMED. THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND OF FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF THREE (3) MONTHS. UNDER NO CIRCUMSTANCES
SHALL WOLO BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING
OUT OF BREACH OF WARRANTY OR OTHERWISE.
To obtain warranty service, return the product prepaid, and include the original bill of sale showing the date of purchase. Provide with the return a brief description of
the problem. Also, include with the return a check or money order in the amount of $5.00 to cover return shipping. Mail to:
Wolo Manufacturing Corp.
One Saxwood Street, Deer Park, NY 11729
Attn: Warranty Service
Warranty
Wolo Manufacturing Corporation (“Wolo”) warranties to the original purchaser, for three months from the date of purchase, that this
product is free from defects in workmanship and materials. If there is such a proven defect, Wolo, at its option, will either repair or
replace the item free of charge, if it is returned to Wolo within three months from the date of purchase together with proof of purchase as
described below. Wolo reserves the right to inspect any defect prior to settling any warranty claim by repair or replacement. This
warranty is limited as above provided and Wolo will not be responsible for fire or other casualty or accident, due to neglect, abuse,
abnormal use, modifications, faulty installation of this product, or natural causes.

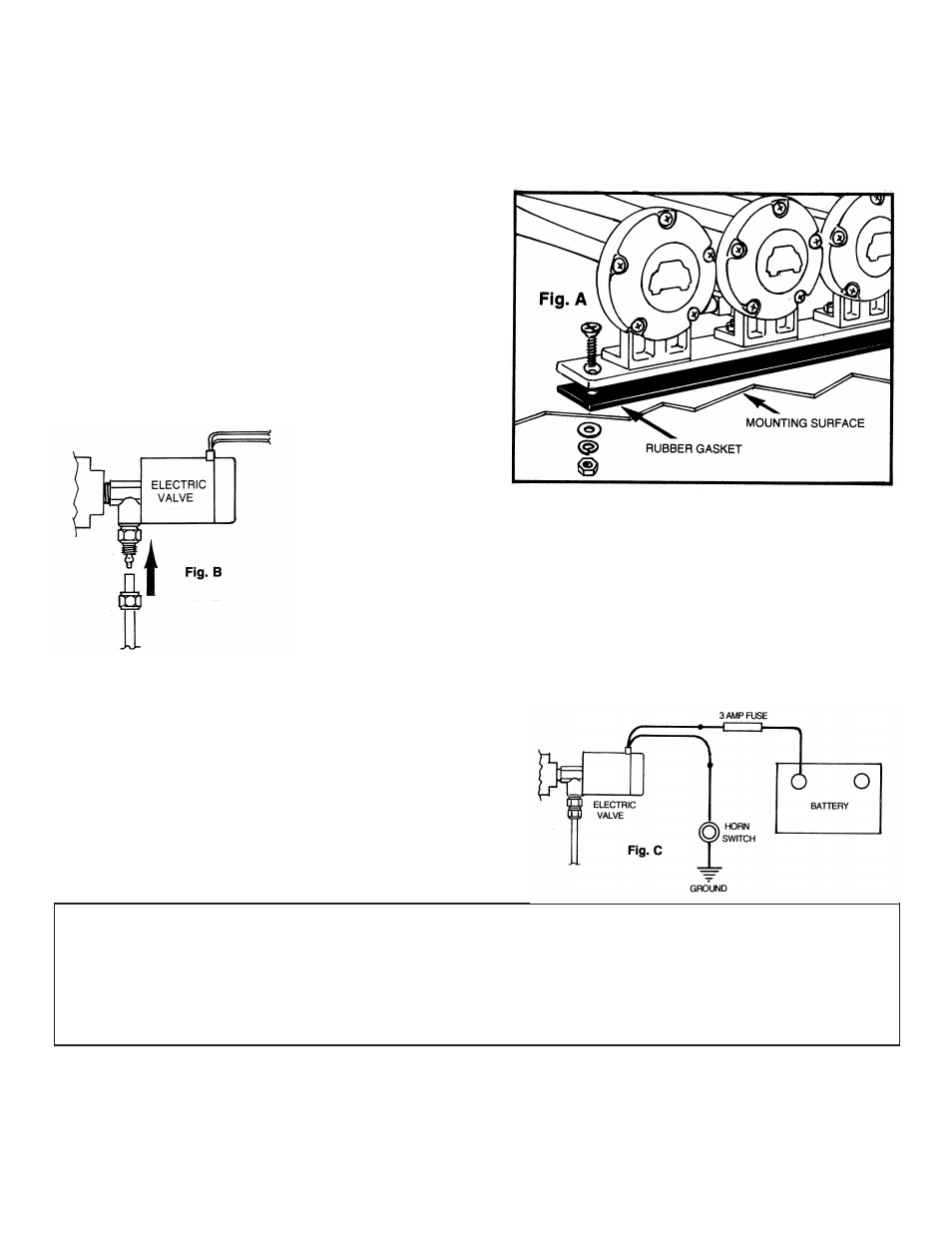

HORN INSTALLATION (Fig. A)
1. Locate a mounting location that is a solid metal surface such as the
vehicle’s frame or chassis to help prevent excessive vibration which
could damage the horn. the Cannon Ball Express Train Horn. For best
results, the front of the horn should be unobstructed so that the sound
can carry straight ahead.
2. Use the base of the horn as a template, mark the hole locations and drill
to size 9/64"
3. Place the gasket between the mounting surface and the base of the horn.
4. Secure the horn with the
hardware provided and tighten evenly.
HOSE INSTALLATION
(Fig. B)
5. Cut the 1/4" OD high pressure air hose provided to the proper length to connect the
vehicle’s on-board air tank to the horn.
6. Place the brass nut onto the end of the air hose. Push the hose onto the male inlet
fitting located on the horn’s solenoid
7. Thread brass nut onto the inlet fitting and tighten.
5. Connect the other end of the hose to the vehicle’s on-board air tank. Make sure that the
on-board air system has no pressure before attempting to connect hose to tank.
IMPORTANT: NEVER INSTALL THE HORN TO AIR TANK THAT CONTROLS THE
AIR BRAKES OR ANY OTHER CRITICAL OPERATING SYSTEM.
ELECTRIC VALVE WIRING (Fig. C)
6. Connect one (1) wire from the electric valve to the positive (+)
terminal on the battery, alternator, etc. Always protect this
electrical circuit with a three (3) amp fuse (not included).
7. Connect the other wire of the electric valve to the
horn switch.
8. Connect the horn switch’s other terminal to ground ,
any metal body bolt that is clean of paint and rust.
INSTALLATION INSTRUCTIONS
For Models 841 – Orient Express Train Horns
Your purchase of a Wolo Orient Express Horn is the choice to compliment your vehicle. Our products are manufactured
with the finest materials. Each horn is tested to insure it meets all manufacturing specifications before it is packaged. If
you need help installing your new Wolo horn, our technicians are available to answer your questions, Monday thru Friday,
9 AM to 4 PM EST by calling 1-888-550-HORN (4676).
© 2006 Wolo Mfg. Corp All Rights Reserved.
