C. Using a 16-gauge wire, the compressors’ negative terminal is connected to any metal body bolt. A ground connection
should be free of rust and paint.
7. Electrical Connections for a New Horn Button Switch:
Install the relay in a dry location with the terminals facing downward near the compressor. Refer to Figure D for wiring
D. Connect relay terminal 87 to the positive terminal at the bottom of the compressor. Use no less than a 16-gauge
wire.
E. Connect relay terminal 85 to the horn switch terminal. The other horn switch terminal is connected to ground, (body
of vehicle). An 18-gauge wire is suggested for this connection.
F. Connect relay terminals 30/86 to positive (+) 12-volt battery, alternator or accessories. Use 16-gauge or heavier
wire. A 20-ampere fuse is suggested to be installed as shown in Figure D.
G. Recap of Terminal Connections for New Horn Switch:
Terminals: 30/86: the two terminals are connected to 12 volt positive (+) using a fuse.
Terminal: 85: connect horn switch negative (-)
Terminal: 87: connect positive (+) terminal of compressor.

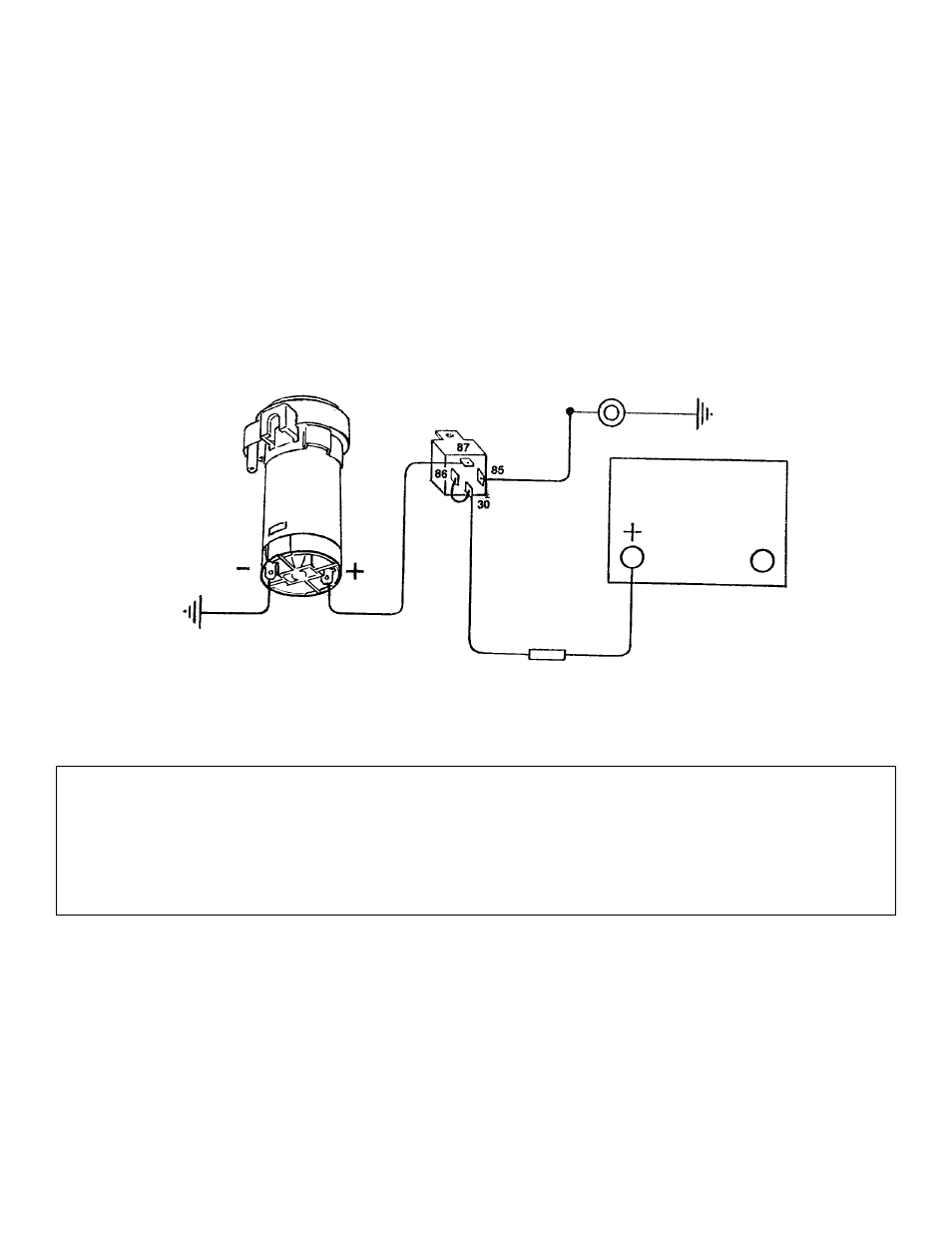

Electrical Connections for a New Horn Button Switch
