MAB Installation Manual
IOM-MAB-00 08-15-04
2 of 9

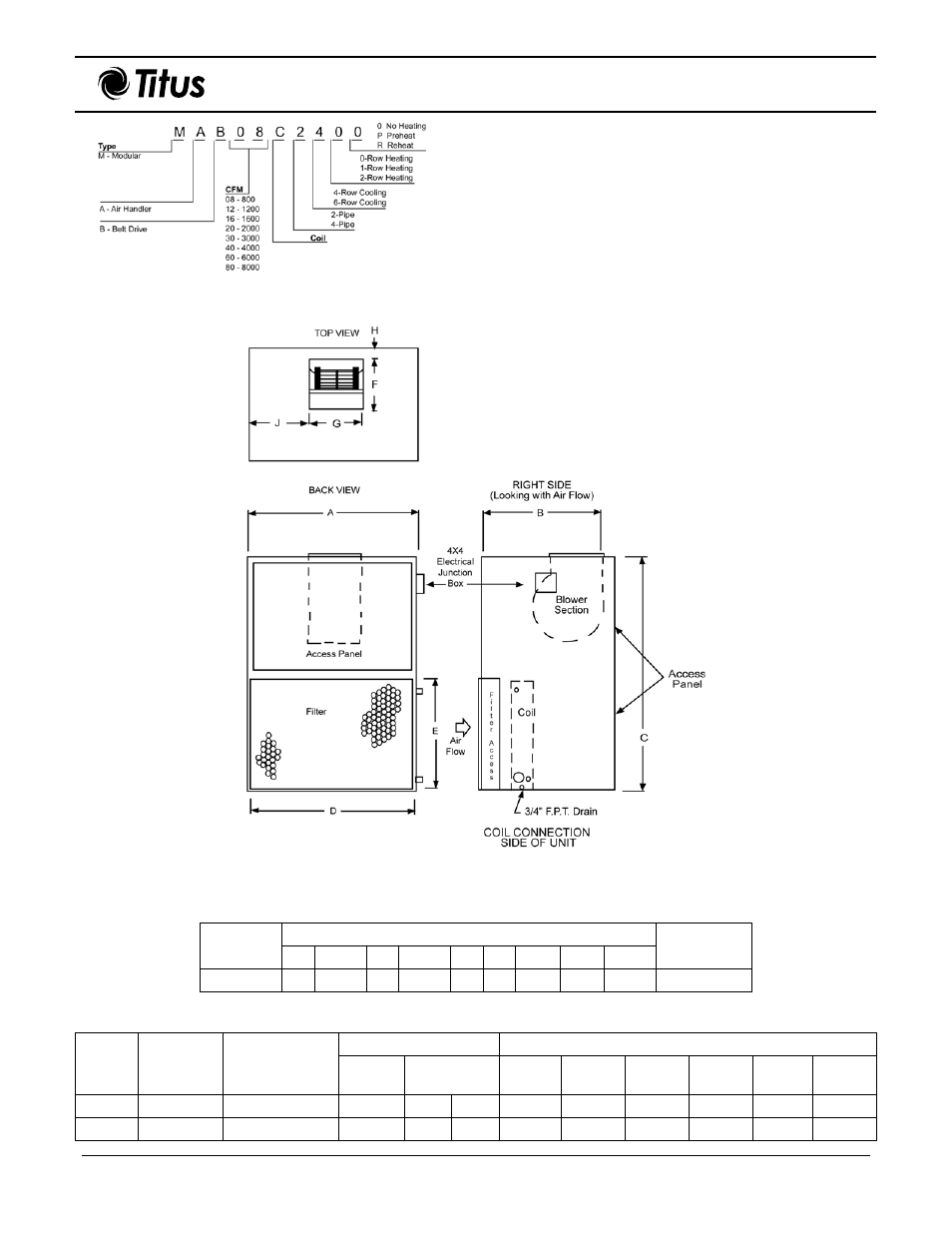

Figure 1. Air Handler Model Number
Nomenclature
Dimension Specification
Figures 2 and 3 show dimensional callouts for all sides of an
MAB unit. Tables 1 and 3 provide MAB model dimensional
specifics such as tonnage, blower, filter dimensions, optional
discharge or return air plenum, and shipping weight of
plenum.
Blower and Plenum Information
Tables 2 and 4 provide the blower coil and/or plenum
specifics for MAB models. Table 5 provides water
connection sizes based on model.
Figure 2. MAB08 & MAB12 Dimensional Views
Table 1. Cabinet Dimensions (MAB08 & MAB12)
Dimensions (inches)
Model
A B C D E F G H J
1-inch Filter
MAB08/12 37 31.75 36 27.50 16 12 8.50 1.13 14.25 16 x 32
Table 2. Blower Coil Specifics (MAB08 & MAB12)
Rows/Fins Per Inch Coil Connection (OD Sweat)
Model
Nominal
CFM
Nominal
Capacity
(Tons)
Hot
Water
Chilled
Water
Two-
Row
Ship.
Wgt.
Four-
Row
Ship.
Wgt.
Six-
Row
Ship.
Wgt.
MAB08 800 2 2/10 4/10 6/10 0.625 13 0.75 145 0.75 156
MAB12 1200 3 2/10 4/10 6/10 0.625 18 0.75 171 0.875 190
