I N S T A L L A T I O N & O P E R A T I O N M A N U A L

Atlas Ceiling System IOM

Installation & Operation

AORCS

Blank-off Panel Installation


Cut and install the ceiling tiles using all the proper PPE. Start with the border panels. Cutting tiles will require a fine tooth blade on a table saw. It is
recommended that you protect the panels from getting scratched while cutting.


Install the border panels and hold down ceiling clips. The clips seal the tile to gasket ensuring there are no gaps between tile and gasket, complet-
ing the antimicrobial seal.

Identify which blank-off panels need clearance holes for lights, fixtures, and equipment support. Refer to vendor documentation for the required
opening sizes. Mark area to be removed and verify opening size and location to components as installed. Ensure clearance holes will be fully covered
by escutcheons or mounting frames.

Install cut panels as shown on drawings. Panels with clearance holes for booms must be installed prior to boom mounting, and remain in place
during boom installation.

Do not cut blank-off panels in half

.


Install diffusers and lights per product specific installation manuals.

Complete installation of the remaining blank-off panels. Start from one end of the room, drop in ceiling tile and hold down clips as you go. It is very
important to properly install hold down clips to complete the proper seal. Install at least 1 clip per side on blank-off panels; for panel lengths exceed-
ing 36 inches, (2) evenly spaced clips should be installed per side.

10

Tee

Gasket

Blank-off

Panel

Hold Down Clip

Tee

Gasket

Blank-off

Panel

Hold Down Clip

Installed position

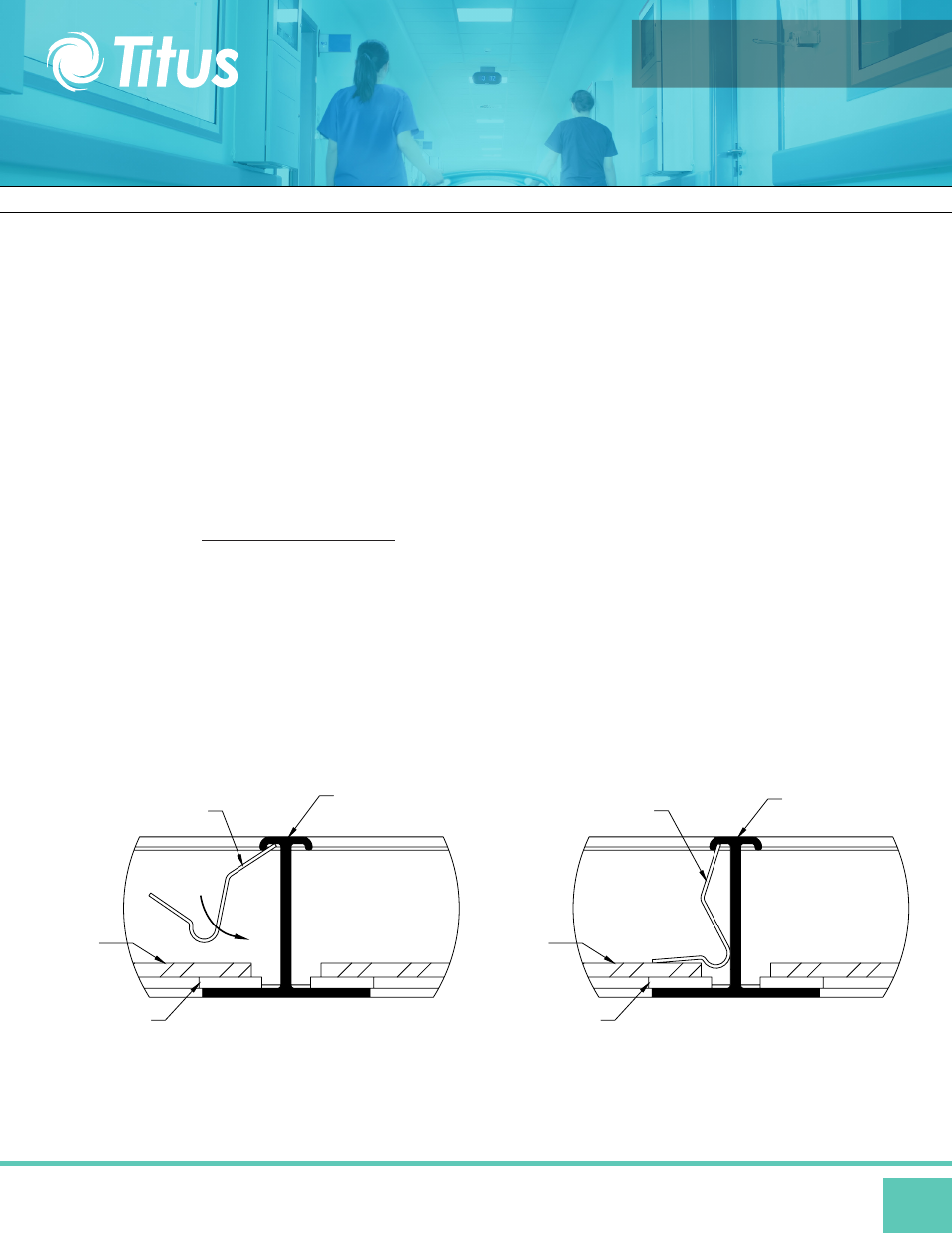

Note: Slide hold down clip into recess at top of tees. Swing/press clip down until it seats itself in the installed position.

Clip Installation
