Architectural
Details

Arch 2

2014 (BOOK SIZE)

2.95

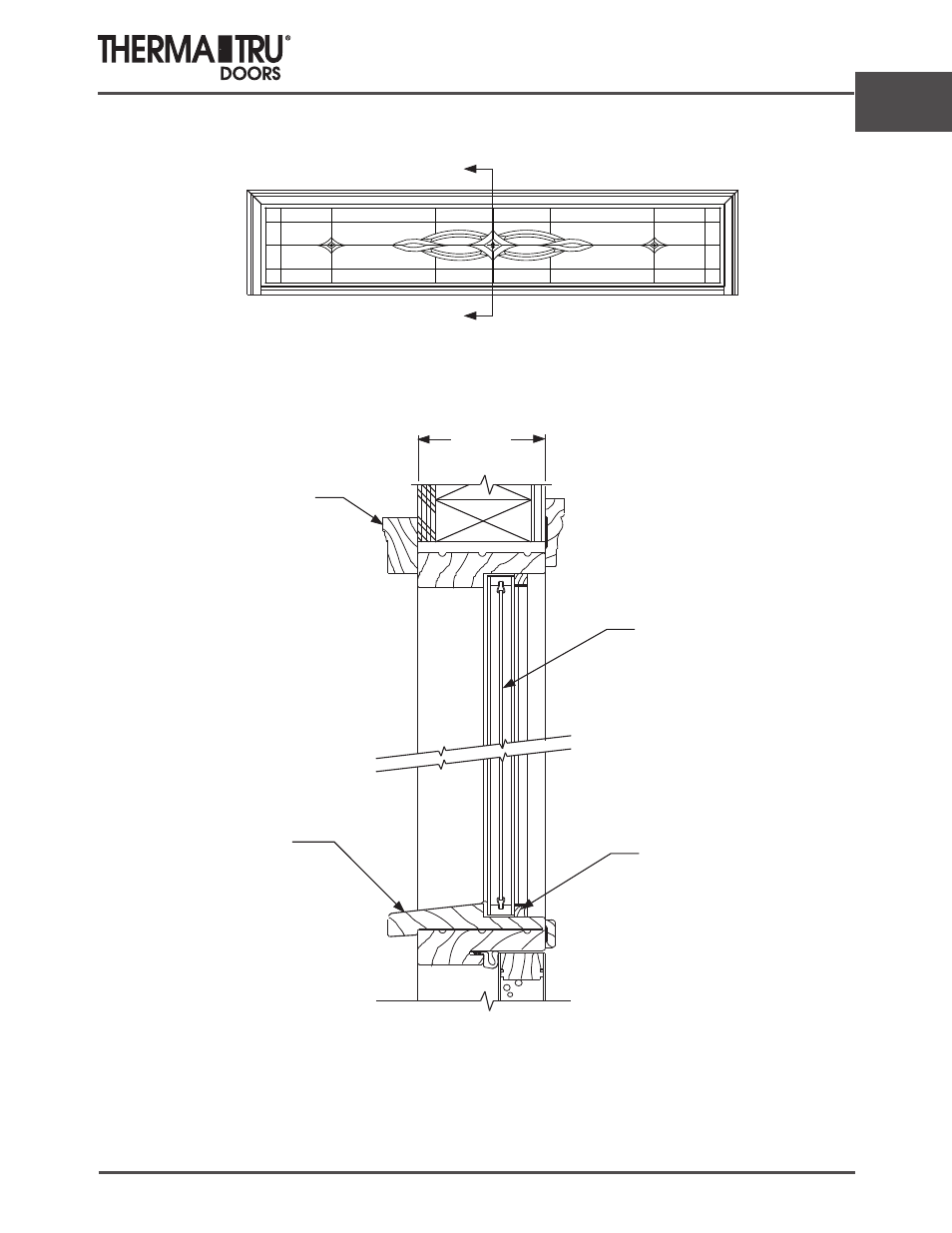

Rectangular Transom

SECTION A-A

Scale: 3”

= 1’- 0”

A

A

Scale: 3/4”

= 1’- 0”

Brickmould

Triple-Glazed

Decorative

Leaded Lite

Bead Molding

Transom Sill

4-9/16”
