Architectural
Details

Arch 2

2014 (BOOK SIZE)

2.85

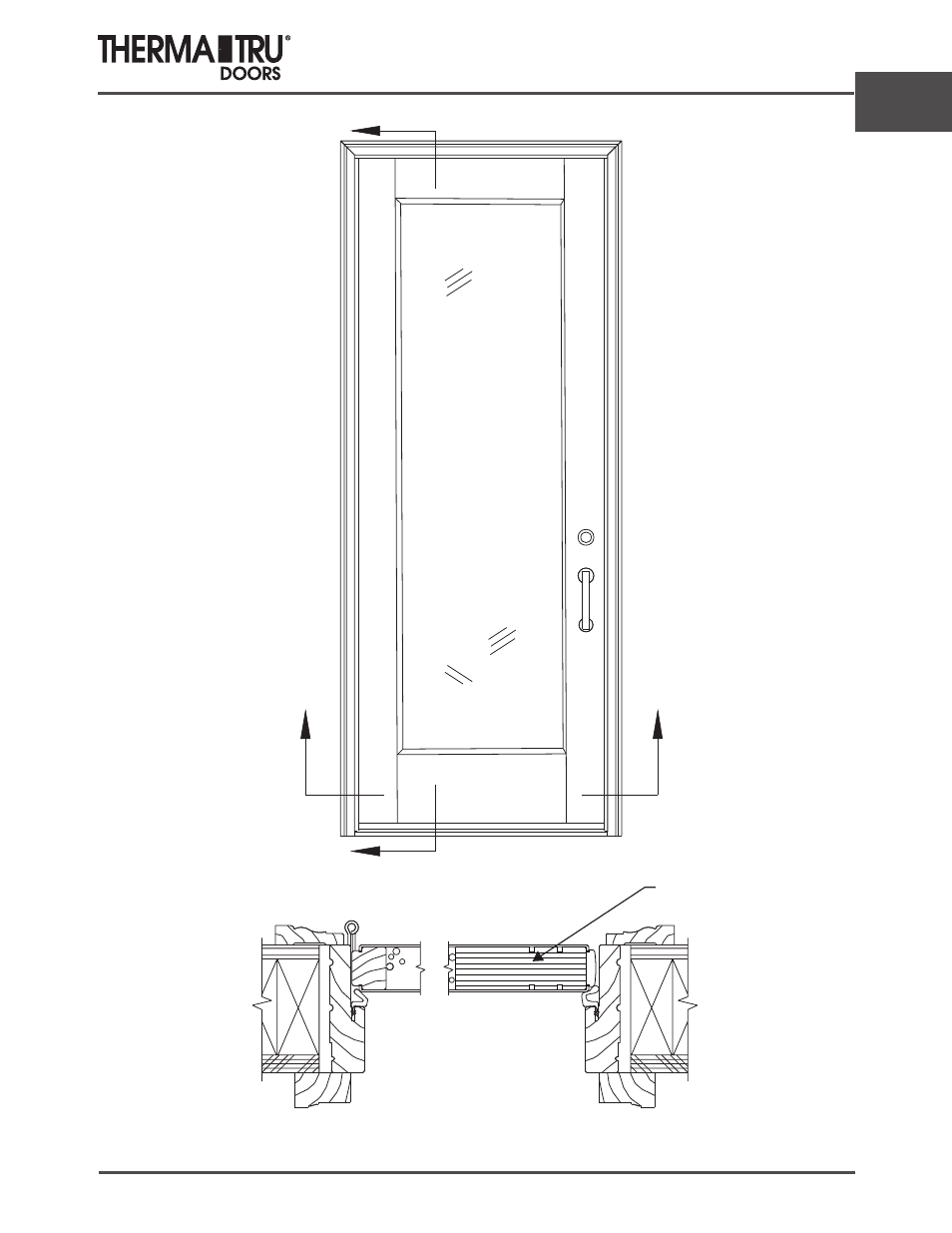

8/0 Smooth-Star Flush-Glazed Door

SECTION A-A

Scale: 3”

= 1’- 0”

Single Door, Inswing

A

A

B

B

Scale: 3/4”

= 1’- 0”

Engineered Lumber

Lock Stile Core
