Therma-Tru ARCH 2 Architectural Details - Book Size - Manual (Page 82)

Architectural
Details
2.82 2014 (BOOK SIZE) Arch 2
6/8 Smooth-Star Flush-Glazed Door

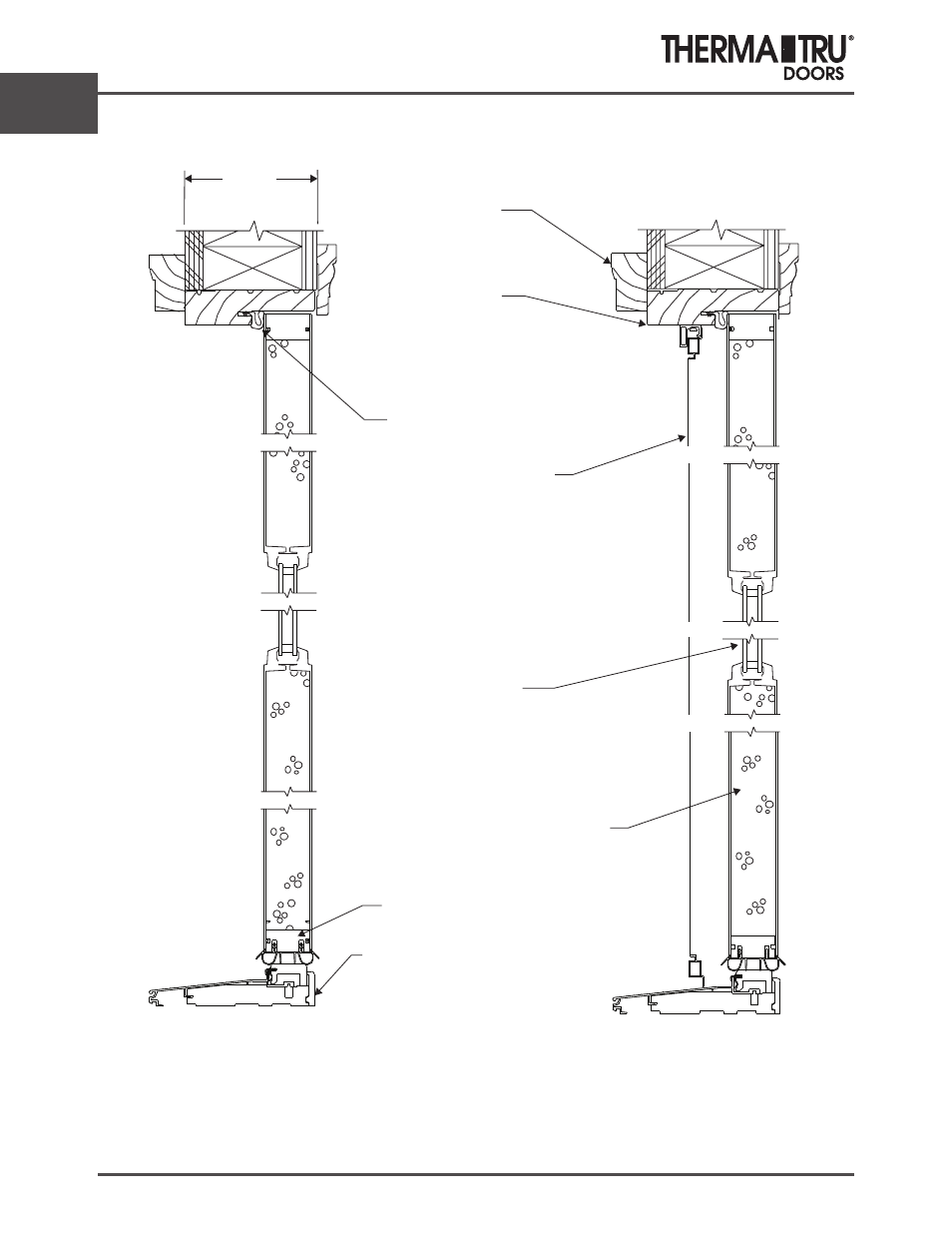

SECTION B-B
Scale: 3” = 1’- 0”
SECTION C-C
5-7/8” Composite or
Hardwood Sill
Foam Core
4-9/16 amb ” J
Flush-Glazed
Double-Glazed
Clear Lite
Brickmould
Jacketed Urethane
Weatherstrip
4-9/16”
Moisture-Resistant
End Rail
Scale: 3” = 1’- 0”
Fixed Screen
