6/8 classic-craft american style – Therma-Tru ARCH 2 Architectural Details - Book Size User Manual
Page 26

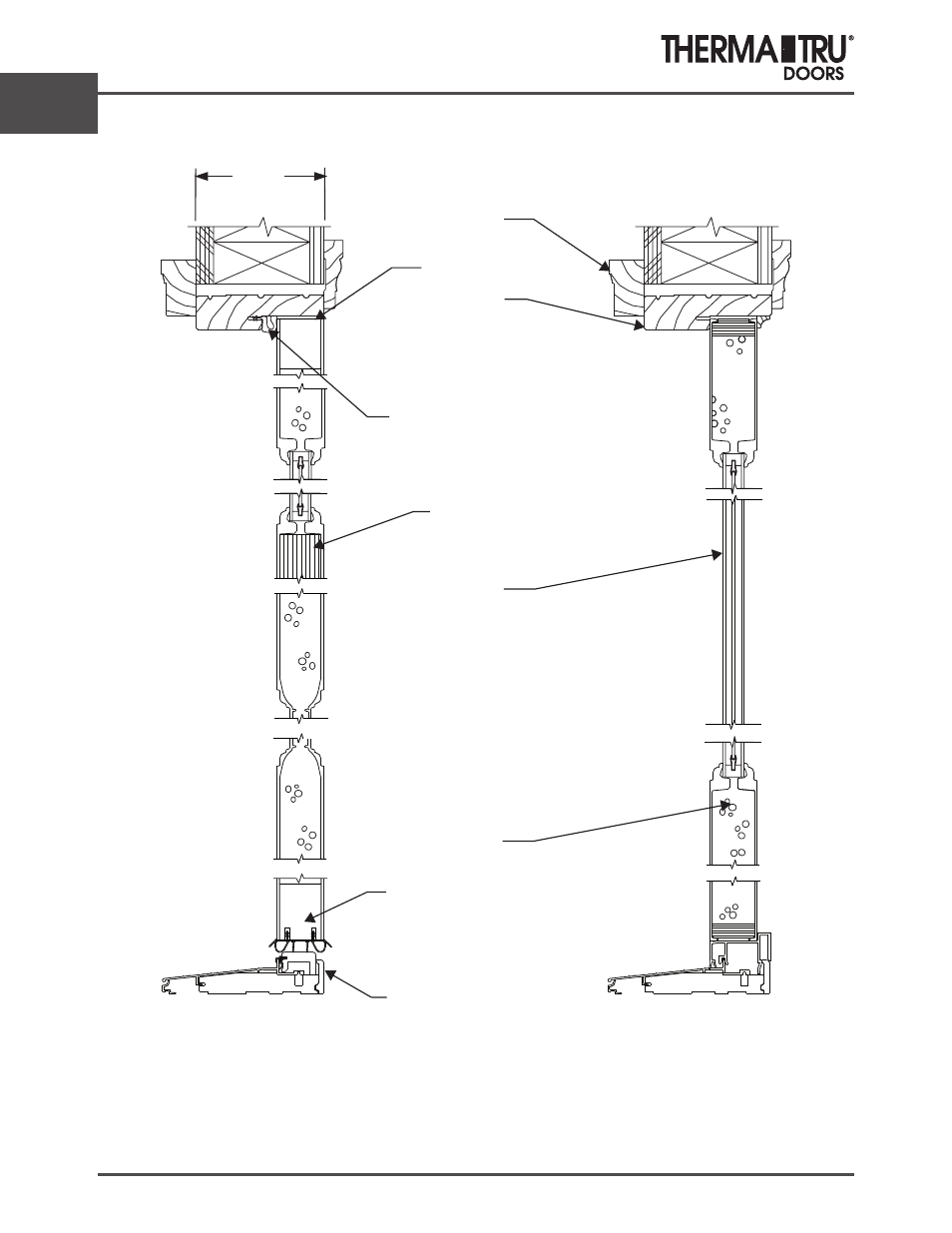

Architectural
Details
2.26
2014 (BOOK SIZE)
Arch 2
6/8 Classic-Craft American Style
SECTION B-B
Scale: 3”
= 1’- 0”
SECTION C-C
Jacketed Urethane
Weatherstrip
Brickmould
4-9/16” Jamb
Foam Core
Triple-Glazed
Decorative
Leaded Lite
Dentil Shelf
Reinforcement
Block
Moisture-Resistant
End Rail
Scale: 3”
= 1’- 0”
4-9/16”
5-3/4
Sill
” Composite
or Hardwood
Top Rail
