6/8 flush-glazed grille locations – Therma-Tru ARCH 1 Dimensional Data - U1 Revised User Manual
Page 63
Dimensional
Data
Arch 1
2014 (U1 REVISED)
1.63

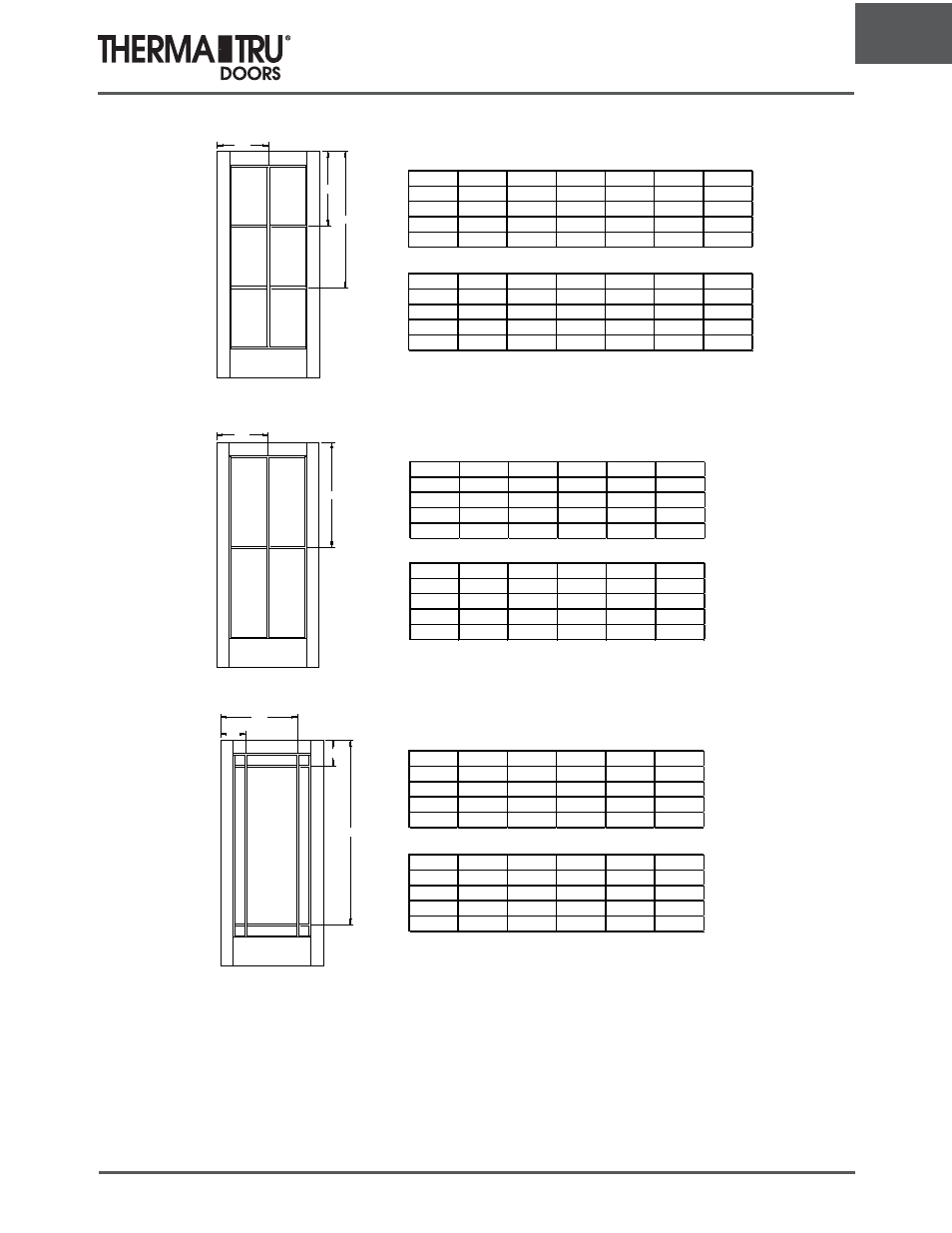

6/8 Flush-Glazed Grille Locations
A
D
E
A
D
A
B
C
D
Panel
Glass
A
B
C
D
E
2/6
20 x 64
14-7/8"
-
-
26-3/16"
47-5/8"
2/8
20 x 64
15-7/8"
-
-
26-3/16"
47-5/8"
*2/10
25 x 64
16-7/8"
-
-
26-3/16"
47-5/8"
3/0
27 x 64
17-7/8"
-
-
26-3/16" 47-11/16"
GBG - Flush-Glazed - Fiber Classic - 6'8" Full Lite - 2W3H
*Only available in 6/6.
Panel
Glass
A
B
C
D
E
2/6
20 x 64
14-7/8"
-
-
26"
47-7/16"
2/8
20 x 64
15-7/8"
-
-
26"
47-7/16"
2/10
25 x 64
16-7/8"
-
-
26"
47-7/16"
3/0
25 x 64
17-7/8"
-
-
26"
47-7/16"
GBG - Flush-Glazed - Smooth-Star - 6'8" Full Lite - 2W3H
Panel
Glass
A
B
C
D
2/6
20 x 64
14-7/8"
-
-
36-15/16"
2/8
20 x 64
15-7/8"
-
-
36-15/16"
*2/10
25 x 64
16-7/8"
-
-
36-15/16"
3/0
27 x 64
17-7/8"
-
-
36-15/16"
GBG - Flush-Glazed - Fiber Classic - 6'8" Full Lite - 2W2H
*Only available in 6/6.
Panel
Glass
A
B
C
D
2/6
20 x 64
14-7/8"
-
-
36-3/4"
2/8
20 x 64
15-7/8"
-
-
36-3/4"
2/10
25 x 64
16-7/8"
-
-
36-3/4"
3/0
25 x 64
17-7/8"
-
-
36-3/4"
GBG - Flush-Glazed - Smooth-Star - 6'8" Full Lite - 2W2H
Panel
Glass
A
B
C
D
2/6
20 x 64
8-3/4"
21-1/16"
9-3/16"
64-5/8"
2/8
20 x 64
9-3/4"
22-1/16"
9-3/16"
64-5/8"
*2/10
25 x 64
8-11/16"
25-1/8"
9-3/16"
64-5/8"
3/0
27 x 64
8-13/16"
27"
9-3/16" 64-11/16"
GBG - Flush-Glazed - Fiber Classic - 6'8" Full Lite - 9 Lite Prairie
*Only available in 6/6.
Panel
Glass
A
B
C
D
2/6
20 x 64
8-3/4"
21-1/16"
9"
64-7/16"
2/8
20 x 64
9-3/4"
22-1/16"
9"
64-7/16"
2/10
25 x 64
8-11/16"
25-1/8"
9"
64-7/16"
3/0
25 x 64
9-11/16"
26-1/8"
9"
64-7/16"
GBG - Flush-Glazed - Smooth-Star - 6'8" Full Lite - 9 Lite Prairie
