Unit and rough opening sizing – Therma-Tru ARCH 1 Dimensional Data - U1 Revised User Manual
Page 35
Dimensional
Data
Arch 1
2014 (U1 REVISED)
1.35
Unit and Rough Opening Sizing
Scale: 1-1/2” = 1'0”

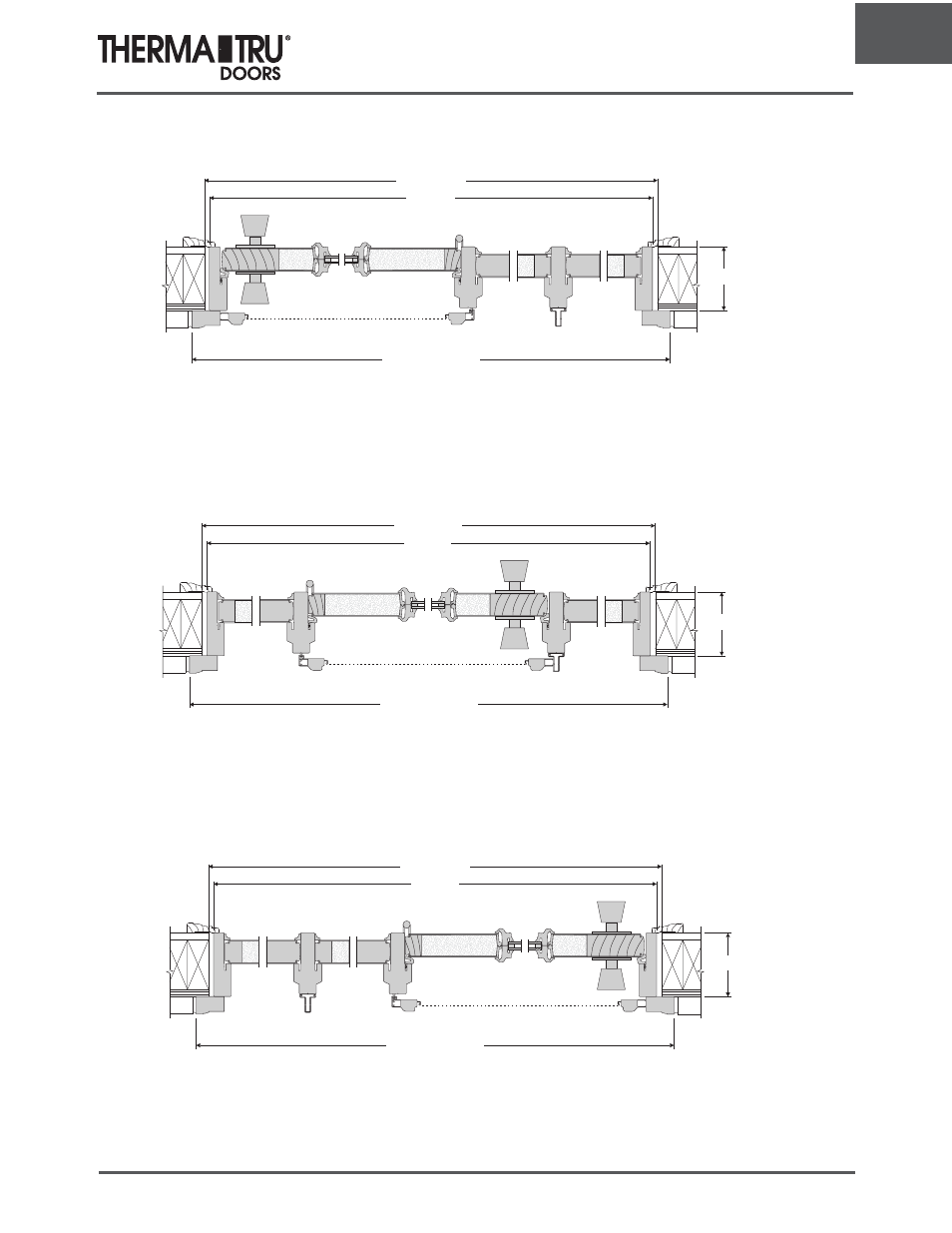

HORIZONTAL SECTION
INSWING -TRIPLE
(RFF shown)
HORIZONTAL SECTION
INSWING - TRIPLE
(FLF shown)
HORIZONTAL SECTION
INSWING - TRIPLE
(FFL shown)
Unit Width
Rough Opening
4-9/16”
Brickmould Dimension
Unit Width
Rough Opening
4-9/16”
Brickmould Dimension
Unit Width
Rough Opening
4-9/16”
Brickmould Dimension
