Dimensional
Data
Arch 1 2014 (U1 REVISED) 1.33

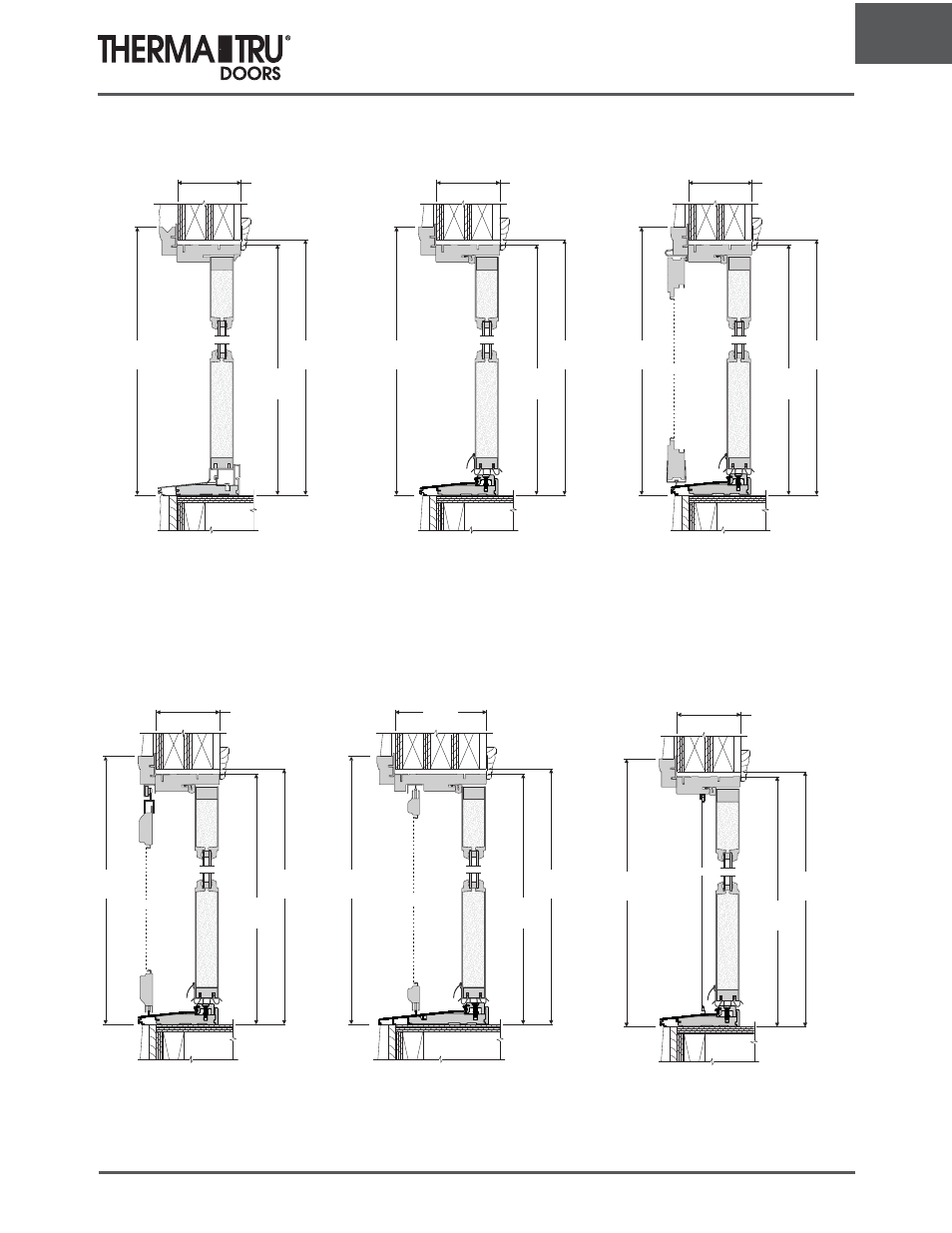

Unit and Rough Opening Sizing
VERTICAL SECTION
INSWING - FIXED
(shown with Stucco Brickmould option)
VERTICAL SECTION
INSWING - DOUBLE/TRIPLE
w/TOP HUNG SCREEN
VERTICAL SECTION
INSWING - SINGLE
VERTICAL SECTION
INSWING - 6-9/16”
w/STANDARD SCREEN
VERTICAL SECTION
INSWING - DOUBLE w/ASTRAGAL
w/HINGED SCREEN
Scale: 1-1/2” = 1’0”
VERTICAL SECTION
INSWING - VENTED SIDELITE
w/FIXED SCREEN
Brickmould
Dimension
4-9/16”
Unit
Height
Rough
Opening
Brickmould
Dimension
4-9/16”
Unit
Height
Rough
Opening
Brickmould
Dimension
4-9/16”
Unit
Height
Rough
Opening
Brickmould
Dimension
4-9/16”
Unit
Height
Rough
Opening
Brickmould
Dimension
6-9/16”
Unit
Height
Rough
Opening
Brickmould
Dimension
4-9/16”
Unit
Height
Rough
Opening
