Hampton® H15-1 Direct Vent Freestanding Gas Stove
PARTS LIST

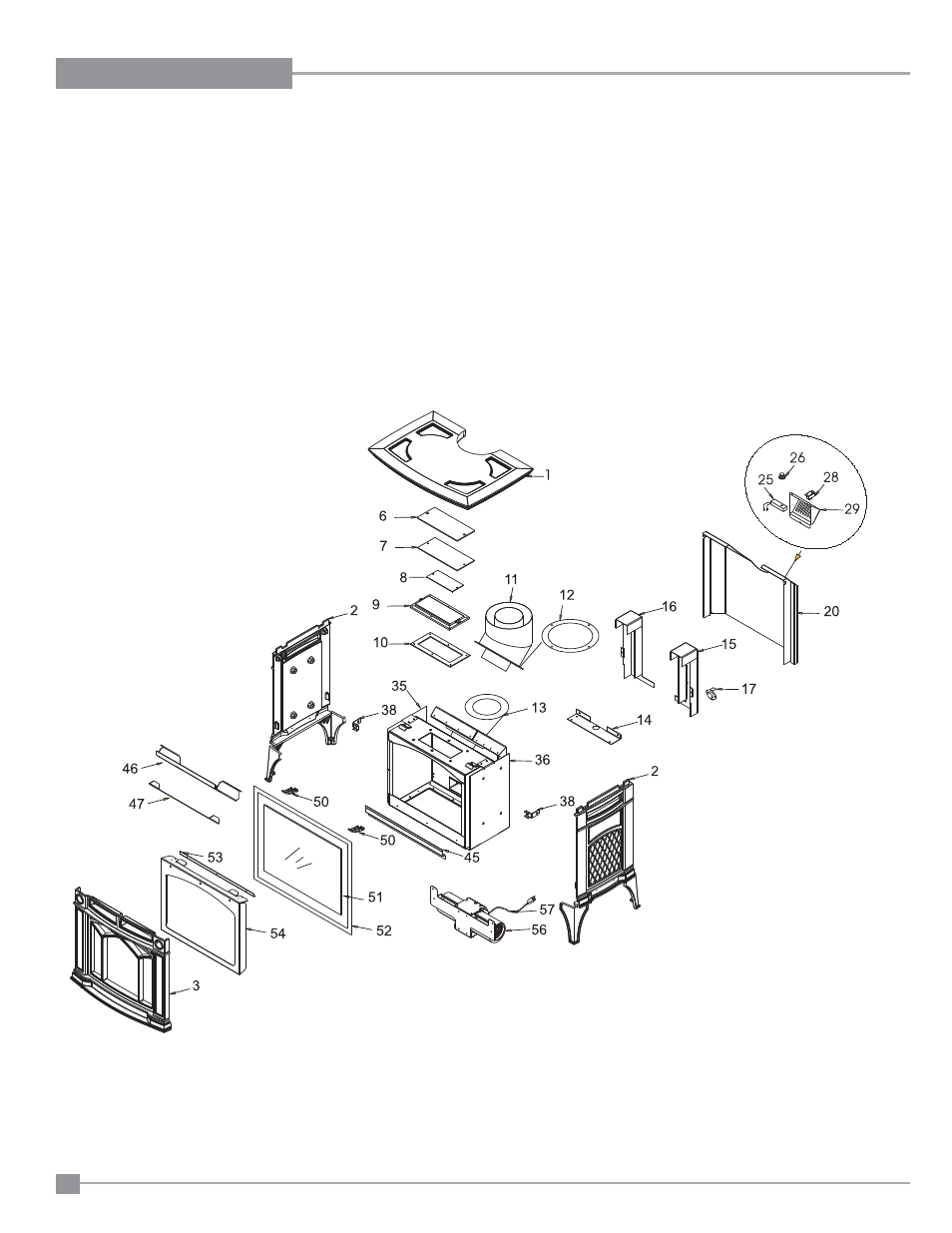

MAIN ASSEMBLY
Part # Description Part # Description Part # Description
1) 942-601** Casting - Top
2) 942-621** Casting - Side & Leg
3) 942-611** Casting - Front
6) 770-066F Top Relief Plate
7) W260280 Top Relief Plate Gasket
8) 770-067F Plate Insulation Holder
9) 942-117 Top Relief Frame
10) W260260 Top Relief Frame Gasket
11) 945F Dura-Vent Collar
12) W842051 Gasket for Flue Adaptor
13) W260108 Gasket for Inner Flue
14) * Rear Bracket
15) 380-024 Fan Defl ector - Right
16) 380-023 Fan Defl ector - Left
17) 910-142 Thermodisc Switch
20) 380-012 Rear Panel
25) 910-330 Fan Speed Control (120V)
26) 904-569 Knob - Fan Speed Control
28) 910-241 Burner ON/OFF Switch
29) 260-037 Rear Control Panel
35) 380-002 Firebox Bracket - Left
36) 380-003 Firebox Bracket - Right
38) 380-034 Casting Mount Bracket
45) 380-001 Door Support
46) 380-010 Baffl e Plate of Firebox
47) 380-011 Restrictor
50)
948-255 Latch Ojop W/J-Hook
51) 940-338/P Replacement Glass
52) 41225 Gasket Tadpole
53) 380-008 Glass Bracket
54) 380-007 Door Frame
56) 910-157/P Fan Motor (120 V)
57) 910-794 Power Cord (120 V)
918-516 Manual
* Not available as a replacement part.
** Last digit of part number represents colour:
3=Slate Blue, 4=Ivory, 5=Timberline Brown,
7=Seaside Sand.
