Hampton® H15-1 Direct Vent Freestanding Gas Stove
33

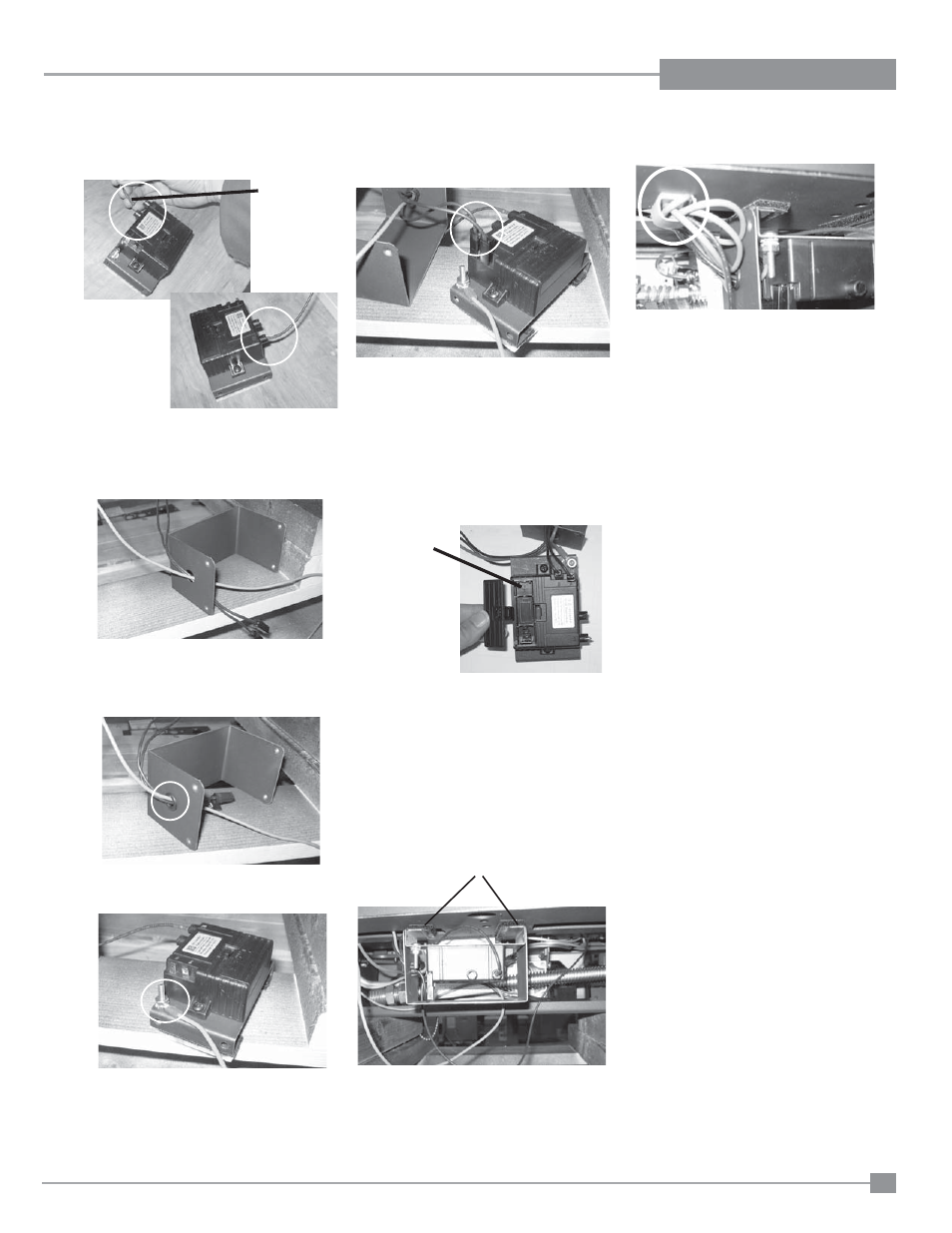

INSTALLATION
27) Install the plastic bushing over the
outside of the hole.
28) Attach the ground wire to the DC spark
mounting bracket.
29) Attach the DC sparker generator wires to
the DC sparker.
26) Insert both the ground wire and the DC
sparker generator wire through the hole
of the DC spark heat shield.
25) Attach the Piezo ignition wire to the DC
Sparker.
Piezo
Ignitor
31) Attach the heat shield to the DC sparker,
then mount onto the stove using the
velcro already attached to the DC
Sparker mounting bracket.
Note: We recommend attaching the
DC sparker box to the bottom rear of
the stove (or place this in a convenient
location, away from the heat source).
32) Tie up the loose wire with the wire clip.
Velcro
30) Install the supplied battery into the DC
Sparker Box by opening the battery
compartment.
NOTE: The battery in the DC Sparker
Box will need to be replaced annually.
Battery
Compartment
