Hampton® H15-1 Direct Vent Freestanding Gas Stove

23

INSTALLATION

RESIDENTIAL AND MANUFACTURED HOMES / MOBILE HOMES

MINIMUM HORIZONTAL TERMINATION INSTALLATIONS

Planning Your Venting Installation

See the "Exterior Vent Terminal Locations"
section for requirements.

When planning your installation, it will be necessary
to select the proper length of vent pipe for your
particular requirements. Determine the minimum
clearance to combustibles from the rear of the unit
to the wall. It is also important to note the wall thick-
ness. Before cutting the vent hole through the wall
ensure that ALL vent and termination clearances
(Refer to the "Exterior Vent Terminal Locations"
section) will be met.

*If this is an outside corner, the minimum distance
between the vent and the outside corner is 6"
(15cm). See "F" on the diagram in the "Exterior
Vent Terminal Locations" section.

NOTE: Ensure compliance with the outside vent
terminal location before cutting hole as both dimen-
sions must be met.

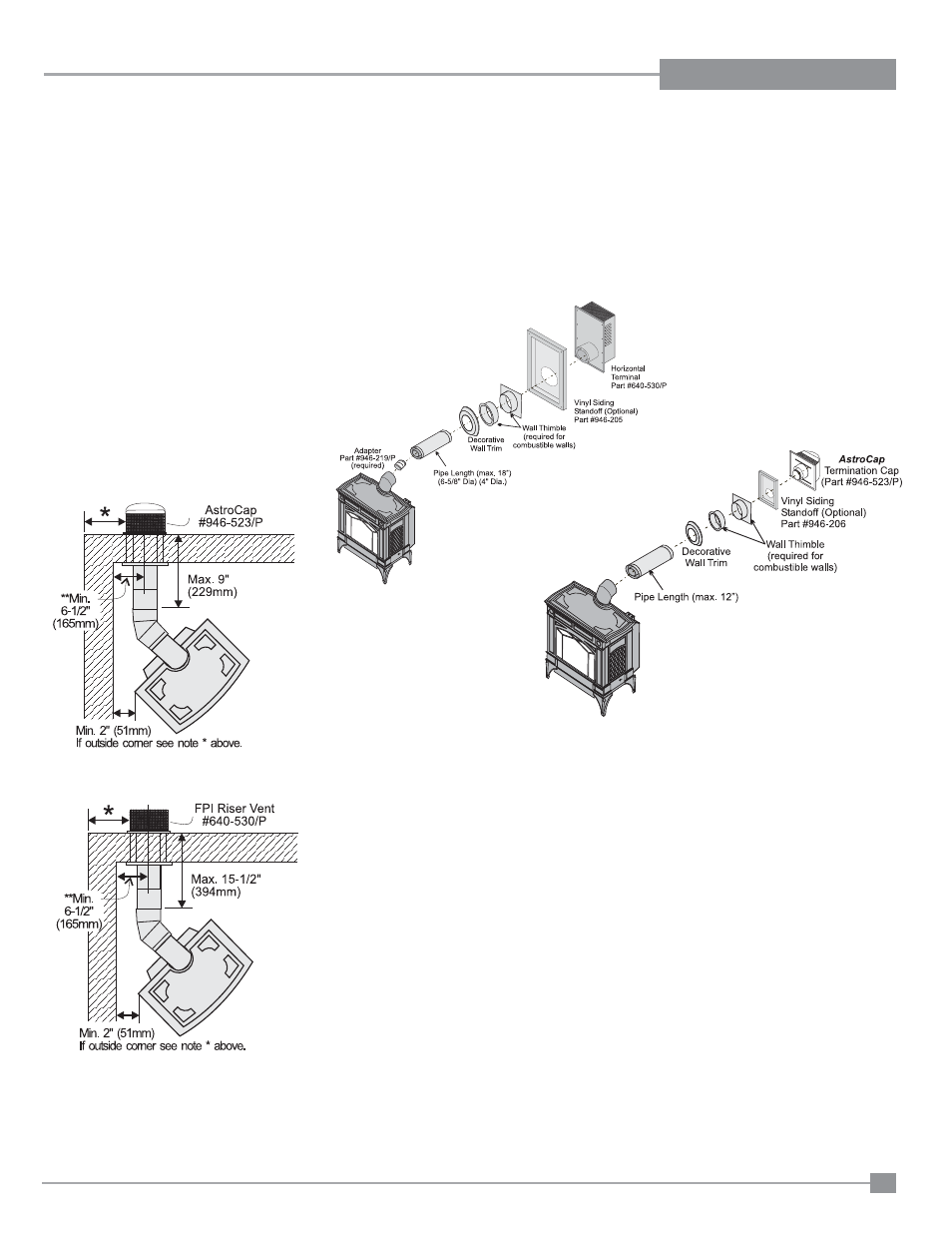

Minimum components for a Horizontal Installation:
640-944

Horizontal Termination Kit which includes:

1

6-5/8" Dia. x 18" Black Pipe

1

4" Dia. x 18" Aluminum Vent

1

946-202

Wall Penetration Heat Shield (Wall Thimble) (2 pcs)

1 640-530/P

Riser

Vent

Terminal

1

640-545/P

Decorative Wall Trim (Black)

1

948-128

Tube Mill-Pac Screws

380-946

Horizontal Termination Kit which includes:

1

6-5/8" Dia. x 12" Black Pipe

1

4" Dia. x 12" Aluminum Vent

1

946-202

Wall Penetration Heat Shield (Wall Thimble) (2 pcs)

1 946-523/P

AstroCap

1

640-545/P

Decorative Wall Trim (Black)

1

948-128

Tube Mill-Pac Screws

Optional Components:
946-204

45

o

Elbow - 6-5/8" Black pipe

946-523/P AstroCap

and 4" Aluminum Vent

946-206 Vinyl Siding Standoff (AstroCap)

946-205

Vinyl Siding Shield for Riser Vent 946-506/P Vent Guard (AstroCap)

Terminal

946-208/P Vent Guard (Riser Vent Terminal)

Square Wall Thimble Cover*

Snorkel

Termination

(36")

Snorkel

Termination

(14")

Wall

Penetration

Heat

Shield*

* Simpson Dura-Vent Components

You will require the following components with your new Hampton

®

Direct Vent Freestanding Gas

Stove. Please review your product to make sure you have everything you need. In the event that you are
missing any part, contact your dealer. Decorative brass or chrome trim kits are available from Simpson
Dura-Vent for their wall thimbles, as well as a square wall thimble cover.

Note: These are the minimum pieces required. Other parts may be required for your particular

installation.

Kit #640-944

Kit #380-946
