30

Hampton® H15-1 Direct Vent Freestanding Gas Stove

INSTALLATION

GAS PIPE

PRESSURE TESTING

The appliance must be isolated from the gas sup-
ply piping system by closing its individual manual
shut-off valve during any pressure testing of the gas
supply piping system at test pressures equal to or
less than 1/2 psig. (3.45 kPa). Disconnect piping
from valve at pressures over 1/2 psig.

The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.

Note: To properly check gas pressure, both

inlet and manifold pressures should be
checked using the valve pressure ports
on the valve.

1) Make sure the valve is in the "OFF" position.

2) Loosen the "IN" and/or "OUT" pressure tap(s),

turning counterclockwise with a 1/8" wide fl at
screwdriver.

3) Attach manometer to "IN" and/or "OUT" pressure

tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON" posi-

tion. Read manometer.

5) The pressure check should be carried out with

the unit burning and the setting should be within
the limits specifi ed on the safety label.

6) When

fi nished reading manometer, turn off the

gas valve, disconnect the hose and tighten the
screw (clockwise) with a 1/8" fl at screwdriver.
Note: Screw should be snug, but do not over
tighten

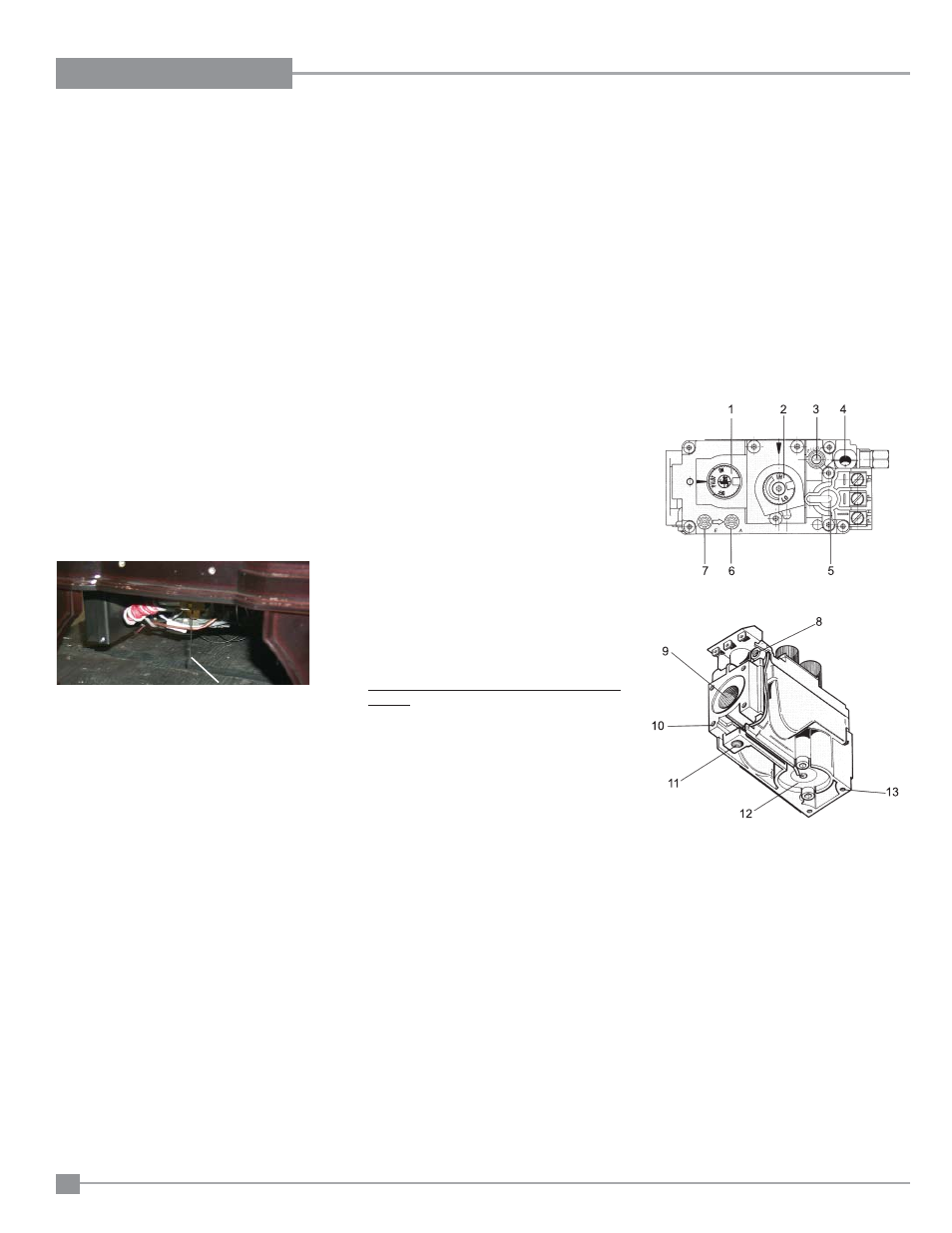

Valve Description

1) Gas on/off knob

2) Manual high/low adjustment

3) Pilot

Adjustment

4) Thermocouple

Connection

5) Main

Operator

6) Outlet Pressure Tap (Manifold Pressure)

7) Inlet Pressure Tap (Supply Pressure)

8) Pilot

Outlet

9) Main Gas Outlet

10) Flange Securing Screw Holes

11) Alternative TC Connection Point

12) Thermoelectric Unit

13) Additional Valve Mounting Hole

AERATION

ADJUSTMENT

The air shutter can be adjusted by moving the adjust-
ing wire up or down. The wire is accessed through
the bottom. Open the air shutter for a blue fl ame
or close for a yellower fl ame. The burner aeration
is factory set but may need adjusting due to either
the local gas supply or altitude.

Minimum Air Shutter Opening:
3/16"

Natural

Gas

1/4"

Propane

CAUTION: Carbon will be produced if air shutter
is closed too much.

Note: Any damage due to carboning resulting

from improperly setting the aeration
controls is NOT covered under warranty.

Note: Aeration Adjustment should only be

performed by an authorized FPI Installer
at the time of installation or service.

Pull adjustment wire

up or down to close aeration.

Closed - Tall yellow

Open - Short Blue
