Hampton® H15-1 Direct Vent Freestanding Gas Stove
43
MAINTENANCE
11) Carefully lift the burner tray assembly out.

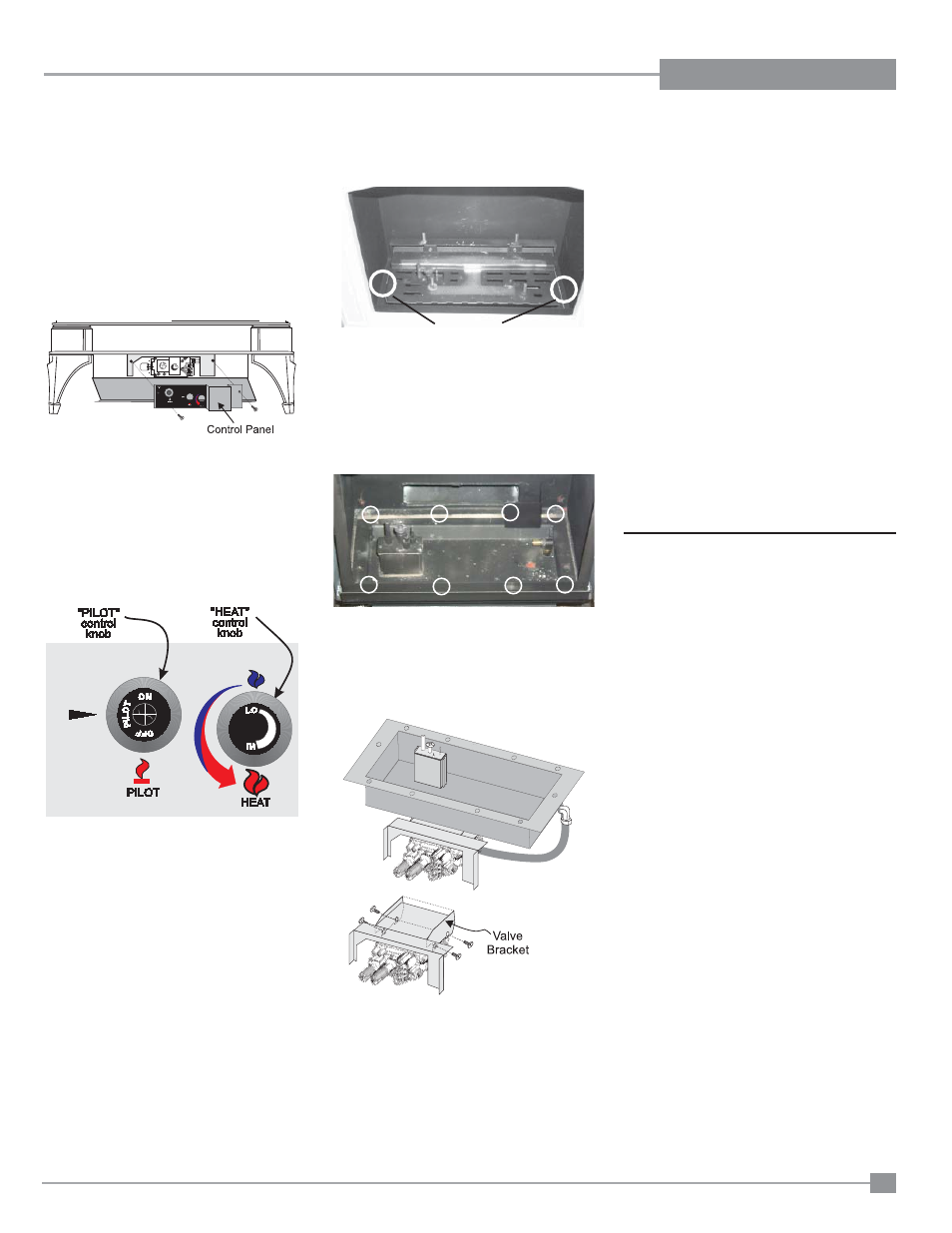

REMOVING VALVE
If your valve requires maintenance or replacement,
use the following instructions:
Note: Always close off the gas supply before
removing the valve.
1) If optional fan is installed, disconnect power
source to stove.
2) Remove access panel.
3) Disconnect gas line to stove.
4) Disconnect 3/8" NPT pipe from 90 o elbow
on valve or fl ex connector.
5) Disconnect the two (2) switch wires from
valve.
6) Disconnect piezo wire.
7) Lift off Cast Top, remove Cast Front and remove
Glass Door. See the "Glass Replacement"
section for removal instructions.
8) Carefully remove the logs and embers.
12) To remove the valve, remove the 4 screws (2
per bracket) that hold the valve to the valve
bracket assembly.
13) To replace the burner tray assembly, simply
reverse these instructions.
To remove valve from valve assembly, continue.
14) Remove two (2) thermopile wires.
15) Remove thermocouple with a 9 mm (metric)
wrench.
16) Remove pilot nut with an 11 mm wrench.
17) Remove valve to orifi ce nut with a 13/16" wrench.
18) Remove inlet pipe with pipe wrench. Note
orientation of 90 o elbow.
19) Remove two (2) phillips head M5 screws on
each side of the valve.
20) Remove valve and remove gas out 90 o brass
fi tting. Note orientation of fi tting.
INSTALLING
VALVE ASSEMBLY
1) To install a new valve assembly, reverse instruc-
tions for Removing Valve.
2) Check for leaks and manifold pressure. See
Gas Pressure Test instructions.
3) To reinstall valve, reverse instructions for remov-
ing valve assembly, steps 11-20.
9) Remove burner by removing the 2 screws
on each side, slide the burner to the left and
then lift the burner tray out.
Screws
Note: Use a magnetic type screwdriver if
possible.
10) Remove all 8 screws holding the burner tray
assembly in place. Remove defl ector.
