INSTALLATION AND OPERATING MANUAL
5
• Patented Lamp Shade reduces heat output
• Unparalleled Flexibility with Extensive Reach and Range of Motion
• Drift Free Balance Arm Design
• Quick & Easy Bulb Replacement
• Removable Sterilizable Handle
This manual will assist you in assembling your light, introduce some of its most important and
prominent features, and provide suggestions for its care. The light is intended for use in medical
specialty environments where illumination is required for various medical examinations and
procedures. The light must be operated with the safety of the user and patient in mind. Please read
this manual carefully and any other instructions prior installing the equipment.
2. Technical Description

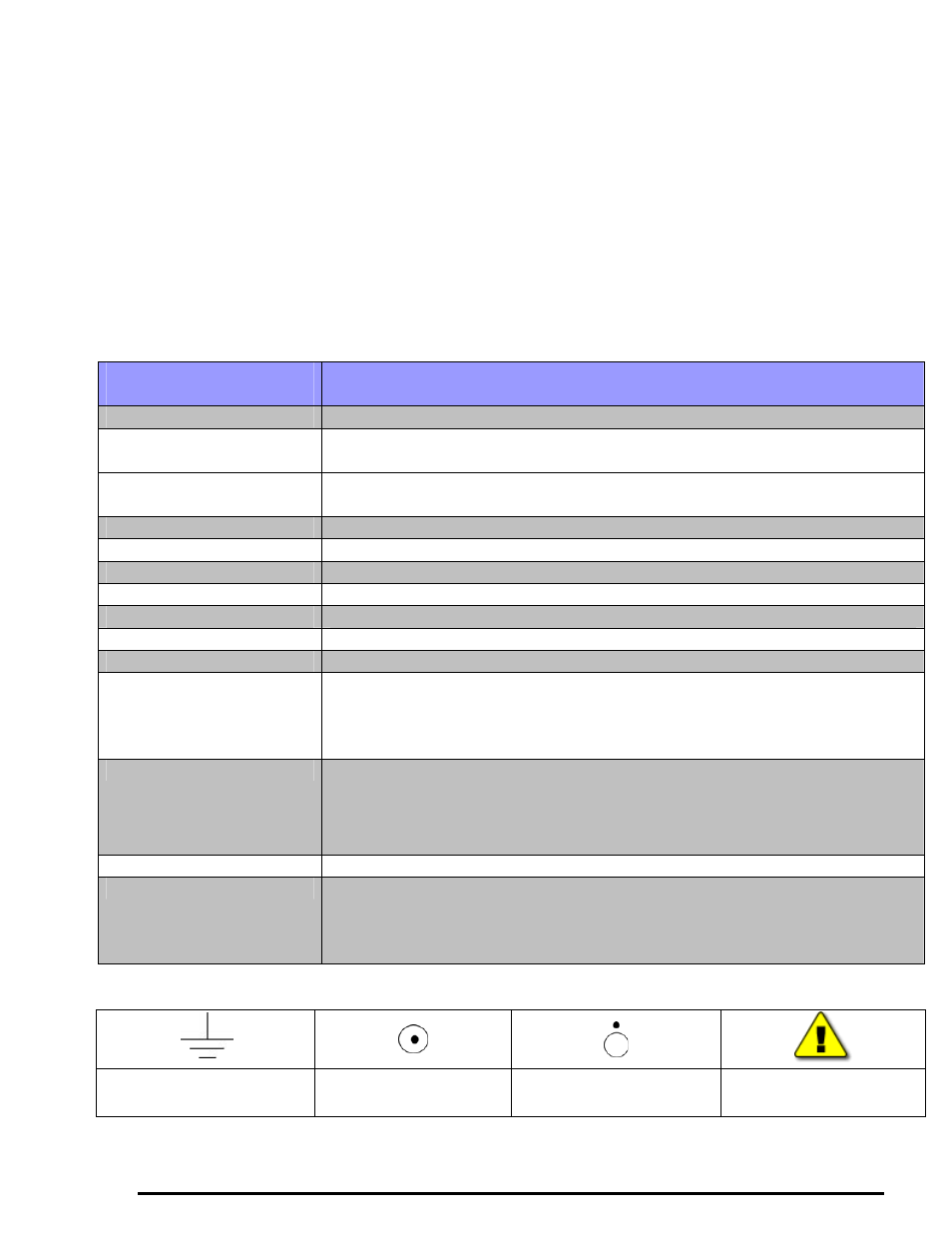

2.1 Technical Data
WARNING! Do not use this device in the presence of flammable anesthetics (EXPLOSION RISK)
SPECIFICATION
VALUE & CONDITION
Power supply 120V - 60Hz and 230V - 50Hz-60Hz (+/-10%)
Fuse 120V :Sunnex part# 18565 (2 AMP, 250V, 1/4” X 1-1/4”, SLOW BLOW)
230V: Sunnex part# 18641 (1.25 AMP, 250V, 5mm X 20mm, SLOW BLOW)
Nominal Effect 120Vac, 60Hz, 3 X 35W - 1.5A
230Vac, 50Hz, 3 X 35W - 1.0A
Light Source Halogen bulb - Dichroic 3 X 12V/35W/10°
Bulb Life 4,000 hours
Light Intensity 38,000 Lux at 1 Meter
Color Temperature 3,300 Degree Kelvin
Color Rendering Index 96
Total Irradiance 116W/m
2
Medical Standard Class II
Total Weight Ceiling – 56 lbs (25 Kg)
Ceiling Dual - 130 lbs (59 Kg) (including dual seismic bracket)
Wall - 64 lbs ( 29 Kg) (including wall board)
Mobile - 40 lbs ( 18 Kg)
Moment (One 29” [74cm] long ceiling arm) = 50 lbs X 57 inches = 2,850 lbs-inches
(322 Nm)
(One 39” [100cm] long ceiling arm) = 50 lbs X 67 inches = 3,350 lbs-inches
(379 Nm)
Mode of Operation Continuous
Certifications ETL Listed: CAN/CSA-C22.2 No. 601.1-M90
EN60601-1, UL60601-1, EN60601-2-41
UL60601-2-41, IEC 60601-1-2 (2001-09) 2nd edition (EN55011:1991, Group
I Class B)
2.2 Symbols
GROUND SWITCH ON SWITCH OFF CAUTION
