Refer to
Figures 8, 9 & 10 and Table 1 for mounting heights and appendix A for hole pattern of the
transformer housing and optional brackets & plates.
1. NEVER attempt to affix a ceiling light directly to a drop (false) ceiling, as many are
not designed to withstand the weight requirements of the lighting systems, and may
result in damage to the ceiling, the lighting unit or both. Additionally this may
present a situation where failure may present a hazard to persons, resulting in
injury.
2. The transformer housing should be mounted against a permanent member just
above the drop (false) ceiling.

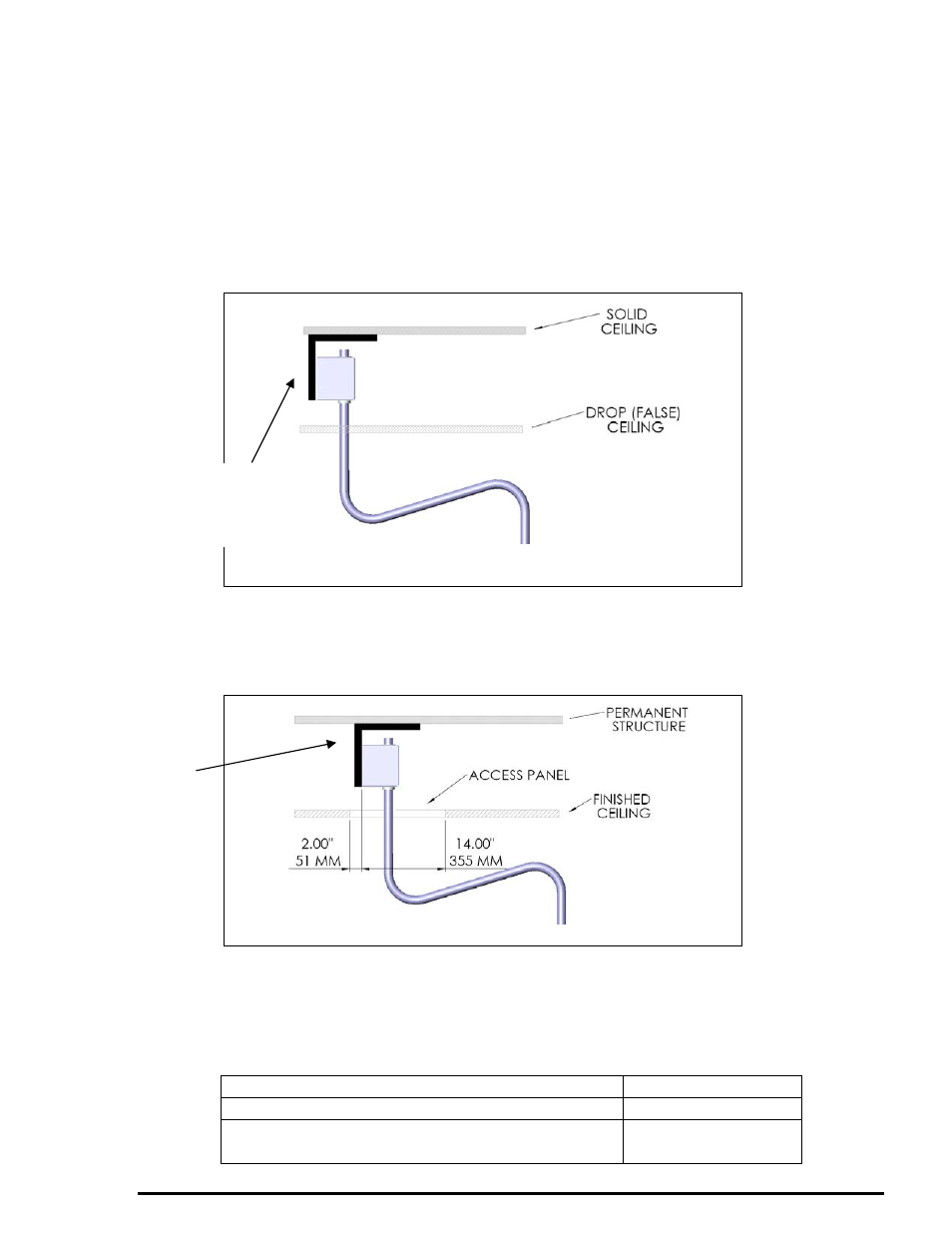

Figure 4
3. If during construction or remodeling, the ceiling surface is to be finished, it is
recommended that the installation of the light be accomplished first, leaving a small
access panel to facilitate access to the transformer housing and the safety fuses
mounted inside the mounting bracket.
Figure 5
4. Installations in which there is a distance of over 24 inches between the hard ceiling
surface and the drop (false) ceiling surface, often requires construction of an
additional support structure.
5. Weight:
One ceiling light (29” horizontal arm) 56 Lbs (25 Kg)
One ceiling light (39” horizontal arm) 58 Lbs (26 Kg)
Dual ceiling lights (29” horizontal arm)
plus dual seismic bracket 130 Lbs (59 Kg)
L-BRACKET
NOT
INCLUDED
L-BRACKET
NOT
INCLUDED
