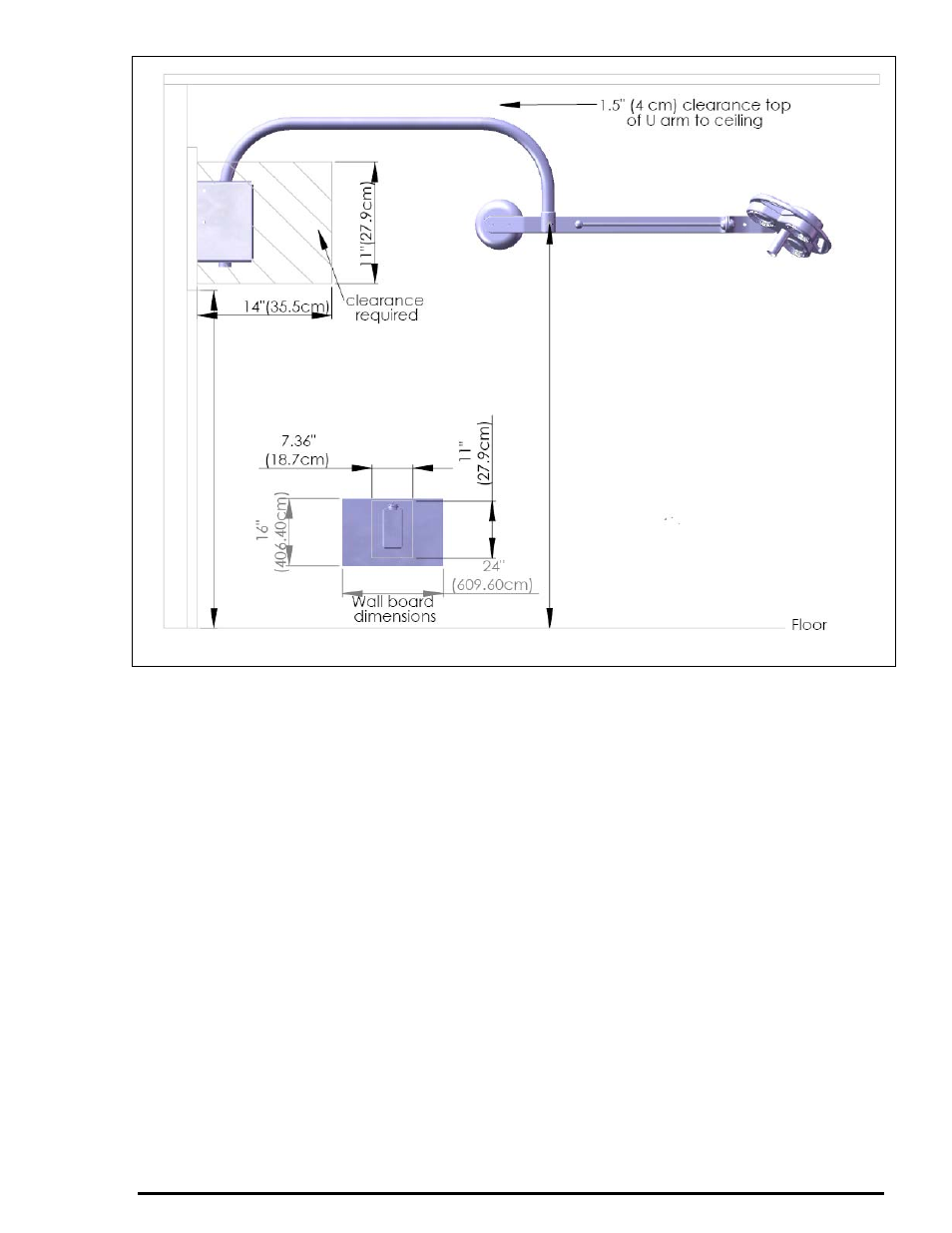

Figure 13
3. Measure and mark on the wall board two vertical lines for three lag bolts, right and left of the
wall board. Drill three holes on each line, approximately the size of the lag bolts chosen for
mounting.
RECOMMENDATION: LAG BOLTS OF AT LEAST 1/4” X 5” (M8 X 130mm) LONG,
WITH WASHERS, SHOULD BE USED. BE SURE TO DRILL APPROPRIATE PILOT
HOLES OF ADEQUATE DEPTH TO AVOID BREAKING THE BOLTS.
75” (190cm)
64.875” (165cm)
floor to bottom of
wall board
