Heavy Duty Plastic Lockers – 40000 Series

Locker Installation Instructions

Note: Refer to your layouts for proper locker position. The first locker is usually installed at a corner or at the end of a run.

IMPORTANT NOTE: Make sure each locker is square and level before securing into place. The lockers may be square, but not level, so be

sure to check both. Use shims as needed.

1. Position the first locker according to your layouts. Square and level the locker using shims as required. Secure the locker to the wall in two
places with the two ¼” x 1-3/4” Tapcon screws. With the screws centered across the width of the locker, place one near the top and one near the

bottom as shown in the illustration below.

2. Postion the second locker next to the first locker. Square and level the lockers using shims as required to align the tops and fronts.

IMPORTANT: Lockers must be installed flush with adjacent lockers.

3. Temporarily clamp the lockers together at the top and bottom. Drill four (4) 9/32” clearance holes through one locker as shown in the illustration

below. The holes should be located 1-1/2” from the front of the locker and evenly spaced, top to bottom. Fasten the lockers to each other using the
#10 x ¾” security torx screws provided.

4. Position additional lockers according to your layouts. Square and level each locker using shims as required. Fasten lockers to each other using

the #10 x 3/4” security torx screws provided.

5. Secure each locker to the wall in two places with the appropriate wall installation hardware provided. Use two 1/4” x 1-3/4” Tapcon screws,

placing one near the top and one near the bottom of the locker as shown below.

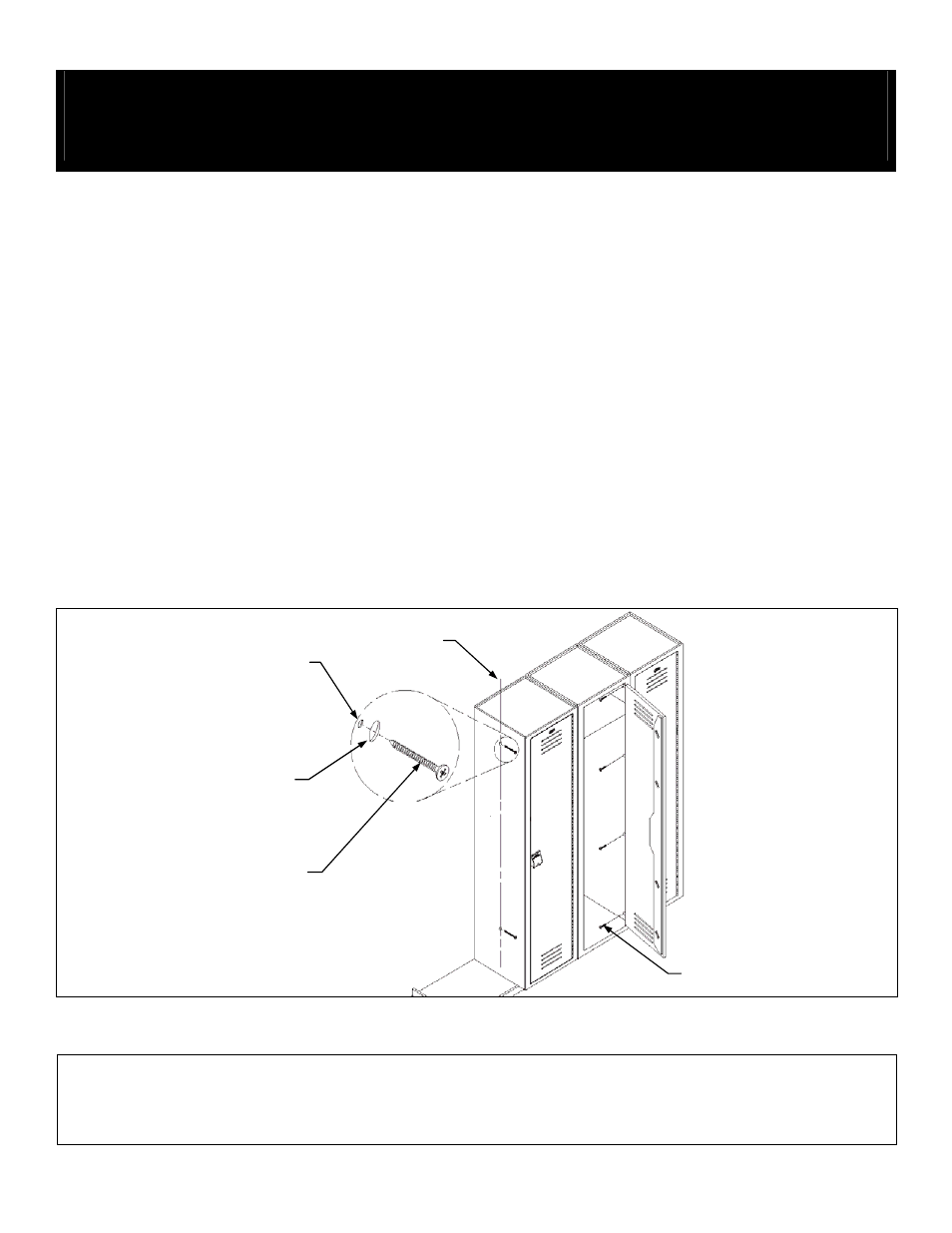

CENTERLINE

OF LOCKER

BACK

DRILL 3/16” DIA. PILOT HOLE

IN CONCRETE OR BLOCK

WALL

DRILL 9/32” DIA. CLEARANCE HOLE

THROUGH BACK OF LOCKER

1/4” x 1-3/4” TAPCON SCREW

#10 x 3/4” SECURITY TORX SCREWS

SALSBURY INDUSTRIES

1010 East 62

Street, Los Angeles, CA 90001-1598

Phone: 1-800-562-5377 Int’l Phone: 323-846-6700

Fax: 1-800-562-5399 Int’l Fax: 323-846-6800

www.lockers.com engineering

lockers.com

Installation instructions are provided as general guidelines. It is advised that a professional installer be consulted. Salsbury Industries assumes no product assembly or installation liability.
