Installing / changing the milling fittings
If the RM200 has been ordered or supplied with
milling fittings the mortar, pestle and scraper will
have already been adjusted at the works.
If a new set of milling fittings is installed the pestle
and scraper must be readjusted or positioned.
The mortar and pestle should always be made of the
same material.

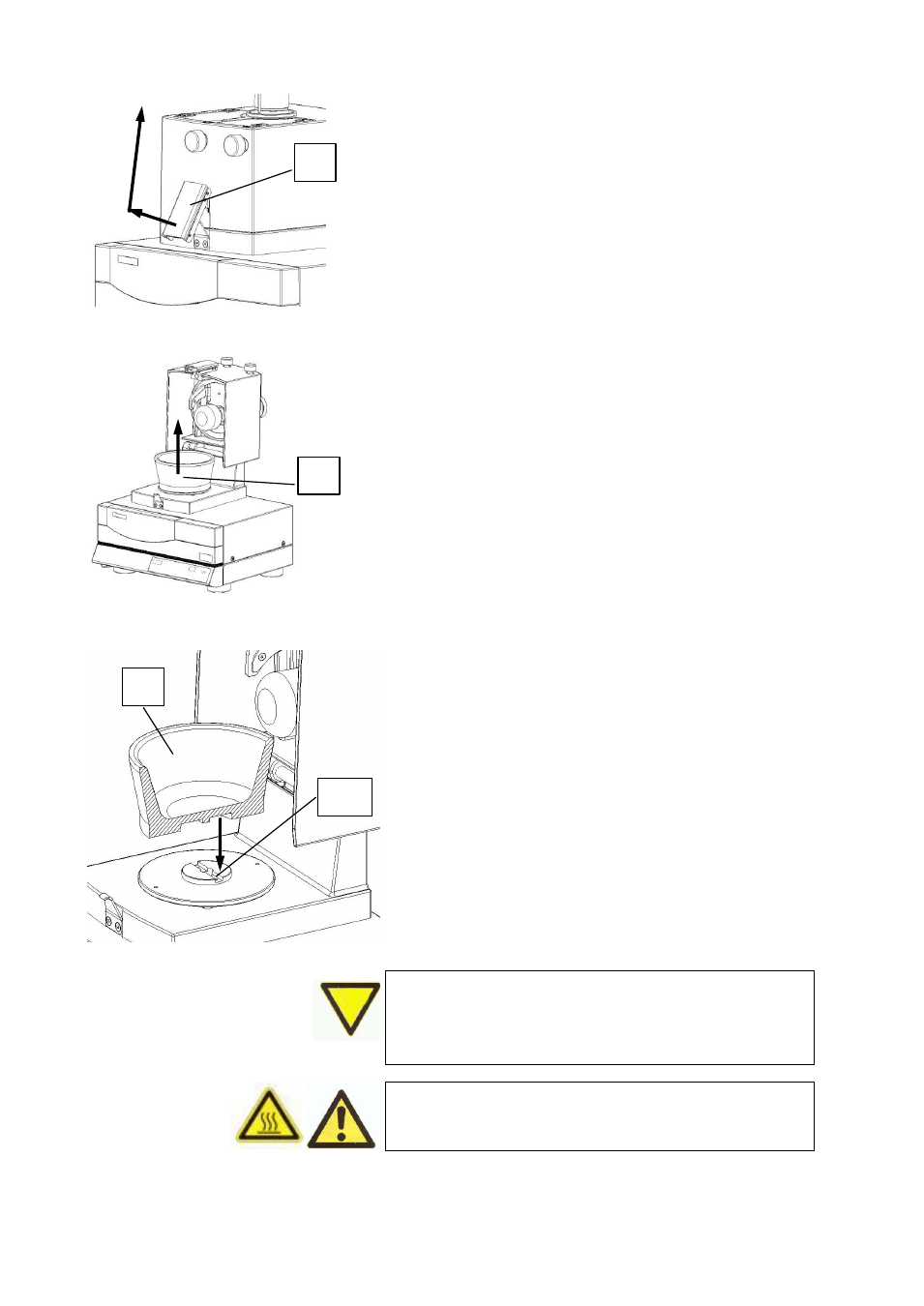

Fig. 1
Installing or changing the mortar
• Hold the closing grip F at the bottom and pull.
Fig.1
• Pull the hood upwards with the grip to open. Fig.1
• Remove mortar W Fig.2
• Place a new mortar in position and lock this in the
groove of the plate Tn Fig.3
Fig. 2
Fig. 3
Ensure that the mortar has engaged properly in the
groove of the plate.
Otherwise the mortar will be damaged when starting
the machine.
When removing and opening heated milling cups
protective gloves must be worn.
Danger of burning the hands.
F
W
Tn
T
W
