View of milling chamber – Retsch RM 200 User Manual
Page 15
11/6/2012
15
Retsch GmbH 0002

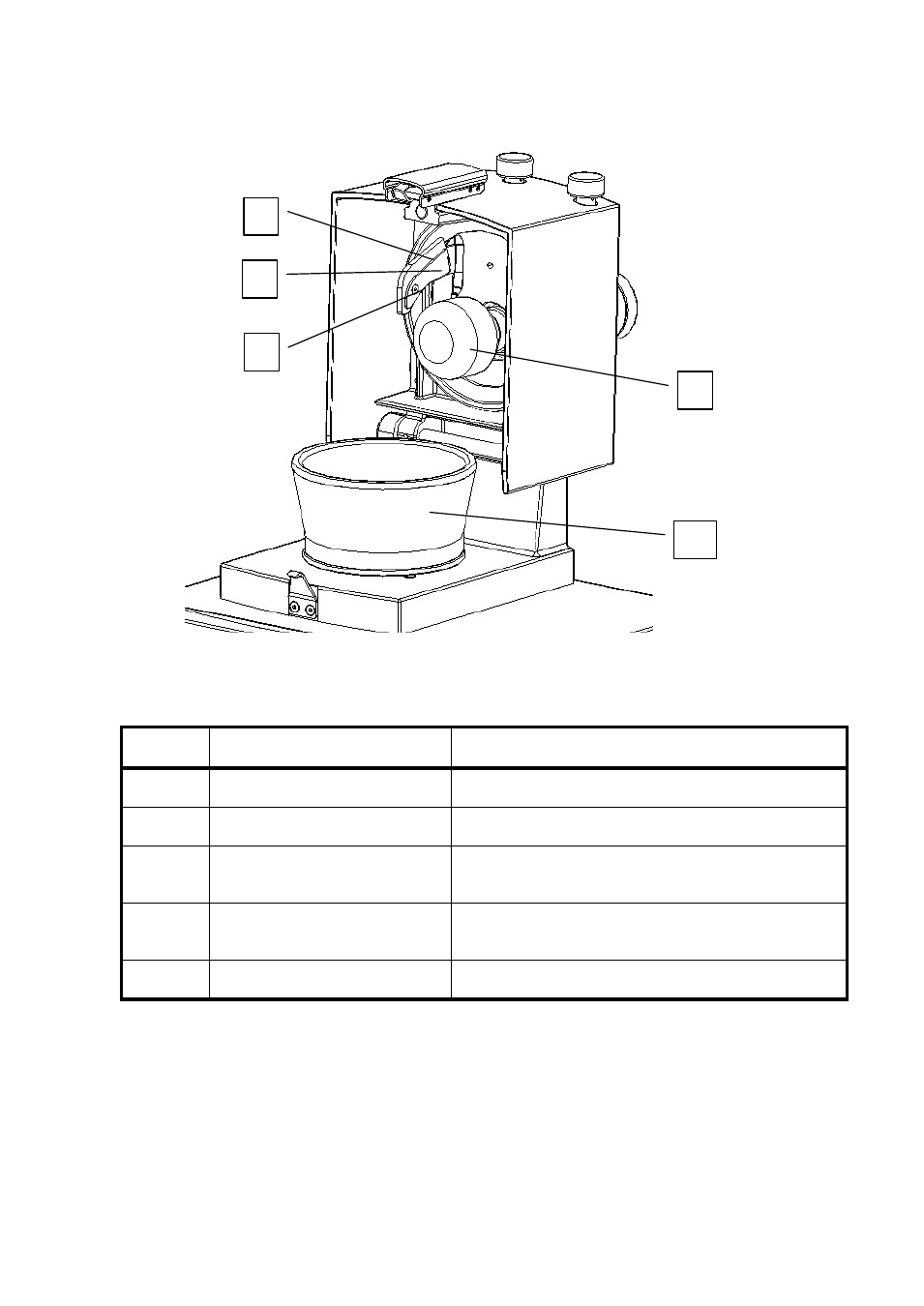

View of milling chamber
Element Description
Function
V
Pestle
Crushes and mills the material
W
Mortar
Contains the material to be milled
X
Scraper
Mixes the milled material and scrapes off
material adhering to the mortar
Y
Fixing screw for scraper
Holds the scraper with the screwed-on fixing
clamp
Z
Fixing clamp for scraper
Clamps the scraper
V
W
Y
X
Z
