3 Technical Data
Pos : 4.3 /00020 BD A Software/20005 PM GC Kapitelsamml ung/Ü berschriften/1.1 Ü bersc hriften/11 Betriebs beding ung en @ 0\mod_1209388949288_9.doc @ 656 @ @ 1
3.1 Operating Conditions
Pos : 4.4 /00020 BD A Software/20005 PM GC Kapitelsamml ung/Ü berschriften/1.1.1 Ü bersc hriften/111 T emperatur ber eich @ 0 \mod_1209388981003_9.doc @ 662 @ @ 1
3.1.1 Temperature Range
Pos : 4.5 /00020 BD A Software/20005 PM GC Kapitelsamml ung/0005 T ec hnis che D aten/Modul Temperaturbereic h @ 0\mod_1210668712505_9.doc @ 935 @ @ 1
The temperature range is determined by the max. permissible temperature inside
the wireless grinding jar cover (measurement electronics) of 70°C.
An additional sensor measures the temperature of the measurement unit inside the
wireless grinding jar cover. On exceeding 70°C, a warning is outputted on the
screen.
Monitor the temperature of the measurement unit inside the wireless grinding
jar cover at regular intervals to avoid damage to the measurement
electronics.
When you move the mouse cursor over the text box of the grinding jar, the
momentary temperature inside the wireless jar cover is displayed as a small tool tip
beside the mouse cursor. (See image: Temperature inside the wireless grinding jar
cover)

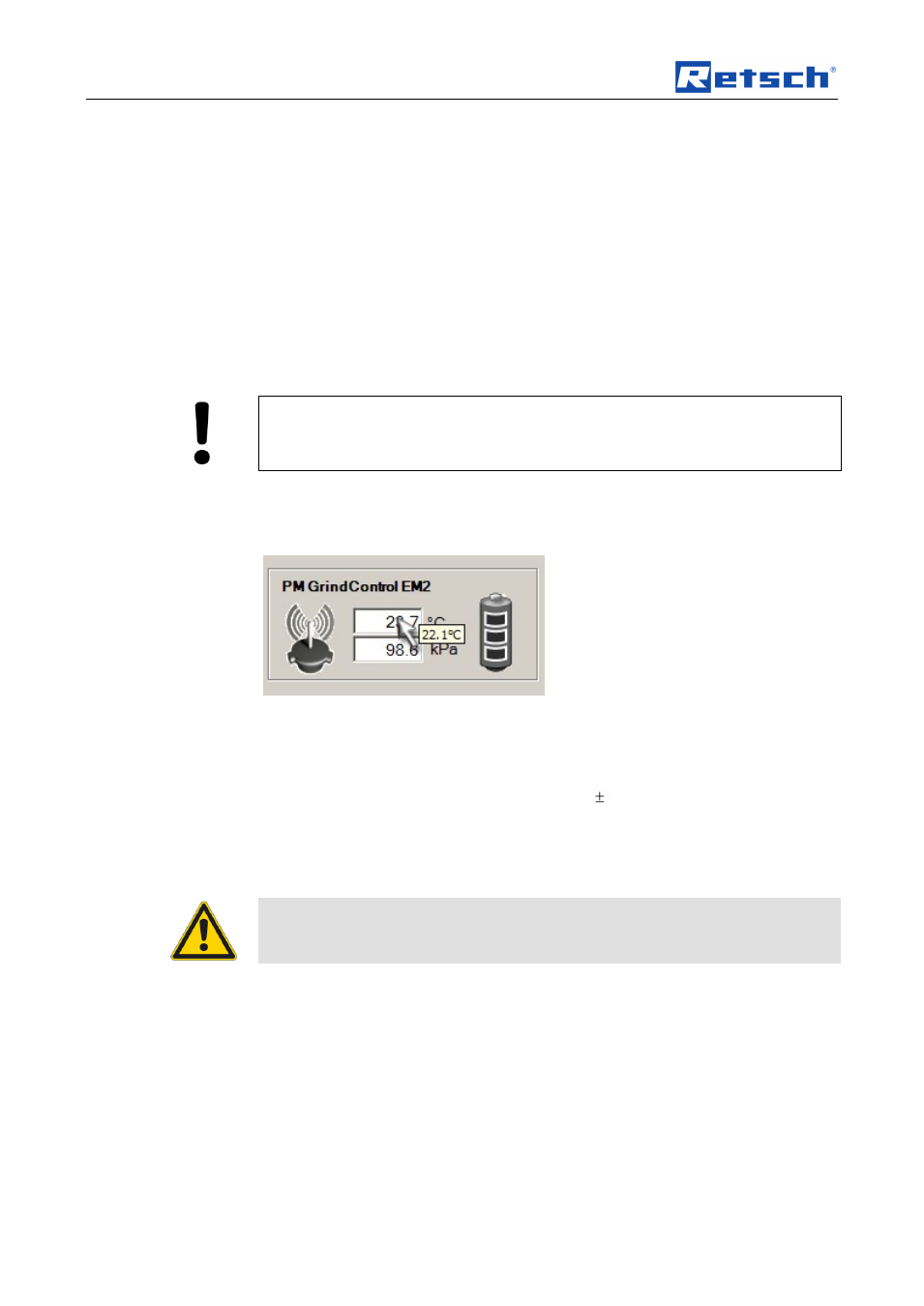

Fig. 1: Temperature inside the wireless grinding jar cover
Measurement Resolution of the Temperature Measurement : 0.1 °C
Accuracy of the Temperature Measurement: 1%
Pos : 4.6 /00020 BD A Software/20005 PM GC Kapitelsamml ung/Ü berschriften/1.1.1 Ü bersc hriften/111 Dr uc kber eiche @ 0\mod_1209389035861_9.doc @ 668 @ @ 1
3.1.2 Pressure ranges
Pos : 4.7 /00020 BD A Software/20005 PM GC Kapitelsamml ung/0005 T ec hnis che D aten/Modul Druc kbereic h @ 0 \mod_1210668713068_9.doc @ 942 @ @ 1
– Maximum permissible pressure range
inside the grinding beaker:
up to 5.0 bar (500 kPa)
Pos : 4.8 /00020 BD A Software/20005 PM GC Kapitelsamml ung/Warnhinweis e/M odul Spannsc hrauben des Spannring es fes t anzi ehen! II @ 0\mod_1222778313010_9.doc @ 2696 @ @ 1
Screw the clamping screws on the clamping ring tight!
Maximum internal pressures of 5.0 bar are only permissible where there is
sufficient initial tension on the clamping ring.
Pos : 4.9 /00020 BD A Software/20005 PM GC Kapitelsamml ung/Ü berschriften/1.1.1 Ü bersc hriften/111 Dr ehz ahlbereic h @ 0 \mod_1209389071782_9.doc @ 674 @ @ 1
3.1.3 Rotational speed range
Pos : 4.10 /00020 BDA Softwar e/20005 PMGC Kapitels ammlung/0005 T echnisc he Daten/M odul Dr ehzahlbereic h @ 0\mod_1210668713599_9.doc @ 949 @ @ 1
Rotational speed range: corresponds to the maximum rotational speeds of the PM
100 or PM 400 respectively
Pos : 4.11 /00020 BDA Softwar e/20005 PMGC Kapitels ammlung/Ü bersc hriften/1.1.1 Übersc hriften/111 Sender R eichweite @ 0 \mod_1209389149595_9.doc @ 686 @ @ 1
3.1.4 Transmitter range
Pos : 4.12 /00020 BDA Softwar e/20005 PMGC Kapitels ammlung/0005 T echnisc he Daten/M odul Sender R eic hwei te @ 0\mod_1210668715647_9.doc @ 977 @ @ 1
Transmitter range: approx. 15 m in buildings
Pos : 4.13 /00020 BDA Softwar e/20005 PMGC Kapitels ammlung/Ü bersc hriften/1.1.1 Übersc hriften/111 Betri ebsz eit @ 0\mod_1209389101579_9.doc @ 680 @ @ 1
