6.5 Cleaning the Air Duct in the Pressure Sensor
Pos : 8.12 /00020 BDA Softwar e/20005 PMGC Kapitels ammlung/F unk Mahlbec herdec kel/Modul Rei nigung der Luftkanäle Druc ksens or @ 0\mod_1216715881345_9.doc @ 2040 @ @ 1
The air ducts (20) in the pressure sensor can be cleaned with a vacuum cleaner
too if they get dirty.

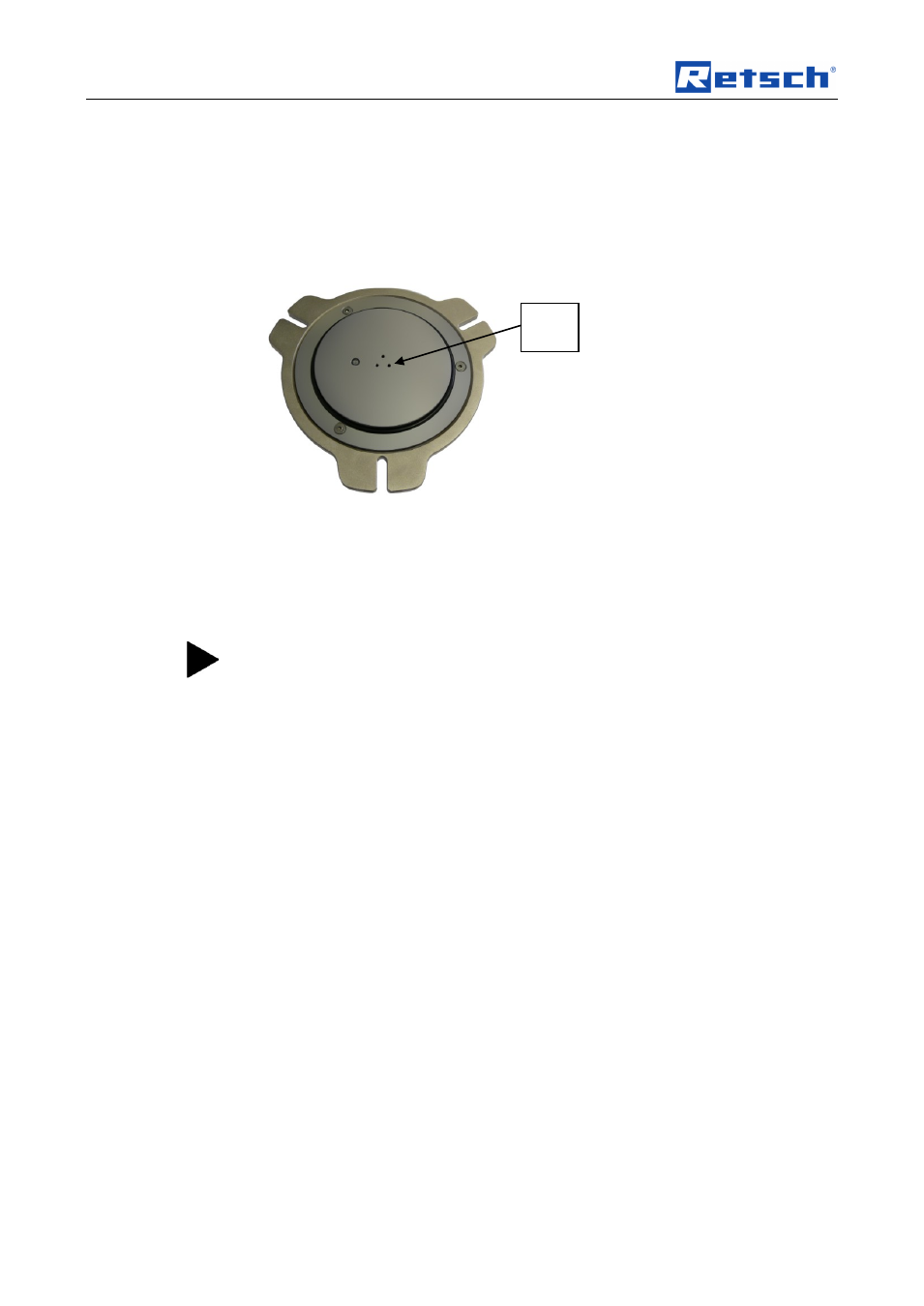

Fig. 19: Air ducts
Pos : 8.13 /00020 BDA Softwar e/20005 PMGC Kapitels ammlung/Ü bersc hriften/1.1 Übersc hriften/11 Beg asungs-Funkti on @ 0\mod_1208936499587_9.doc @ 493 @ @ 1
6.6 Gassing Function
Pos : 8.14 /00020 BDA Softwar e/20005 PMGC Kapitels ammlung/F unk Mahlbec herdec kel/Modul di e Beg asungsfunktion @ 0\mod_1214824967809_9.doc @ 1830 @ @ 1
To enable the PM GrindControl to be used for grinding in a controlled atmosphere
also, the kit contains a cover baseplate with venting holes for the gassing function
(centring plate with venting holes).
When using the gassing function, make sure the gassing channels are free.
The venting holes can also be cleaned with a vacuum cleaner too if they get dirty.
