6.7 Exchanging the Cover Baseplate
Pos : 8.17 /00020 BDA Softwar e/20005 PMGC Kapitels ammlung/F unk Mahlbec herdec kel/Modul Austausc h der D ec kelgrundplatte @ 0\mod_1214313457521_9.doc @ 1780 @ @ 1

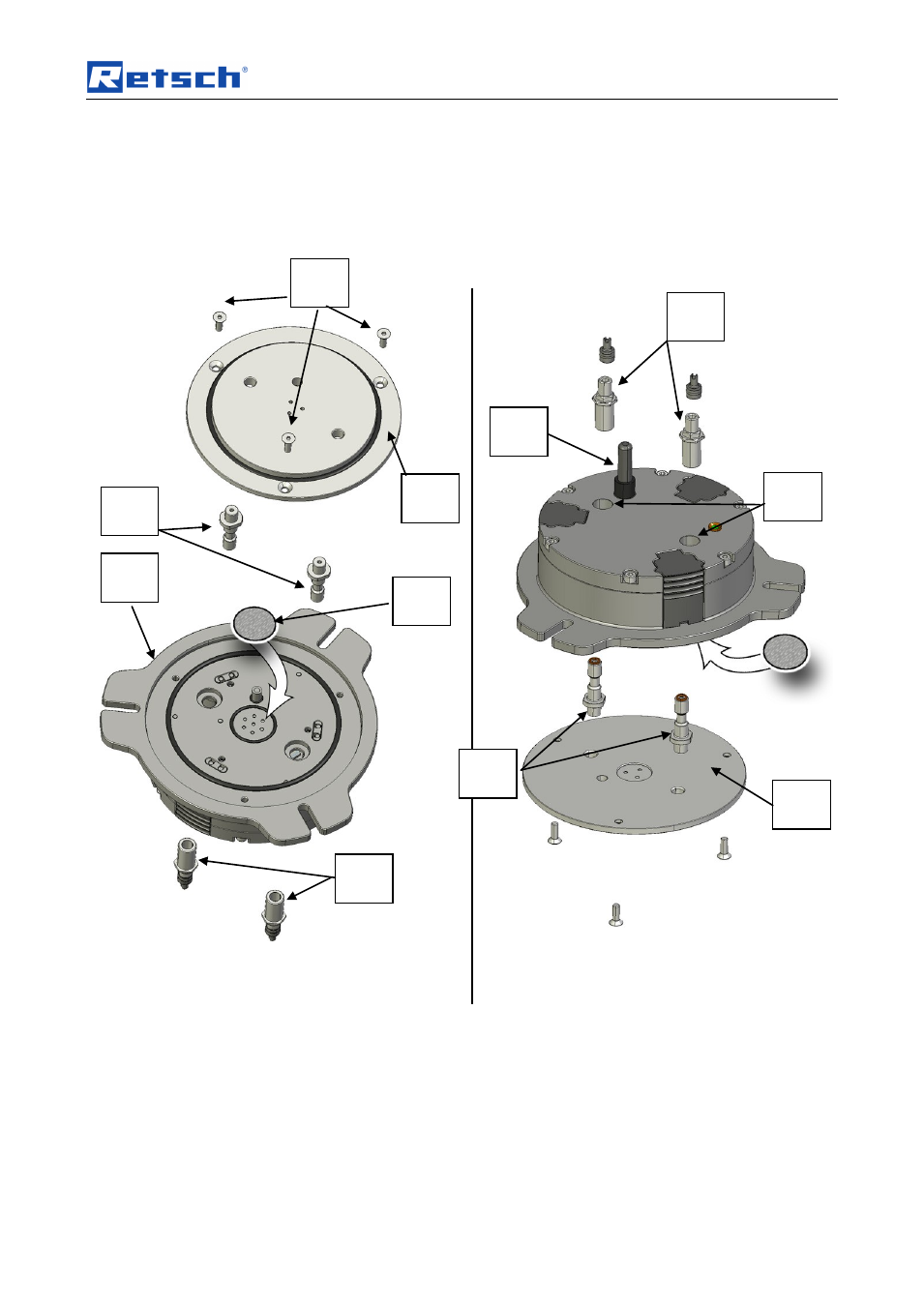

Fig. 43: Assembly of the cover baseplate and the de-aeration parts
The following steps are required to replace the pre-assembled standard cover
baseplate (centring plate standard) with the cover baseplate which has venting
holes for the gassing function (centring plate with ventilation holes):
Required tools:
13-mm open-jaw wrench
Hexagon socket screw key 2.5 mm
