Count!Guard Manual 16

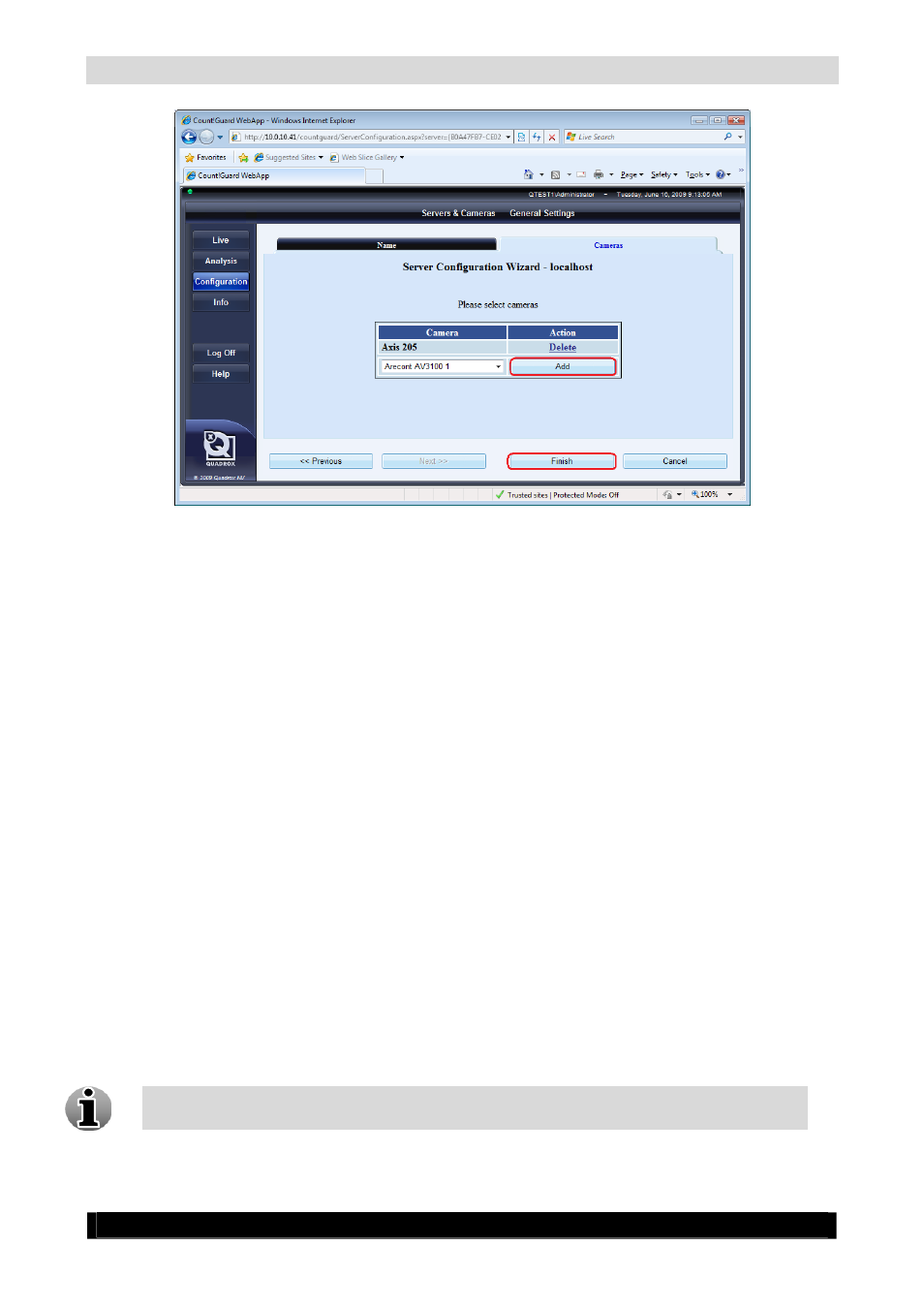

Add Camera Screen
To go back to the Servers and Cameras page without making changes, click Cancel button.
3.2.2.2 Delete camera
To delete a camera , execute the following step:
 Click the Delete link on the Servers & Cameras page.
Your camera has been deleted.
3.2.2.3 Edit & Configure camera (Counting Algorithm)
3.2.2.3.1 Camera and Positioning requirements
Before we can start the camera configuration, check first if the following requirements are met. Not
meeting these requirements may lead to inaccurate counts and abnormal behavior of the
Count!Guard application.
Requirements:
 The camera is positioned higher than 2.50 meters (8.2 feet).
 The camera is mounted vertically (horizontal and vertical deviation angle = 0°). This means
it is looking straight down.
The vertical deviation angle may go up to 30° but can influence the counting accuracy.
The vertical angle is the angle measured in the flow direction of the moving persons.
 The camera delivers +/-25 fps to the WebCCTV server.
 The image resolution has to be at least QVGA (320x240).
