TOW-BAR
169784 32 Revision A

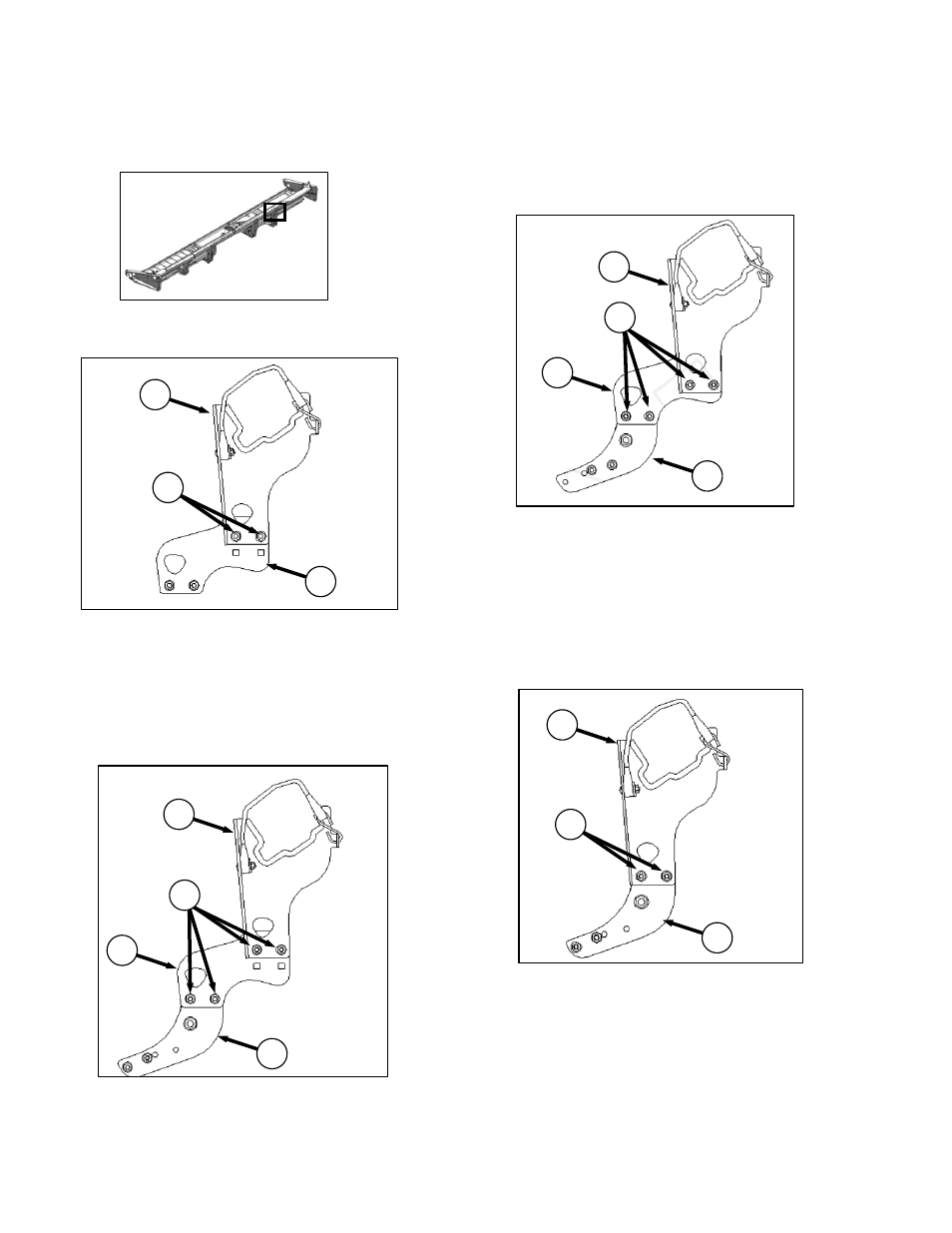

B. RIGHT SIDE CRADLE
ASSEMBLY
I. WINDROWER 30 FT
a. Retrieve cradle (A), and support (B from kit.
b. Assemble parts as shown with two 3/8 NC X 1.0
LG carriage bolts (C) and flanged smooth face
lock nuts.
c. Tighten hardware.
II. COMBINE 30 FT RIGID
a. Retrieve cradle (D), extension (E), and support (F)
from kit.
b. Assemble parts as shown with four 3/8 NC X 1.0
LG carriage bolts (G) and flanged smooth face
lock nuts.
c. Tighten hardware.
III. COMBINE 30 FT FLEX
a. Retrieve cradle (H), extension (J), and support (K)
from kit .
b. Assemble parts as shown with four 3/8 NC X 1.0
LG carriage bolts (L) and flanged smooth face
lock nuts.
c. Tighten hardware.
IV. ALL 35-45 FT
a. Retrieve cradle (M), and support (N) from kit.
b. Assemble parts as shown with two 3/8 NC X 1.0
LG carriage bolts (O) and flanged smooth face
lock nuts.
c. Tighten hardware.
G
D
E
F
C
A
B
O
M
N
H
L
J
K
