MacDon D65 - Manual (Page 25)

LIGHTS
169784 23 Revision A

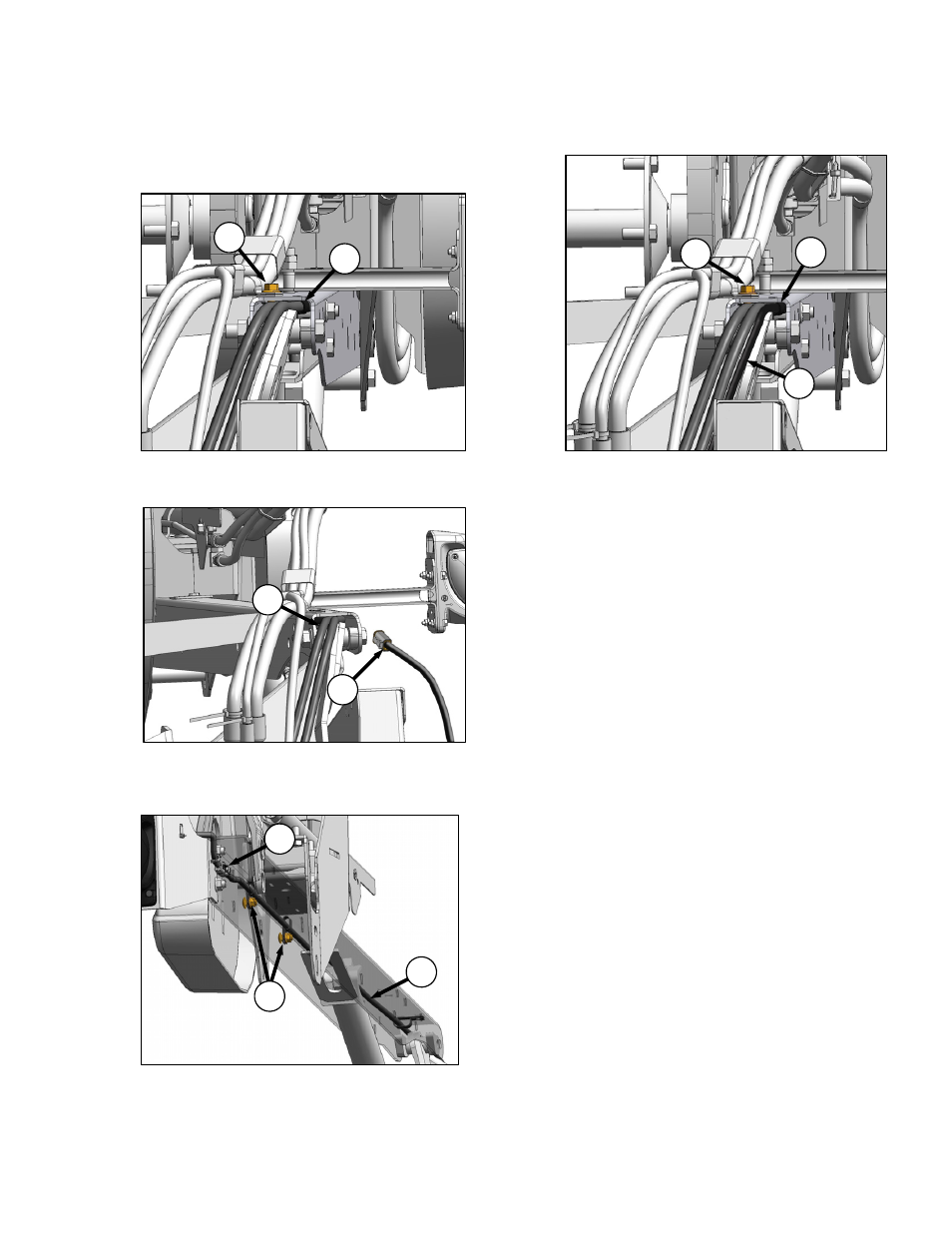

B. INSTALL LIGHT WIRING
HARNESS
a. Retrieve wiring harness from transport kit.
b. Remove bolt (A) and remove inside clamp (B) at
aft end of reel arm.
c. Feed the long portion with the square connector
(C) into reel arm aft end. Hoses (D) inside reel
arm may need to be moved aside.
d. Route harness (E) to forward end of arm and
make connection (F) at light.
e. Secure harness to inside of reel arm with two
clamps (G), 3/8 NC X 0.75 LG carriage bolts, and
smooth face locknuts.
f. Place harness (E) and hoses in clamp (B) at aft
end of arm and secure inside arm with existing
hex bolt (A) and nut.
B
A
C
D
F
E
G
A
E
B
