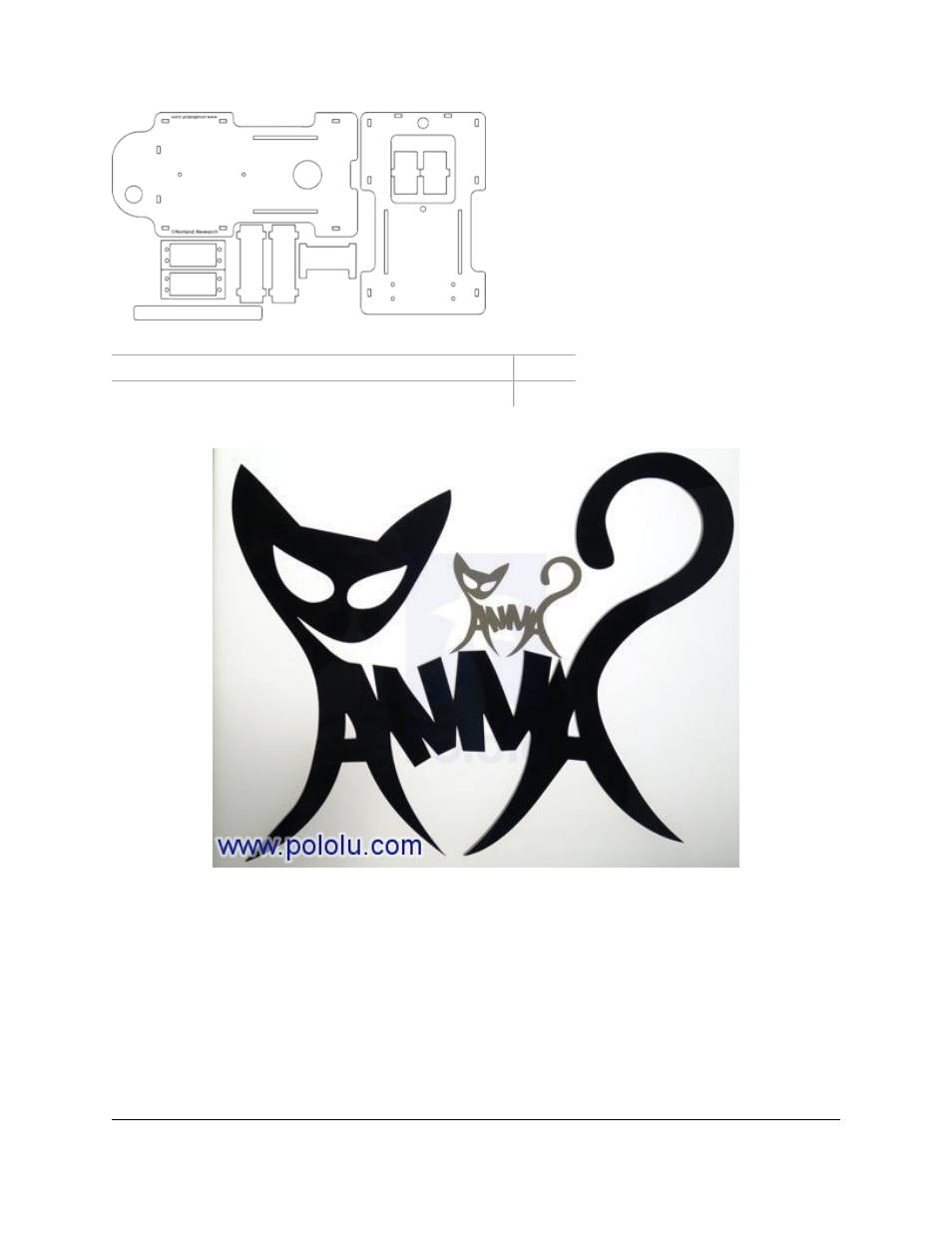

CAD drawing of the calculator robot chassis.
Pricing
One set (minimum order applies): $25.00
Two sets (discounted cutting rate for longer cutting time): $35.00
6.g. Laser Cutting Example: Acrylic Cat Logo
This custom laser-cut logo for Anna started as a pencil sketch on a cocktail napkin. To laser-cut any design, we need a
vector-format drawing file. We can draw the part on the computer for you, or you can draw it yourself using a vector
drawing or CAD program (CorelDRAW, Adobe Illustrator, TurboCAD, etc.).
The smaller cat is around 2.3" x 3" and was cut from 1/8" transparent gray acrylic; the larger cat was created from the
same file but enlarged to 9" x 11.5", and it was cut from 1/4" black acrylic. Vector-format drawings can be resized to
the size you need (unlike bitmaps, you do not get “jagged edges” when you resize vector drawings), and we can cut
parts up to 49.5" x 35", so this kitty could be made as large as 35" x 45"!
