CAD drawing for the dinosaur puzzle.
As you can see from the picture to the right, the
assembled pterosaur has a whopping 4-foot wingspan.
It is comprised of 21 two-dimensional pieces laser cut
from 1/8" acrylic. Each piece of the puzzle has slots for
connecting to other pieces; all the parts fit snugly so
the pterosaur stays intact. Mounting holes in the head
and spine are available for hanging the completed 3-D
dinosaur puzzle from the ceiling.
The size and quantity of parts for this dinosaur puzzle
makes it a longer cutting job, but we offer discounted
rates for such jobs to help keep your costs down.
This puzzle design was based on a small, wooden
dinosaur puzzle available at many hobby shops; below

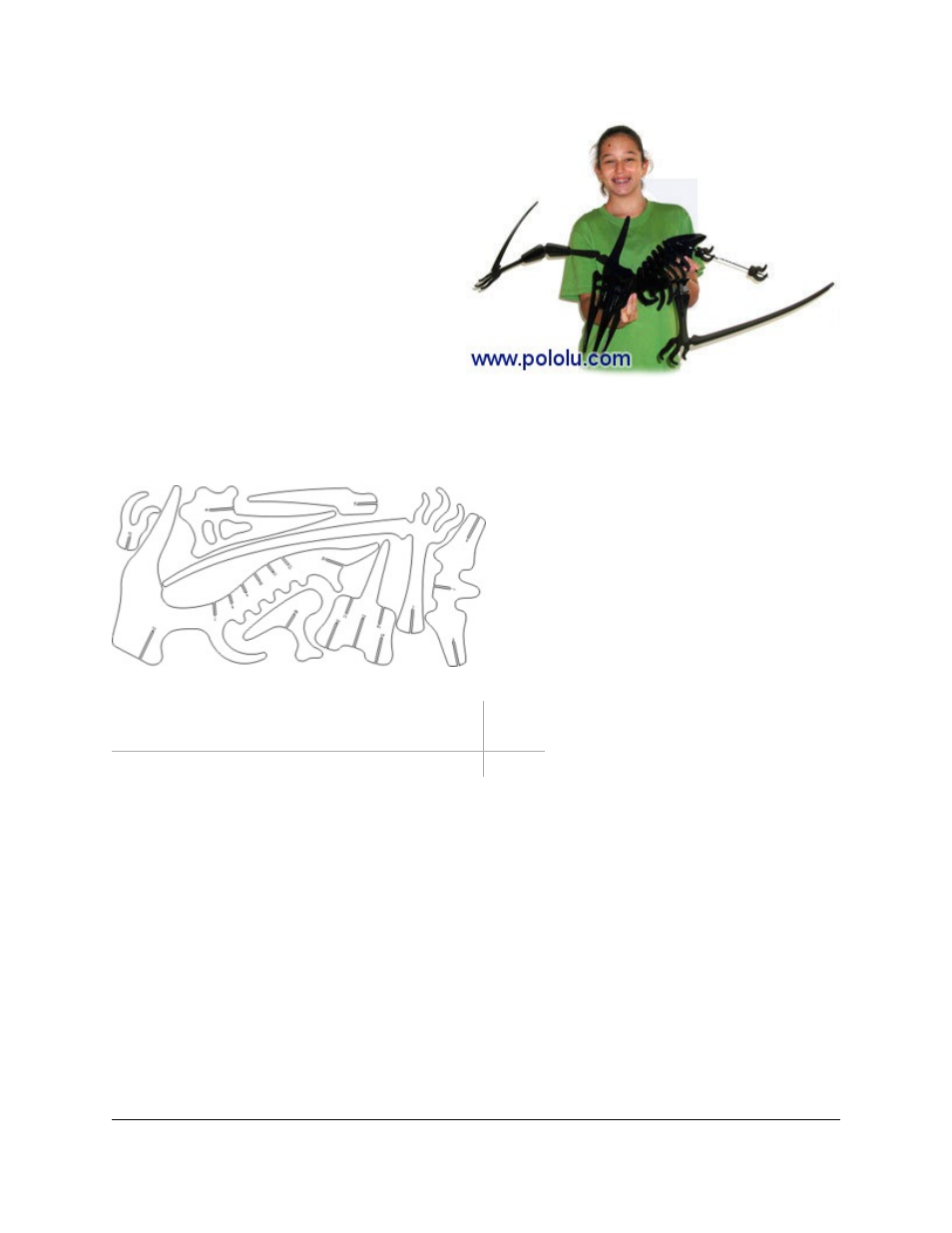

is the drawing we created to cut some of the parts for
our puzzle. If you would like to design a similar dinosaur puzzle as a unique gift or a fun decoration for your living
room, you can use our laser cutting service to create your own giant 3-D dinosaur puzzle, or anything else you can
think of – if you can draw it, we can cut it!
Pricing
Cutting cost: $68.00
Material cost for 5 sq. ft. of 1/8" transparent gray acrylic $20.00
This custom 3-D petrosaur puzzle shipped for: $88.00
