Opticon PHL 7200 Quick Guide - Manual

PHL-7200

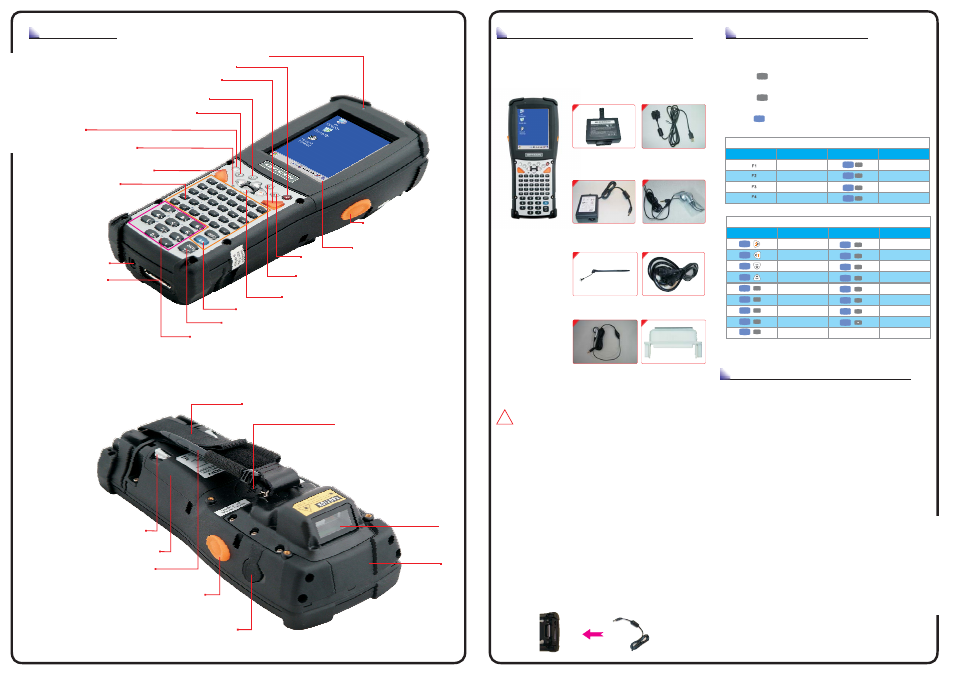

OVERVIEW BEFORE GETTING STARTED BEFORE GETTING STARTED
1. Open the package and check every
accessory:
Main Unit
Quick Guide Quick Guide
(Not Shown) (Not Shown)
CAUTION:
!
The PHL-7000 will be powered on when you install Battery Pack.
Power off PHL-7000 after touch screen calibration and charge
batteries for at least
hours. Do not turn on the PHL-7000 for the
first time until batteries are charged for at least hours. Always
charge batteries at 0 ~45 (32 ~113 ) environment temperature.
The Charger LED will be turned to green color when battery charging
is finished.
℃ ℃ ℉ ℉
6
6
2. Installing the Battery Pack
1) Detach the Hand Strap.
2) Turn the battery cover latches downwards and lift
the battery cover away.
3) Insert the Battery Pack into the battery compartment with the
label facing out, and make sure the battery fits into place.
4) Place the battery cover by inserting the top first, and then press
the bottom in firmly. Turn the battery cover latches upwards to
secure the cover to the PHL-7000.
3. Connect Power Adapter to Charge the PDT
1) Insert DC connector into bottom case of the PHL-7000.
2) Connect Power Cord to power adapter.
3) Insert power cord to AC Outlet.
USING THE KEYPAD USING THE KEYPAD
The keypad comprises 52 keys (alpha, numeric,
arrow, functional and Fn) and 4 scan buttons.
1) Press “ ” to onetime toggle between upper-case character and
lower-case ones.
2) “ ” to toggle between upper-case character and
lower-case ones.
3) Press “ ” to toggle Function Mode.
Press
Special Functions
Sequence of Keys Description Sequence of Keys Description
Launch of Application 1
Launch of Application 2
Launch of Application 3
Launch of Application 4
Lithium-ion Battery Packs might get hot, explode, ignite
and/ or cause serious injury in case of misuse.
Please follow the safety warnings listed below:
BATTERY PRODUCT SAFETY
Special Functions
Sequence of Keys Description Sequence of Keys Description
Increase of Brightness
Reduction of Brightness
Page Down
Page Up
Volume Up
Volume Down
@
’
＋
Paste
Delete
－ Minus Sign
Copy
&
＊
Space
Start Menu
PHL-7200
A.Do not throw the battery into fire. Do not expose the battery to
high temperatures.
B.
C.
D.
E.
F.
G.
H.
I. In the event the Battery Pack leaks and the fluid gets into one's eye,
do not rub the eye.
Rinse well with water and immediately seek medical care.
If left untreated,the battery fluid could cause damage to the eye.
Do not connect the positive Battery Pack with negative
Battery Pack to each other with any metal object (like wire).
Do not carry or store Battery Pack together with metal objects.
Do not pierce the Battery Pack with nails or drills, strike the battery
pack with a hammer, step on the Battery Pack or otherwise expose
it to strong impacts, shocks or excessive force.
Do not solder directly onto the Battery Pack.
Do not expose Battery Pack to liquid or allow the battery contacts
to get wet.
Do not disassemble or modify the Battery Pack.The Battery Pack
contains safety and protection measures, which, if damaged,
may cause the Battery Pack to generate heat, explode or ignite.
Do not discharge the batteries outside the PHL-7000. Do not use
the battery in another device then the PHL-7000 or IRU-7000
series battery chargers. Otherwise, the Battery Pack can be
damaged, the Battery Pack can be damaged or its life expectancy
reduced. If the device causes any abnormal current to flow, it may
cause the Battery Pack to become hot, explode or ignite and
cause serious injury.
SHIFT
Caps
Fn
A Fn
B Fn
C Fn
D Fn
Launch of Application 5
Launch of Application 6
Launch of Application 7
Launch of Application 8
Fn
Fn
Fn
Fn
Fn
Fn
Fn
Fn
X
1
2
3
4
W
6
7
8
9
0
5
Fn
Fn
Fn
Fn
Fn
Fn
Fn
Fn
Fn
Scanner LED Indicator
Battery Cover
Battery Cover Latch
Stylus
Scan Window
End Cap
Hand Strap
Speaker
(Under the Hand Strap)
Left Scan Key
Ear Phone
Jack Connector
Right Scan Key
USB/Serial/
Synchronization Port
DC Power Jack
Numeric Key
Enter Key
F4 Key
F3 Key
Power Key
Fn Key
F2 Key
F1 Key
Charger LED Indicator
Navigation Key
None(Reserved for Customization)
LCD Touchscreen
Scan Key
Alpha Key
Scan Key
USB Client
Cable for Terminal
USB Client
Cable for Terminal
Battery Pack
(3000mAh)
Battery Pack
(3000mAh)
Ear/Microphone Set Ear/Microphone Set Power Adapter
(5VDC/2.6A)
Power Adapter
(5VDC/2.6A)
Power Cord Power Cord Stylus
CF Support Guide CF Support Guide
Note: availability depends of PHL-7200 model
GSM Earphone GSM Earphone
