Opticon OPH 1003 - Manual (Page 2)

Overview

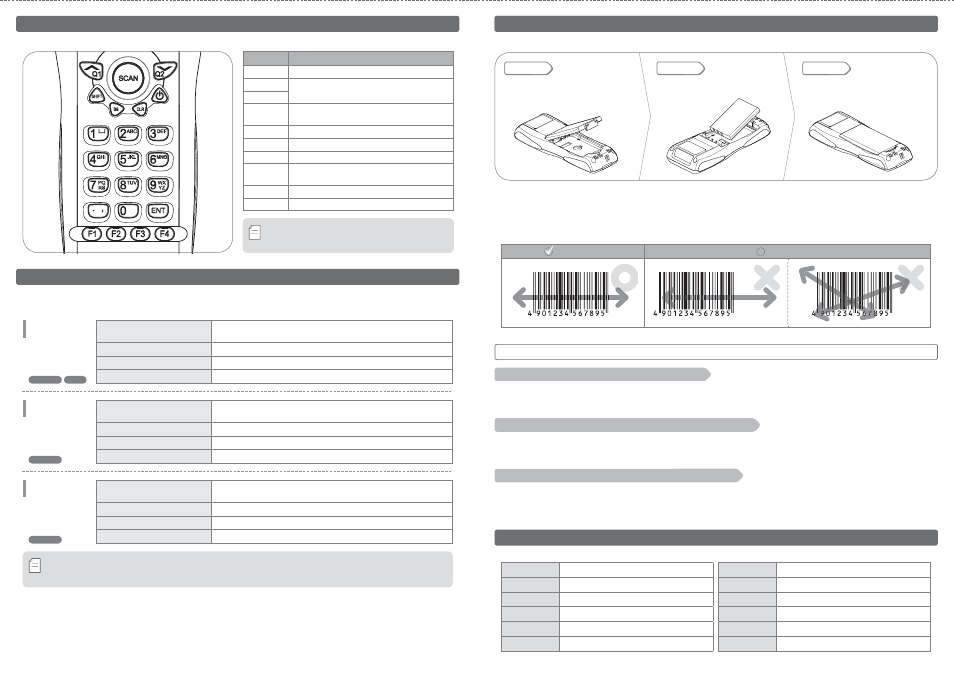

■ Key Layout
Key Function
SCAN Scans a barcode.
Q1 Navigate through the menu or toggle between options.
( These keys can be programmed suitable for user s application. ) Q2
SHIFT
Shifts from number input mode to alphabet
input mode and vice versa.
BS Deletes one letter before the cursor.
CLR Cancels an input.
POWER Turns the power ON and OFF.
0-9, .
10 numeric keys to input numbers, alphabets or
symbols.
ENT Determines the input.
F1-F4 4 function keys which can be programmed by a user.
ご使用にあたって
Trouble Shooting
The portable terminal does not get powered ON.
A. The battery level of the portable terminal may be extremely low or empty. Please try again after you charge
the portable terminal.
B. Check if the battery cover is closed tight.
The portable terminal does not read a specific type of barcode.
A. That specific type of barcode may not be supported by the portable terminal. Please confirm the specification manual
of the portable terminal for details of supported symbologies.
B. The specific type of barcode may not be enabled in the application. Change the settings in your application.
The portable terminal does not read a barcode smoothly.
A. The scanning performance of the portable terminal may decline due to inappropriate scan angle. Please adjust
the angle of the portable terminal and try again. Make sure that the barcode is within the width of the laser
aiming pattern.
Using the Portable Terminal
■ How to Insert or Exchange a Battery
STEP 3 STEP 2 STEP 1
Pleaseopenthebatterycoverbefore
inserting or exchanging a battery.
STEP 1
Make sure that the battery contacts are in
contact with the spring contacts of the
portable terminal.
STEP 2
Please close the battery cover.
STEP 3
Designated Cradles (Optional)*
We offer a series of communication and charging cradles with different communication methods.
Please select the most suitable cradle for the desired operation.
* Please refer to the specification manual or the instruction guide for details of designated cradles.
* A designated SIM card will be needed to use the CRD-1003 GSM cradle. Memo
CRD-1001
Communication &
Charging Cradle Communication Method
(Cradle to Host)
Communicates with the host via RS-232C or USB interface.
Size (H)70 × (W)68 × (D)96 mm Max
Weight 110g Max (excluding AC adapter and cable)
Charging Time 2 hours and 10 minutes RS-232C USB
* The layout of keys may differ depending on the
product specification. Memo
The Netherlands Opticon Sensors Europe B.V.
tel: +31 (0)23-5692700 / email: [email protected]
U.S.A. Opticon Inc.
tel: 800-636-0090 / email: [email protected]
France Opticon S.A.S.
tel: +33 (0)1-41461260 / email: [email protected]
Germany Opticon Sensoren GmbH
tel: +49 (0)6074-91890-0 / email: [email protected]
Italy Opticon s.r.l.
tel: +39 (0)051-6321800 / email: [email protected]
Spain Opticon Sensores S.L.
tel: +34 (0)902-747469 / email: [email protected]
Contact
Sweden Opticon Sensors Nordic AB
tel: +46 (0)8-58548560 / email: [email protected]
United Kingdom Opticon Limited
tel: +44 (0)1582-635100 / email: [email protected]
Taiwan Opticon Far Eastern Ltd.
tel: +886 2-27597444 / email: [email protected]
China Opticon Sensors Europe B.V., Shanghai Representative Office
tel: +86 21-64480881 / email: [email protected]
Australia Opticon Sensors Pty. Ltd.
tel: +61 (0)2-43402666 / email: [email protected]
Brazil Opticon Sensors Europe B.V., Latin American Office
tel: +55 11-5081 2088 / email: [email protected]
Please contact OPTICON or your local dealer.
More product details, additional support, and configuration options (from the Universal Menu Book) are available at www.opticon.com.
OPH10039062-0-00
Communication Method
(Cradle to Host)
Communicates via telephone line and connects to the Public
Switched Telephone Network (PSTN)
Size (H)70 × (W)68 × (D)96 mm Max
Weight 100g Max (excluding AC adapter and cable)
Charging Time 2 hours and 10 minutes MODEM
CRD-1002
Communication &
Charging Cradle
Communication Method
(Cradle to Host)
Communicates with the host via GSM (Global System for Mobile
Communications) Network.
Size (H)70 × (W)68 × (D)96 mm Max
Weight 115g Max (excluding AC adapter and cable)
Charging Time 3 hours GSM
CRD-1003
Communication &
Charging Cradle
Correct Incorrect
■ How to Scan a Barcode
Please refer to the following examples of a scanning operation.
Make sure that the barcode is within the width of the laser aiming pattern.
* When the cover is not closed correctly the portable terminal will not be turned ON.
