iConverter GX/TM2 Standalone Module QUICK START GUIDE
The iConverter ® GX/TM2 media converter and Network
Interface Device (NID) provides 10BASE-T, 100BASE-TX
or 1000BASE-T UTP to 1000BASE-X fiber media
conversion.
The GX/TM2 has built-in Operation, Administration and
Maintenance (OAM) functionality enabling the GX/TM2 to
operate as a managed demarcation point at the customer
premises and network edge, offering Quality of Service
capabilities.
The GX/TM2 can be managed using
NetOutlook ® SNMP Management Software, third-
party SNMP Client, Telnet or the Command Line Interface (CLI).
For the complete User Manual on this product, access Omnitron’s secure download
site and request access.
http://www.omnitron-systems.com/login.php
InSTAllATIon PRoCEDURE
1) Configure DIP-Switches
2) Install Standalone Module and Connect Cables
3) Configure Module via Command Line Interface
4) Verify Operation
1) ConFIGURE DIP-SwITChES
DIP-SwITCh BAnK 1
Sw1 - FIBER AUTo/MAnUAl nEGoTIATIon “An/MAn”
When this DIP-switch is in the DOWN “AN”
position (factory default), the fiber optic
port automatically determines the duplex
and pause modes of the connecting fiber
optic device. If the connecting fiber optic
device cannot provide the proper signal
to indicate its own mode of operation, the
DIP-switch should be set to the UP fiber
optic “Man” position. When Port 1 is in
1000X manual mode, no capabilities are
advertised.
NOTE: The fiber optic port of the GX/TM2 is always in Full-Duplex mode.
Sw2, Sw3, Sw4 AnD Sw5 - UTP ConTRol
DIP-switches SW2, SW3, SW4 and SW5 control the setting of the UTP port. See Figure
C for the UTP Configuration matrix.
NOTE: Refer to the table in Section 3.2.1.2 of the GX/TM2 User Manual for the
more detailed information.
Management Options iConverter, Serial Agent
Network Management
1: Chassis and Module Management
2: Set Module Name Preferences
Management Module Preferences
3: IP and Control Preferences
4: SNMP Preferences
5: Abandon Preference Changes
6: Save Preference Changes
7: Restore Factory Defaults
8: Restart Management Module
9: Other Networking Features
Management Module Maintenance
10: Firmware Update
11: Set Date/Time
IP Address = 192.168.1.220
Chassis Number = 1
Enter Choice, elp, Eit >
Figure D: Command Line Interface Menu Options
The CLI interface allows for the detailed configuration of the module. It is recommended
to configure the module with an IP address associated with the attached network.
Also, SNMP traphost address should be configured if the module is managed with
an SNMP-based Management System. See the GX/TM2 User Manual for complete
information.
4) VERIFy oPERATIon
Once the module has been
installed and configured per
steps 1 - 3, verify the module
is operational by viewing the
LED indicators.
The Power LED indicates
the module is receiving
power.
The Fiber Optic link LED
indicates the fiber optic
c o n n e c t i o n h a s b e e n
established.
The UTP link LED indicates
the module has established
a connection across its UTP
port.

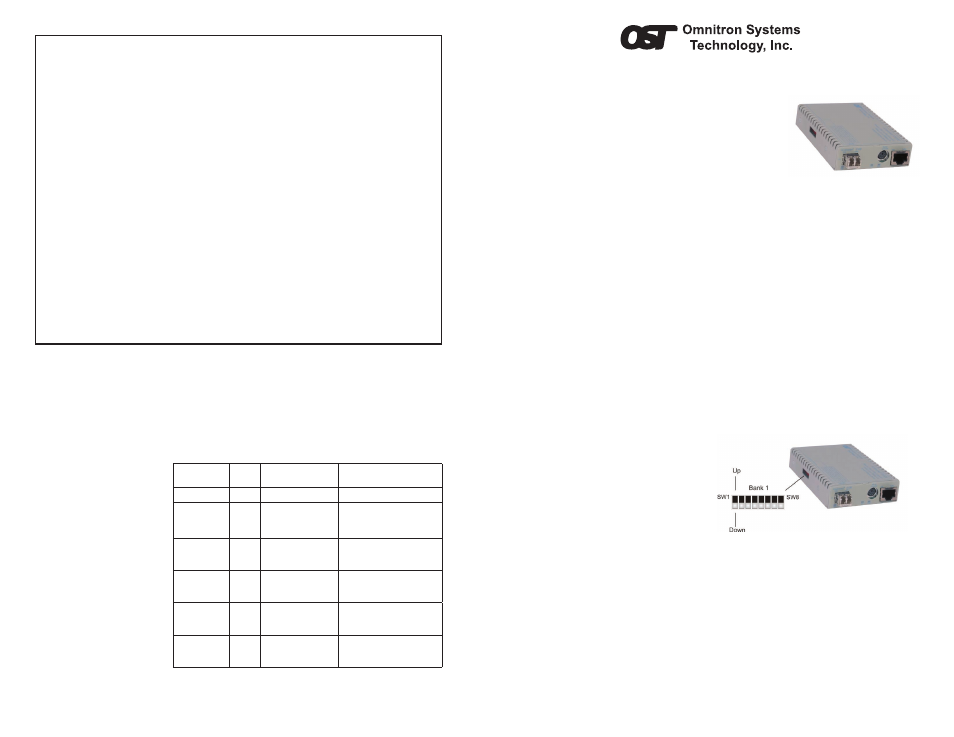

Figure A: DIP-Switch Location
Form 040-8920N-001C 9/10
Omnitron Systems Technology * 140 Technology Dr. #500 * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
LED Function
“legend”
Color Off State On / Blinking State
Power “Pwr” Green No Power On: Module has power
1000Mbps
Fiber Optics
“FO”
Green No Fiber Link
On: Fiber Link
Blinking: Fiber Data Activity
UTP port
100Mbps
“100”
Green
Not linked at
100Mbps
On: UTP linked at 100Mbps
Blinking: UTP Data Activity
UTP port
1000Mbps
“1000”
Green
Not linked at
1000Mbps
On: UTP linked at 1000Mbps
Blinking: UTP Data Activity
UTP port
10Mbps
“100” + “1000”
Green Not linked at 10Mbps
On: UTP linked at 10Mbps
Blinking: UTP Data Activity
UTP port
Full-Duplex
“FDX”
Green
Half-Duplex when
any UPT link is
active
On: Full-Duplex when any
UTP link is active
Figure E: LED Indicators
Page 1
