Omnitron Systems Technology iConverter 1U Rack-Mount Shelf User Manual
Page 2

The shelf has multiple mounting holes to accommodate the different module/chassis options.
Use the Mounting Hole Guide to determine the correct mounting hole for the each unit
installed on the shelf.

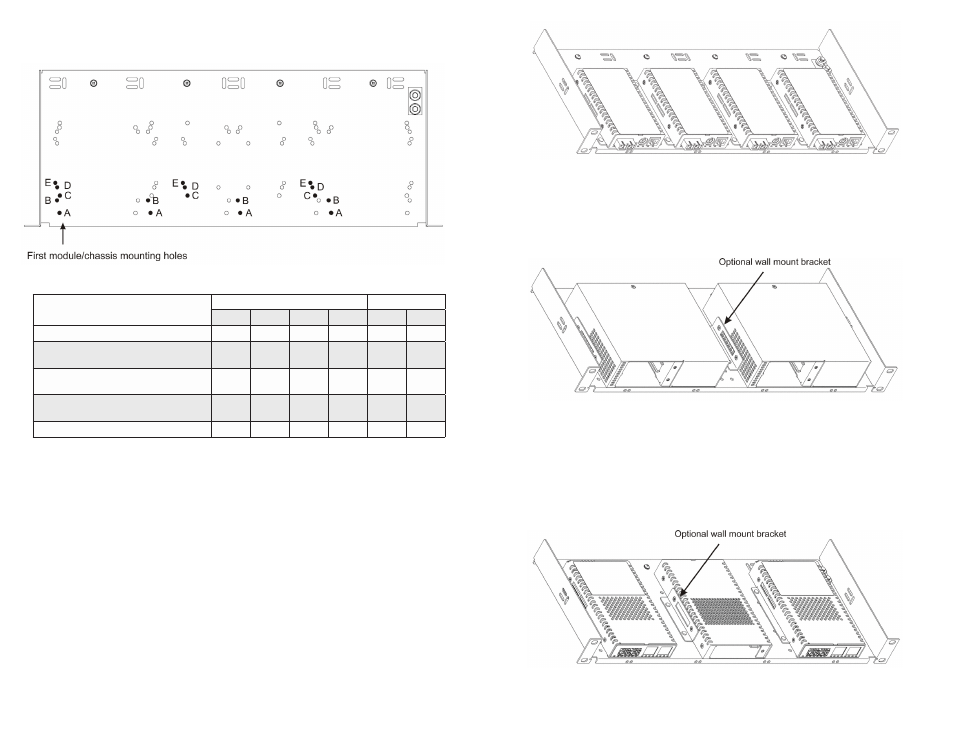

Shelf with Mounting Holes
Type
Mounting Holes
Rivet
A
B
C
D
Small
Large
iConverter
Standalone Wall Mount Module
x
x
iConverter
Standalone Tabletop Module
w/Wall Mount Brackets (4381)
x
x
iConverter
1-Module Chassis
w/Wall Mount Brackets (8249-0)
x
x
iConverter
2-Module Chassis
w/Wall Mount Brackets (8249-0)
x
x
OmniConverter
x
x
Mounting Hole and Rivet Guide
3) GENERAL INSTALLATION
Use the Mounting Hole Guide to determine the correct mounting holes for the module/chassis
type. Align the module to the appropriate mounting holes starting at the bottom left corner
of the shelf and moving left to right across the shelf. Use the appropriate plastic snap rivets
to mount the module to the shelf by pressing the rivets through the top of the wall mount
bracket until the rivet locks into place.
Remove any rubber feet before installing the module/chassis to the shelf.
Cable tie downs slots are cut into the shelf to secure the power cord to the shelf using a
various types of cable ties (not included).
Grounding screws are available to attach a ground wire between the module and the shelf.
4) INSTALLING
iConverter
STANDALONE WALL MOUNT MODULES TO THE SHELF
Up to four
iConverter
standalone wall mount or tabletop modules can be mounted on the
shelf.
In order to mount the
iConverter
tabletop module to the shelf, the optional wall mount brackets
(4381) must be installed on the module.
Page 2
Page 3
Shelf with
iConverter
Standalone Wall Mount Modules
5) INSTALLING
iConverter
2-MODULE CHASSIS TO THE SHELF
Up to
iConverter
two 2-Module chassis can be mounted on the shelf.
In order to mount the
iConverter
2-Module Chassis to the shelf, the optional wall mount
brackets (8249-0) must be installed on the chassis (not included).
Shelf with
iConverter
2-Module Chassis
NOTE: Mounting the 2-Module chassis to the shelf requires 2U rack spacing.
6) INSTALLING
OmniConverter
AND
iConverter
1-MODULE CHASSIS TO THE SHELF
Up to three
OmniConverter
media converters or
iConverter
1-Module Chassis can be
mounted on the shelf.
In order to mount the
iConverter
1-Module Chassis to the shelf, the optional wall mount
brackets (8249-0) must be installed on the chassis (not included).
Shelf with
OmniConverter
and
iConverter
1-Module Chassis
