3.0 SPECIFICATIONS
Model Number
8240-1 /
8241-1
8240-2 /
8241-2
8242-1 /
8243-1
8242-2 /
8243-2
8242-9 /
8243-9
Module Capacity
1
Power Supply Type
Wall Power
Supply
Tabletop
Power Supply
Tabletop Power
Supply
Tabletop
Power Supply
User Supplied
Power Supply
Connector
US Plug
IEC 320
Socket
US Power Cord
IEC 320
Socket
3 Position
Terminal
Power Requirements
120VAC / 60Hz
0.2A @
120VAC
100 to 240VAC
50 / 60Hz
0.2A @
120VAC
120VAC / 60Hz
1.0A @
120VAC
100 to 240VAC
50 / 60Hz
1.0A @
120VAC
20 to 60VDC*
0.6A Max
Dimensions
W: 3.8” x D: 5.5” x H: 1.0”
W: 3.8” x D: 6.0” x H: 1.0”
Weight
1.5 lbs.
Compliance
UL, CE, FCC Class A, NEBS Level 3
Temperature
Standard Operating
Wide Operating
0 to 50
o
C
-40 to 60
o
C
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
250,000
100,000
260,000
260,000
2,700,000
4.0 CUSTOMER SUPPORT INFORMATION
If you encounter problems while installing this product, contact Omnitron Technical
Support:
Phone:
(949) 250-6510
Fax:
(949) 250-6514
Address:
Omnitron Systems Technology, Inc.
38
Tesla
Irvine, CA 92618, USA
Email:
URL:
www.omnitron-systems.com
040-08240-001J 10/13
* Effective range is 18 to 60VDC when using a module without dying gasp support.
WARNING: Note the wire colors used in making the positive, negative and ground connections.
Use the same color assignment for the connection at the circuit breaker.
Connect the power wires to the circuit breaker and switch the circuit breaker ON. If any modules
are installed, their Power LED should indicate the presence of power.
If installing with the NEBS Mounting Kit for 8242-9 and 8243-9 models, secure the grounding
wire to the ground lug. See Figure 3 for the location of the grounding lug.

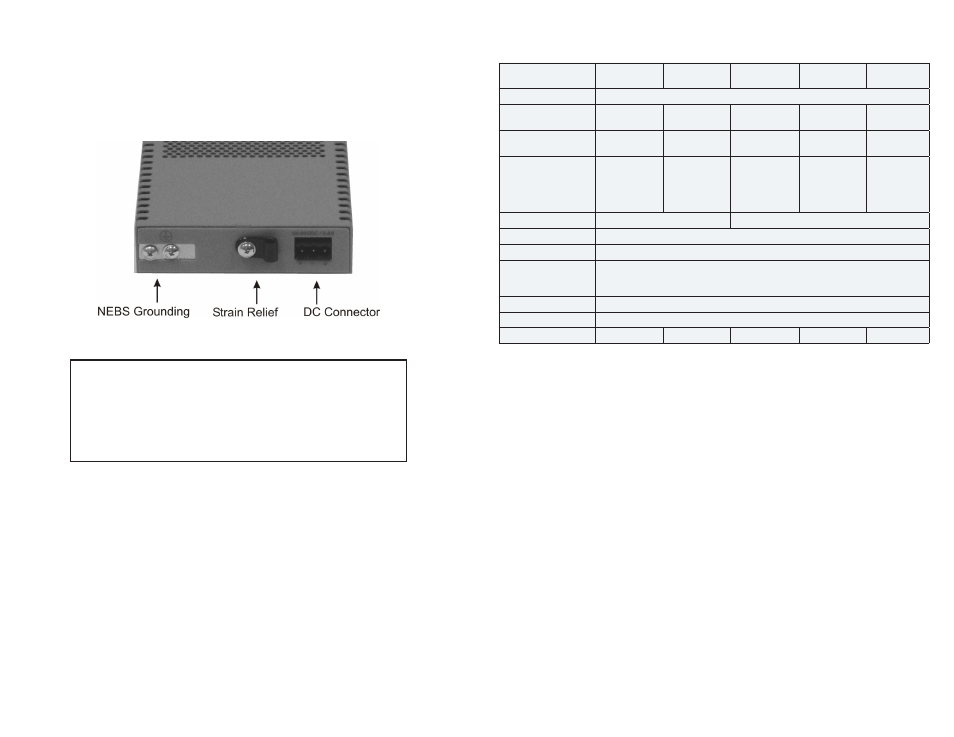

Fig. 3 Rear of 1-Module Power Chassis,
Models 8242-9 and 8243-9 with DC Power Connector
NEVER ATTEMPT TO OPEN THE CHASSIS OR
SERVICE THE POWER SUPPLY. OPENING THE
CHASSIS MAY CAUSE SERIOUS INJURY OR DEATH.
THERE ARE NO USER REPLACEABLE OR
SERVICEABLE PARTS IN THIS UNIT.
WARNING!!!
