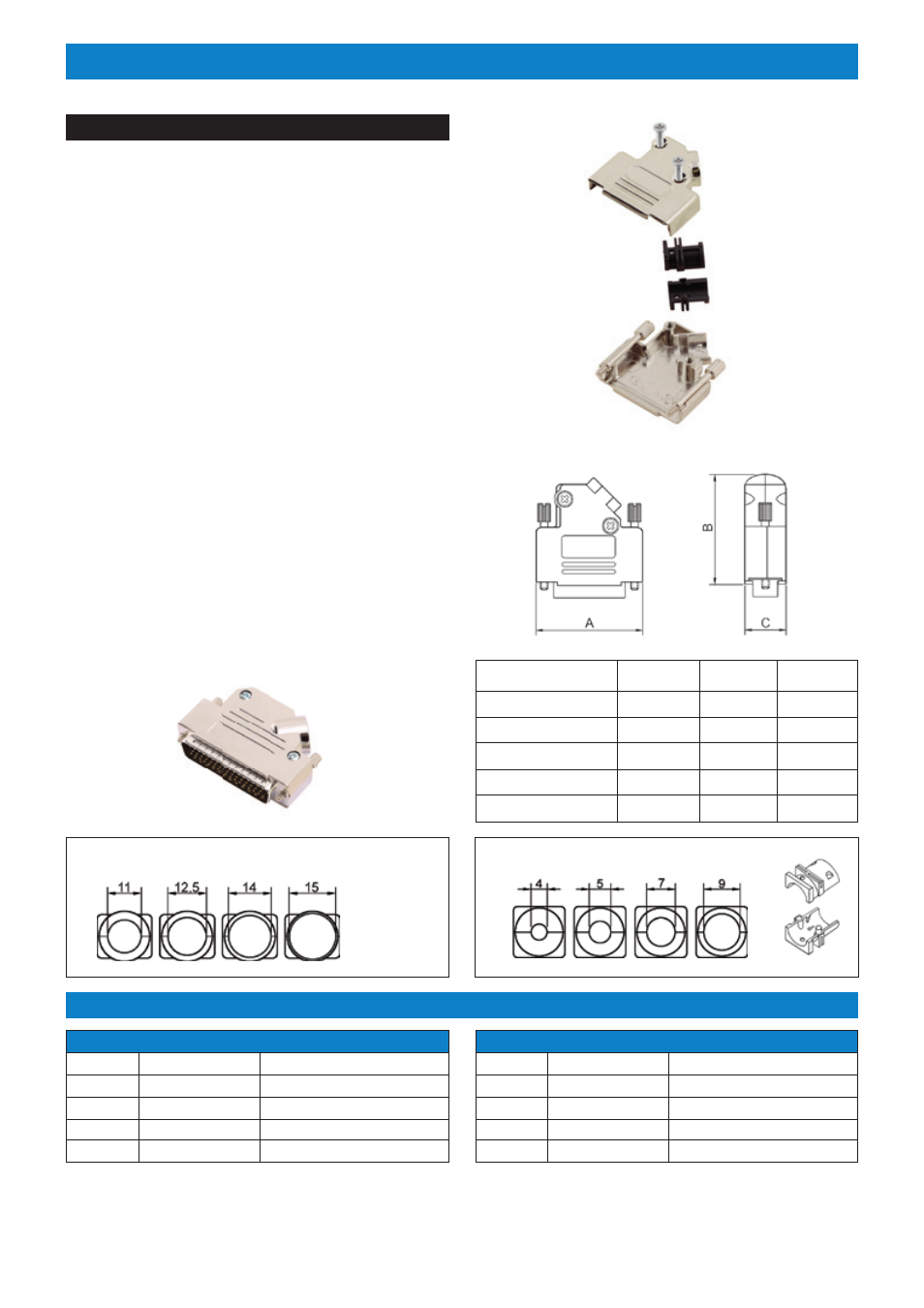

TECHNICAL SPECIFICATIONS
FULL METAL HOODS D45ZK-SERIES
Features:
● Available in sizes 9-15-25-37-50
● Excellent EMI Shielding
● Re-openable
● Strain relief inserts ensure a secure termination
● Metalized (RAHI) grommets on request. see page 186
NEW: Size 50 now available
Ordering information:
Material: Zinc, Nickel Plated
Operating Temperature: -40°C to +120°C
Cable Entry:
45° Side Entry
Thumbscrews: UNC 4-40 (Standard)
M2,5 or M3 on request
Cable O.D: Up to 13mm (Size 9-37)
Up to 17mm (Size 50)
Accessories: See page 190-194
Assembly Instruction: See page 200
Size: P/N - Kitted: Product Code:
9-way 6560-0106-11 D45ZK09-RA-K
15-way 6560-0106-12 D45ZK15-RA-K
25-way 6560-0106-13 D45ZK25-RA-K
37-way 6560-0106-14 D45ZK37-RA-K
50-way 6560-0106-15 D45ZK50-RA-K
Size: P/N - BULK: Product Code:
9-way 6561-0106-11 D45ZK09-RA
15-way 6561-0106-12 D45ZK15-RA
25-way 6561-0106-13 D45ZK25-RA
37-way 6561-0106-14 D45ZK37-RA
50-way 6561-0106-15 D45ZK50-RA
Size MHD45ZK Dim A Dim B Dim C
9-way 31,0 36,3 14,5
15-way 39,5 40,3 14,5
25-way 53,2 40,3 14,5
37-way 69,7 40,3 14,5
50-way 67,4 44,9 17,4
Grommet Sizes / D45ZK50: Grommet Sizes / D45ZK09-37:
