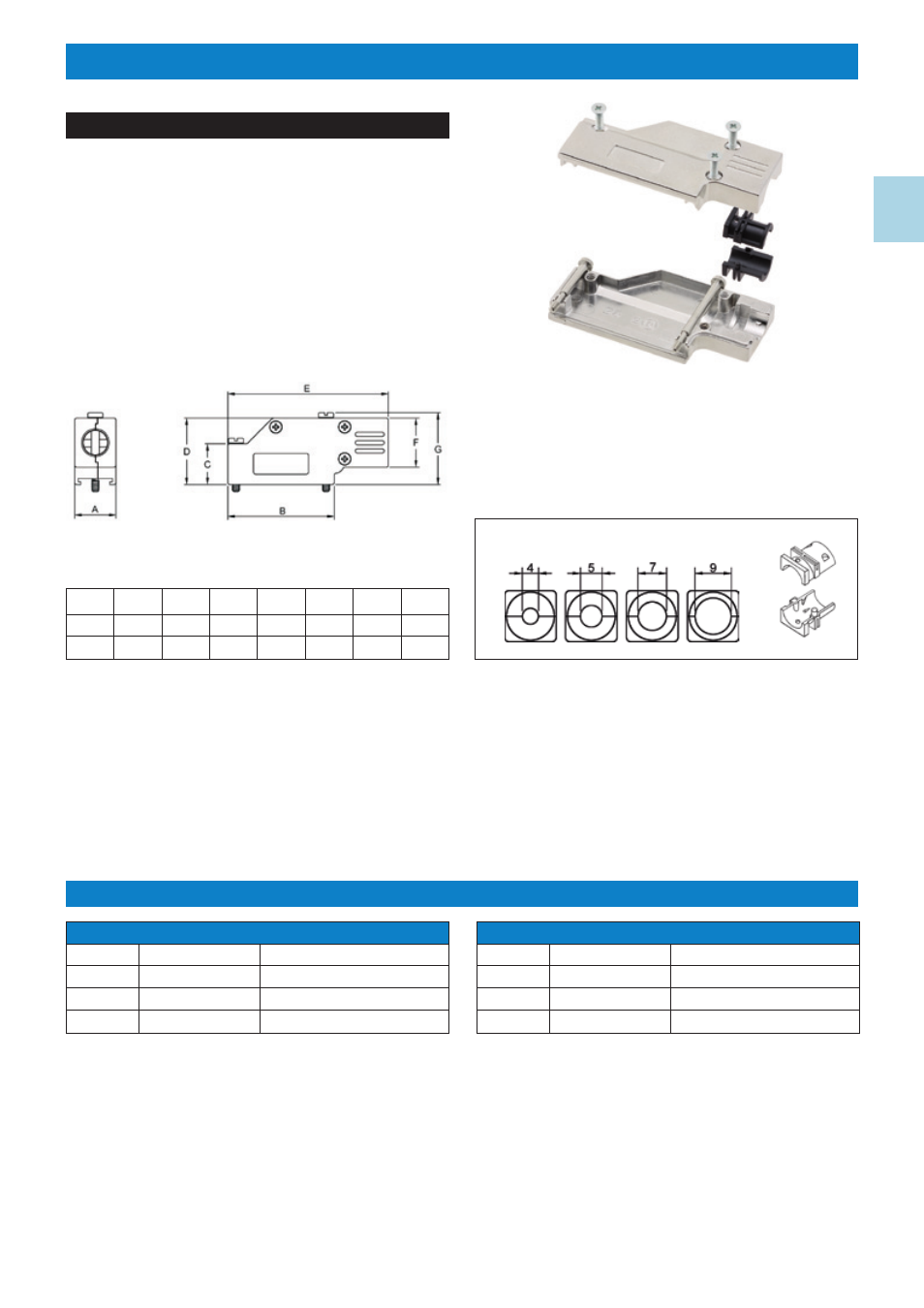

FULL METAL HOODS DCMR-SERIES
TECHNICAL SPECIFICATIONS
03
Material: Zinc, Nickel Plated
Operating Temperature: -40°C to +120°C
Cable Entry:
Side Entry
Jackscrews: UNC 4-40
Cable O.D: Up to 13mm
Type of grommets: 2 piece Plastic Ferrule Kit (RA)
Assembly Instruction: See page 200
Features:
● Available in sizes 9 and 25-way
Other sizes on request
● Suitable for any common Sub-D connector
● Re-Openable
● Metalized (RAHI) grommets on request - See page 186
Size A B C D E F G
9 15,0 30,8 15,0 24,4 50,8 18,0 26,2
25 15,8 53,3 23,1 34,5 72,4 24,3 36,6
Ordering information:
Size: P/N - Kitted: Product Code:
9-way 6560-0501-01 DCMR09-RA-K
15-way 6560-0501-02 On request
25-way 6560-0501-03 DCMR25-RA-K
37-way 6560-0501-04 On request
Size: P/N - BULK: Product Code:
9-way 6561-0501-01 DCMR09-RA
15-way 6561-0501-02 On request
25-way 6561-0501-03 DCMR25-RA
37-way 6561-0501-04 On request
Grommet Sizes - MHDCMR-RA:
