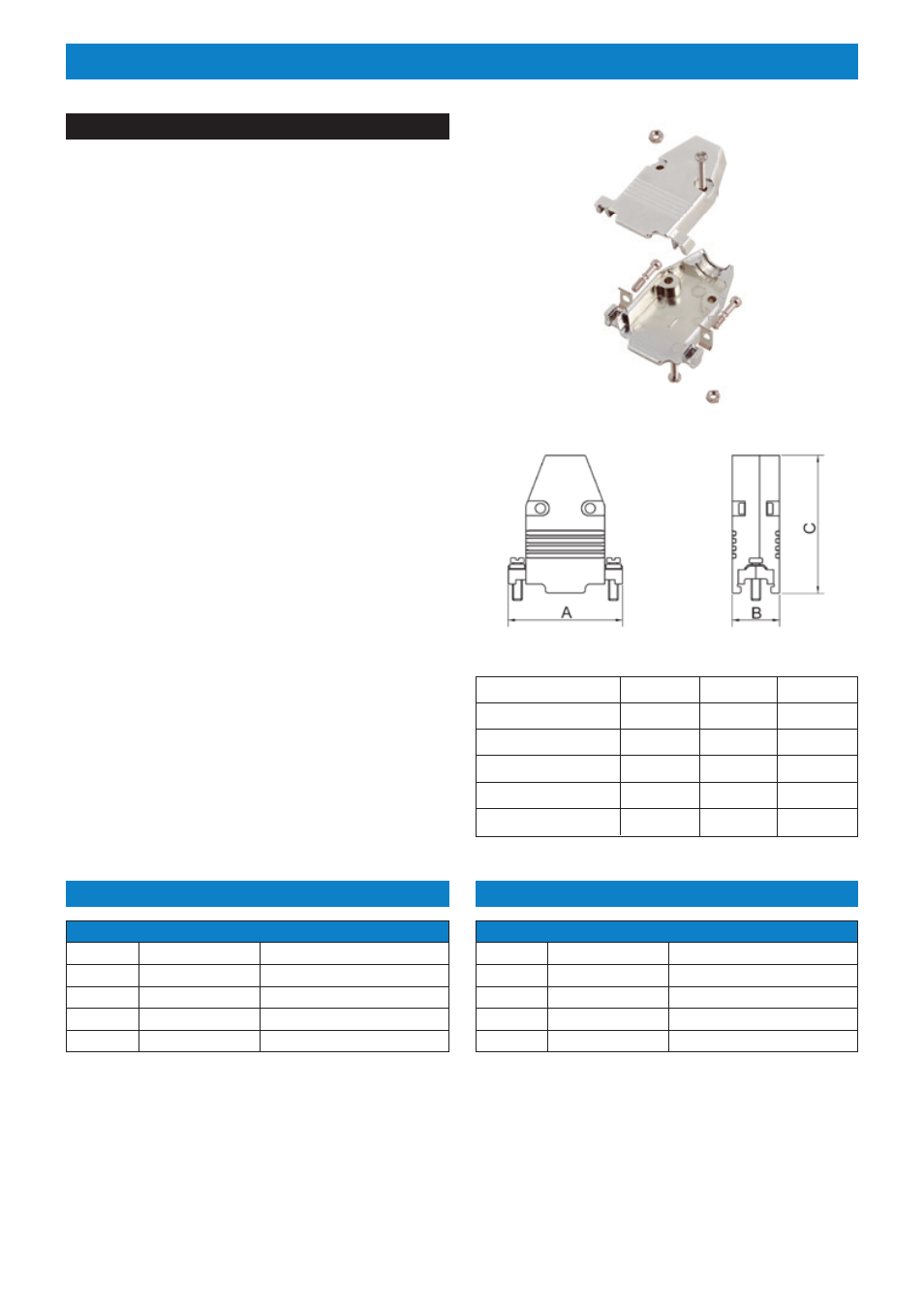

FULL METAL HOODS CCOV-ME-SERIES
TECHNICAL SPECIFICATIONS
Ordering information:
(Short Jackscrews)
Size: P/N - Kitted: Product Code:
9-way 2360-0106-01 CCOV 9-ME
15-way 2360-0106-02 CCOV15-ME
25-way 2360-0106-03 CCOV25-ME
37-way 2360-0106-04 CCOV37-ME
50-way 2360-0106-05 CCOV50-ME
Size MHCCOV Dim A Dim B Dim C
9-way 31,4 16,2 48,3
15-way 40,2 16,2 48,3
25-way 53,0 16,2 48,3
37-way 69,2 16,2 48,3
50-way 67,0 18,4 48,3
Features:
● Available in sizes 9, 15, 25, 37 and 50
● Suitable for any common Sub-D connector
● Re-Openable
● Available also with Long Jackscrews (MEL)
Material: Zinc, Nickel Plated
Operating Temperature: -40°C to +120°C
Cable Entry:
Top Entry
Cable O.D: Up to 16mm
Jackscrews: UNC 4-40
Short Jackscrews (ME-version)
Long Jackcsrews (ME L-version)
(Long Jackscrews)
Size: P/N - Kitted: Product Code:
9-way 2360-0106-11 CCOV 9-MEL
15-way 2360-0106-12 CCOV15-MEL
25-way 2360-0106-13 CCOV25-MEL
37-way 2360-0106-14 CCOV37-MEL
50-way 2360-0106-15 CCOV50-MEL
