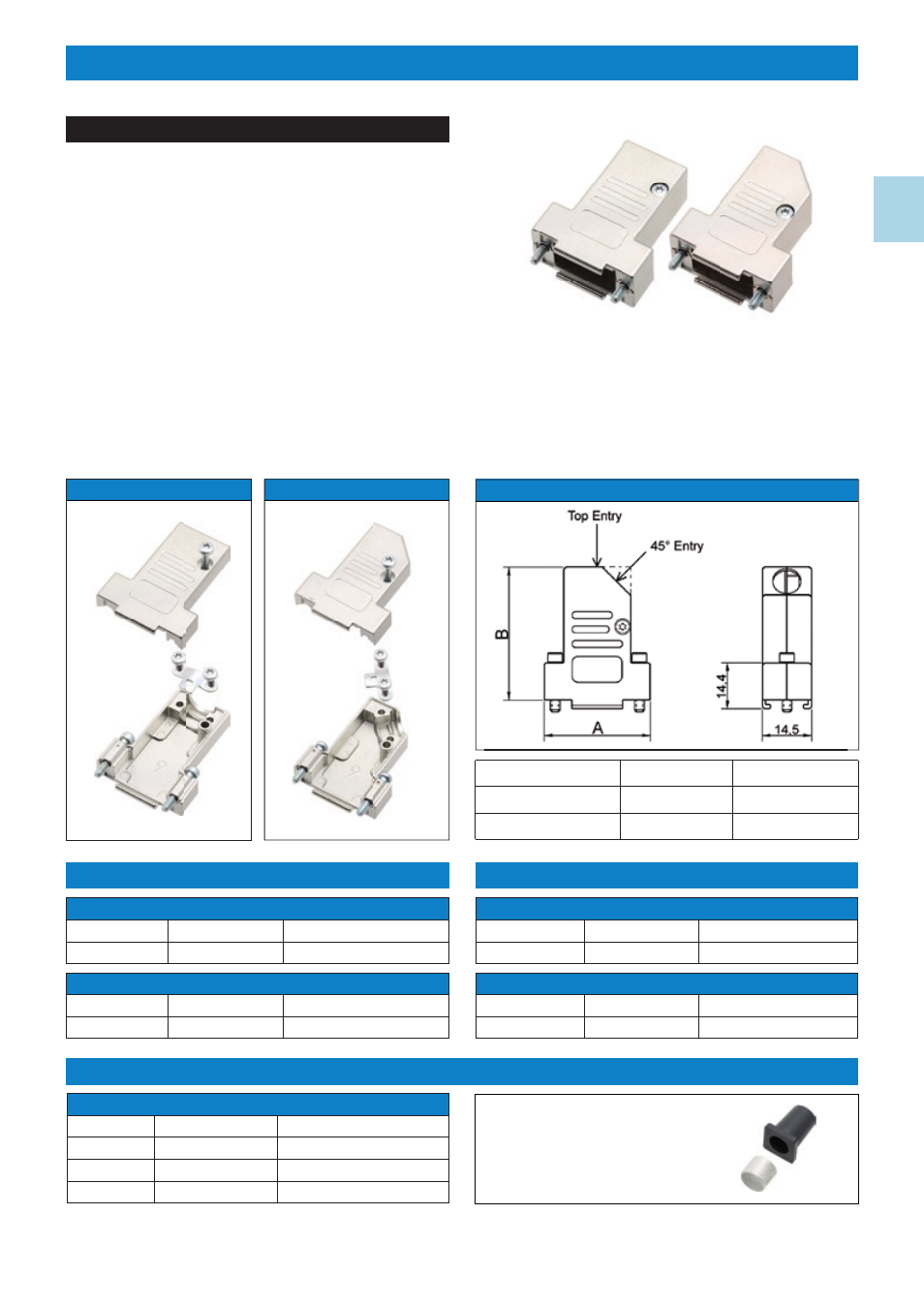

FULL METAL HOODS DTSL-SERIES
Features:
● Jackscrew Version
● Available in size 9 and 15*
● Excellent EMI Shielding
● Re-openable
* Size 15 in SIDE Entry Only
TECHNICAL SPECIFICATIONS
Jackscrew Version
Ordering information:
MHDTSL-JS-TOP
Size: P/N - Kitted: Product Code:
9-way-TOP 3560-0101-31 DTSL09-JS-T-K
MHDTSL-JS-SIDE
Size: P/N - Kitted: Product Code:
9-way-SIDE 3560-0201-31 DTSL09-JS-S-K
15-way-SIDE 3560-0201-32 DTSL15-JS-S-K
MHDTSL-JS-TOP MHDTSL-JS-SIDE
Material: Zinc, Nickel Plated
Operating Temperature: -40°C to +120°C
Cable Entry:
Top or Side Entry
Jackscrews: UNC 4-40 (Standard)
M2,5 or M3 on request
Cable O.D: Up to 11,5mm
Assembly Instruction: See page 204
37
03
Size MHDTSL Dim A Dim B
9-way 31,2 39,9
15-way* 39,5 41,5
* Size 15 - Side Entry Only
Size: P/N - BULK: Product Code:
9-way-TOP 3561-0101-31 DTSL09-JS-T-K
Size: P/N - BULK: Product Code:
9-way-SIDE 3561-0201-31 DTSL09-JS-S-K
15-way-SIDE 3561-0201-32 DTSL15-JS-S-K
Accessories:
Cable O.D: P/N - Kitted: Product Code:
4,5-5,5mm 3544-0001-01 DMZK09-4.5-D1
5,5-6,5mm 3544-0001-02 DMZK09-6.0-D1
6,5-8,0mm 3544-0001-03 DMZK09-7.0-D1
8,0-9,0mm 3544-0001-04 DMZK09-8.5-D1
Rubber Grommet +
Metal Support Ferrule Kit
