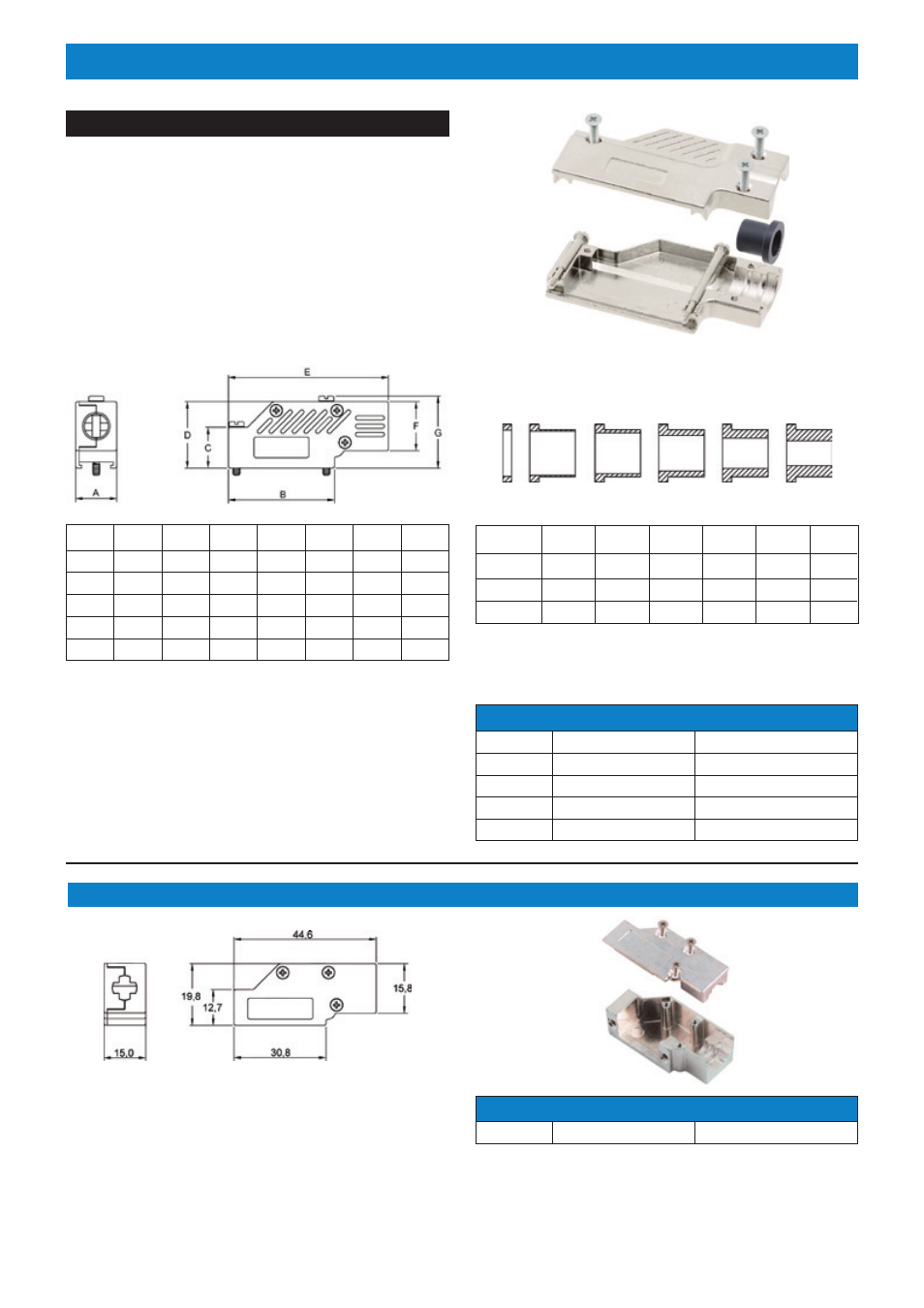

FULL METAL HOODS DCMR-SERIES
Features:
● Available in sizes 9, 15, 25 and 37-way
Size 50 on request
● Suitable for any common Sub-D connector
● Re-Openable
● Compression Inserts in Thermoplastic Compound
● Material as above ULP-version
● Available in size 9 only
TECHNICAL SPECIFICATIONS
Slide Lock Version:
Order codes:
9-way 1060-0135-01 DCMR9-ULP
15-way 1060-0135-02 DCMR15-ULP
25-way 1060-0135-03 DCMR25-ULP
37-way 1060-0135-04 DCMR37-ULP
50-way 1060-0135-05 DCMR50-ULP
Size A B C D E F G
9 15,0 30,8 15,0 24,4 50,8 18,0 26,2
15 15,2 39,4 15,0 24,4 59,3 18,0 26,4
25 15,8 53,3 23,1 34,5 72,4 24,3 35,0
37 15,8 69,9 23,1 40,9 89,7 30,7 42,9
50 18,0 67,1
- 40,9 86,9 30,7 42,9
Order codes:
9-way 1060-0135-11 MHDCMR09-SL
Material: Zinc, Nickel Plated
Operating Temperature: -25°C to +90°C
Cable Entry:
Side Entry
Jackscrews: UNC 4-40
Cable O.D: Up to 18,4mm
Type of grommets: Compression Inserts
A B C D E F
Compression Inserts - Inner Diameters:
Size A B C D E F
9/15 8,10 8,00 7,25 6,50 5,30 -
25 11,40 10,40 9,40 7,60 5,80 -
37/50 16,50 15,75 14,50 12,70 10,80 8,90
