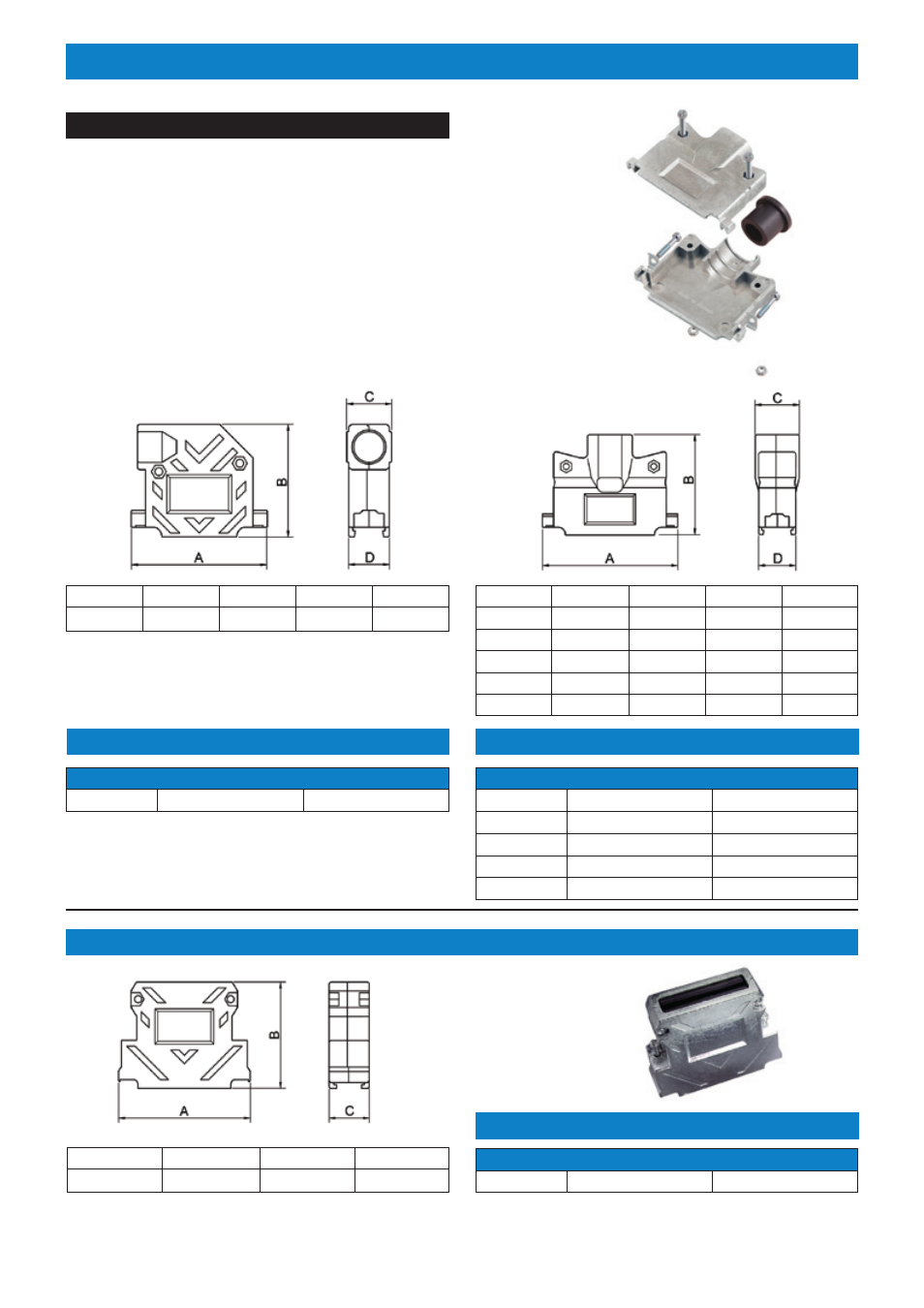

FULL METAL HOODS C88E000-SERIES
Size Dim A Dim B Dim C Dim D
9 31,1 37,2 15,7 15,7
15 39,1 40,6 15,7 15,7
25 53,1 39,1 17,5 15,7
37 66,6 45,7 21,9 18,5
50 66,6 45,7 21,9 18,5
Size: P/N - Kitted: Product Code:
9-way 1060-0205-01 C88E000209
15-way 1060-0205-02 C88E000211
25-way 1060-0205-03 C88E000204
37-way 1060-0205-04 C88E000210
50-way 1060-0205-05 C88E000212
Ordering information:
Side Entry
Material: Zinc, Nickel Plated
Operating Temperature: -25°C to +90°C
Cable Entry:
Side or Top Entry
Flat Cable Entry
Jackscrews: UNC 4-40
TECHNICAL SPECIFICATIONS
Size Dim A Dim B Dim C Dim D
25 53,1 43,6 18,0 16,3
Side Entry Top Entry
Size: P/N - Kitted: Product Code:
25-way 1060-0206-03 C88E420000
Top Entry
Ordering information:
MHC88E - Flat Cable Entry Hood
Size: P/N - Kitted: Product Code:
25-way 1060-0207-03 C88E520000
Size: Dim A Dim B Dim C
Flat - 25-way 55,5 45,7 17,5
