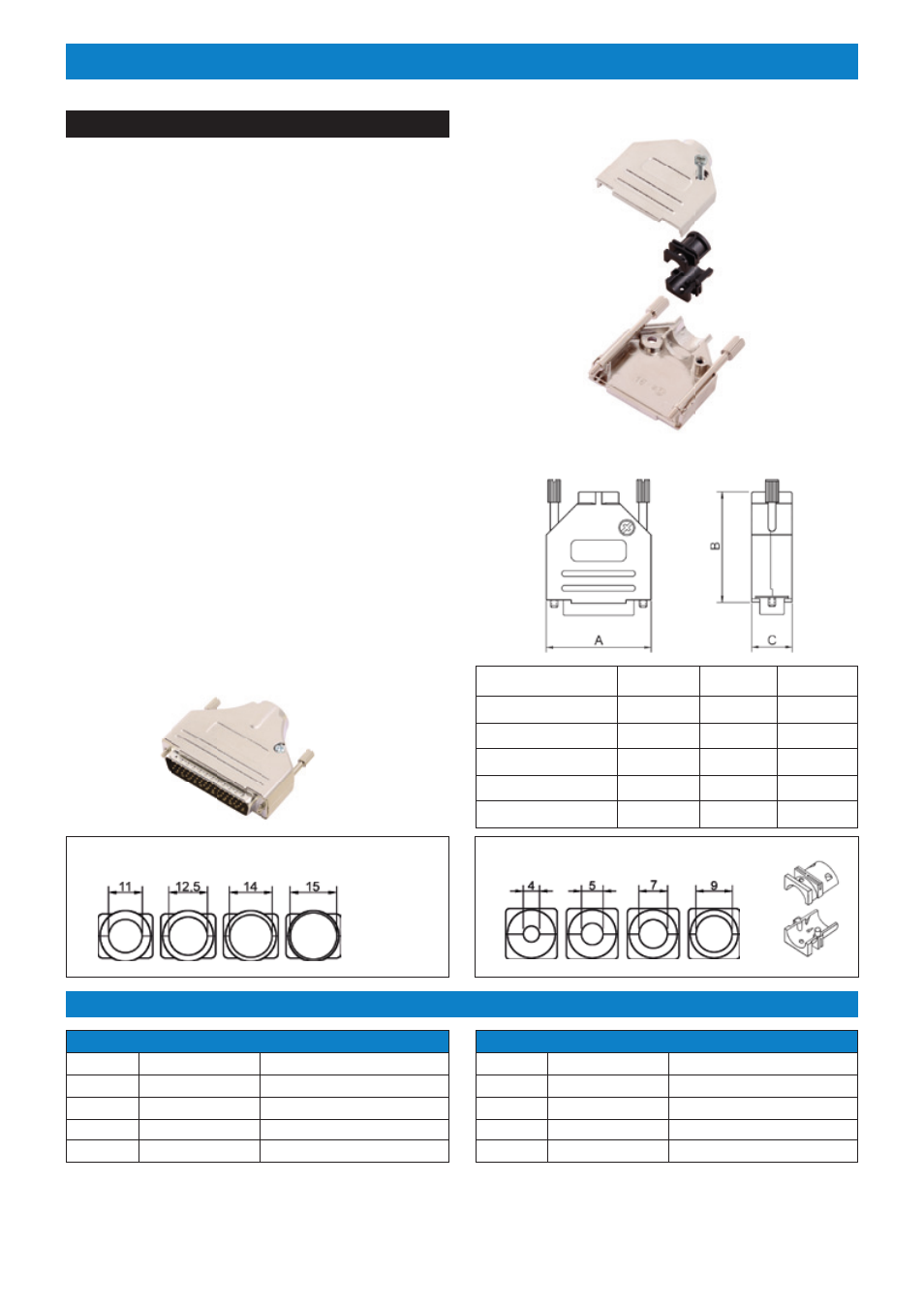

Northern Connectors D-Sub Full Metal Hoods - Manual (Page 3)

26 26 2
Features:
● Available in sizes 9-15-25-37-50*
● Excellent EMI Shielding
● Re-openable
● Strain relief inserts ensure a secure termination
● Full Metal Jackscrew as standard.
● Also available with Metalized (RAHI) grommets
See page 28
NEW: Size 50 now available
FULL METAL HOODS DTZK-RA-SERIES
Ordering information:
Material: Zinc, Nickel Plated
Operating Temperature: -40°C to +120°C
Cable Entry:
Top Entry
Thumbscrews: UNC 4-40 (Standard)
M2,5 or M3 on request
Cable O.D: Up to 13mm (Size 9-37)
Up to 17mm (Size 50)
Accessories: See page 190-194
Assembly Instruction: See page 200
TECHNICAL SPECIFICATIONS
Size: P/N - Kitted: Product Code:
9-way 6560-0105-01 DTZK09-RA-K
15-way 6560-0105-02 DTZK15-RA-K
25-way 6560-0105-03 DTZK25-RA-K
37-way 6560-0105-04 DTZK37-RA-K
50-way 6560-0105-05 DTZK50-RA-K
Size: P/N - BULK: Product Code:
9-way 6561-0105-01 DTZK09-RA
15-way 6561-0105-02 DTZK15-RA
25-way 6561-0105-03 DTZK25-RA
37-way 6561-0105-04 DTZK37-RA
50-way 6561-0105-05 DTZK50-RA
Size MHDTZK Dim A Dim B Dim C
9-way 31,0 39,5 15,0
15-way 39,5 41,5 15,0
25-way 53,5 48,5 15,0
37-way 71,0 53,0 15,0
50-way 67,5 54,0 18,7
Grommet Sizes / DTZK50: Grommet Sizes / DTZK09-37:
