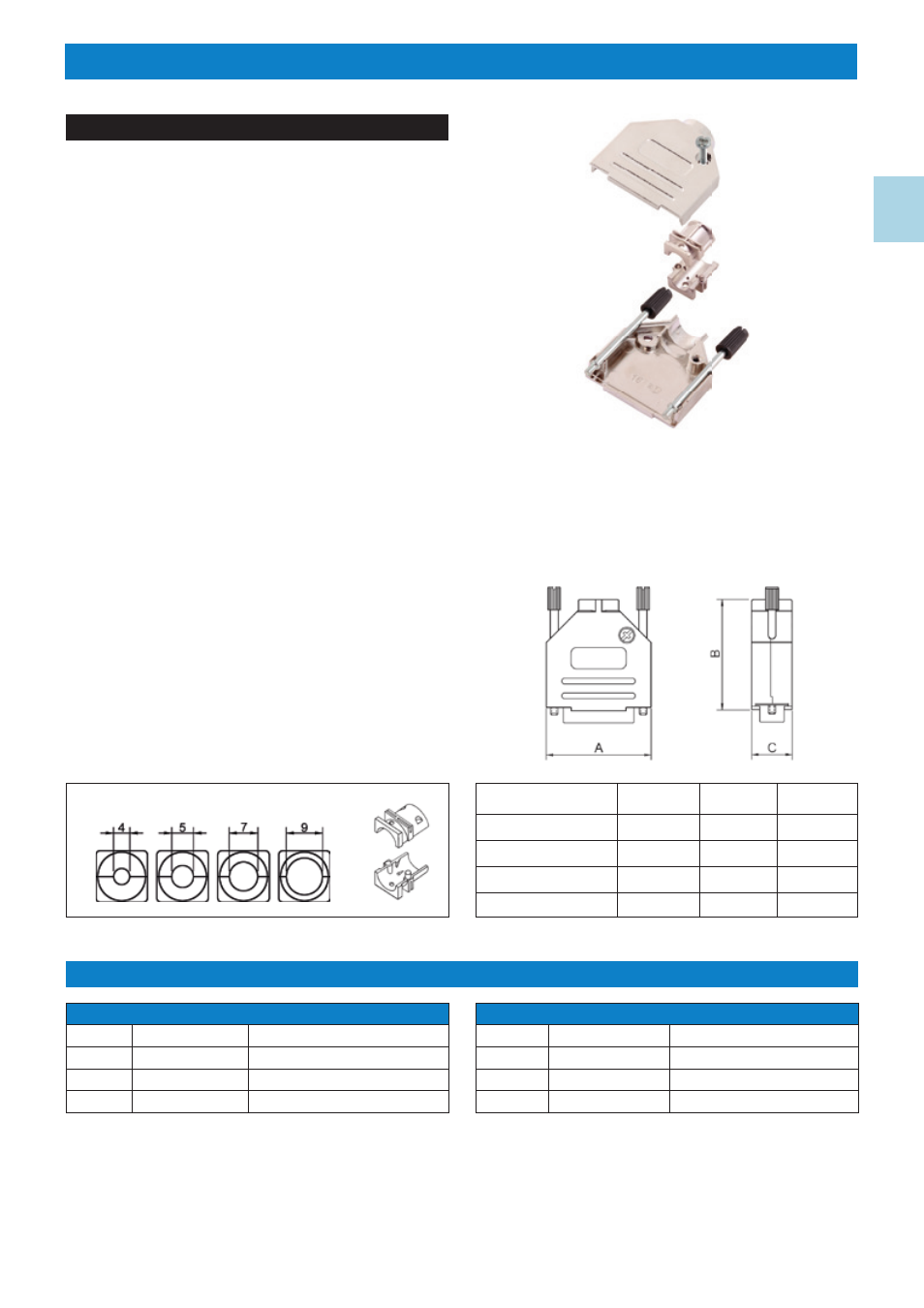

FULL METAL HOODS DTZK-SERIES
TECHNICAL SPECIFICATIONS
Ordering information:
Size: P/N - Kitted: Product Code:
9-way 6560-3705-01 DTZK09-RAHI-PCBK-K
15-way 6560-3705-02 DTZK15-RAHI-PCBK-K
25-way 6560-3705-03 DTZK25-RAHI-PCBK-K
37-way 6560-3705-04 DTZK37-RAHI-PCBK-K
Size: P/N - BULK: Product Code:
9-way 6561-3705-01 DTZK09-RAHI-PCBK
15-way 6561-3705-02 DTZK15-RAHI-PCBK
25-way 6561-3705-03 DTZK25-RAHI-PCBK
37-way 6561-3705-04 DTZK37-RAHI-PCBK
Material: Zinc, Nickel Plated
Operating Temperature: -40°C to +120°C
Cable Entry:
Top Entry
Thumbscrews: UNC 4-40 (Standard)
M2,5 or M3 on request
Cable O.D: Up to 13mm
Accessories: See page 190-194
Assembly Instruction: See page 200
03
Features:
● Available in sizes 9-15-25-37
● Excellent EMI Shielding
● Re-openable
● Strain relief inserts ensure a secure termination
● Jackscrew with Black Plastic Knob as standard.
Grey Plastic Knob available on Request.
● Available with Standard (RA) grommets - See page 27
Grommet Sizes / DTZK09-37: Size MHDTZK Dim A Dim B Dim C
9-way 31,0 39,5 15,0
15-way 39,5 41,5 15,0
25-way 53,5 48,5 15,0
37-way 71,0 53,0 15,0
